Vacuum table 10040 GAL
Completely made of solid cast aluminum, GAL vacuum tables offer the best prerequisites for heavy machining of light metals and steels. The solid construction has a vibration-damping effect. Since GAL vacuum tables are made entirely of aluminum, they are also coolant compatible. In addition, an M6 threaded grid at a distance of 100 x 100 mm is incorporated into the surface and thus enables the attachment of parts such as clamps, vises or stops.
Technical data:
- Material: Aluminium
- Measure: 1016 x 416 mm
- Clamping area: 1000 x 400
- Height: 26 mm
- Drillings: 0,3 mm
- Grid: 10 x 10 mm
- M6 Thread grid: 100 x 100 mm
- Connections: 12 mm
- Vacuum chambers: 4

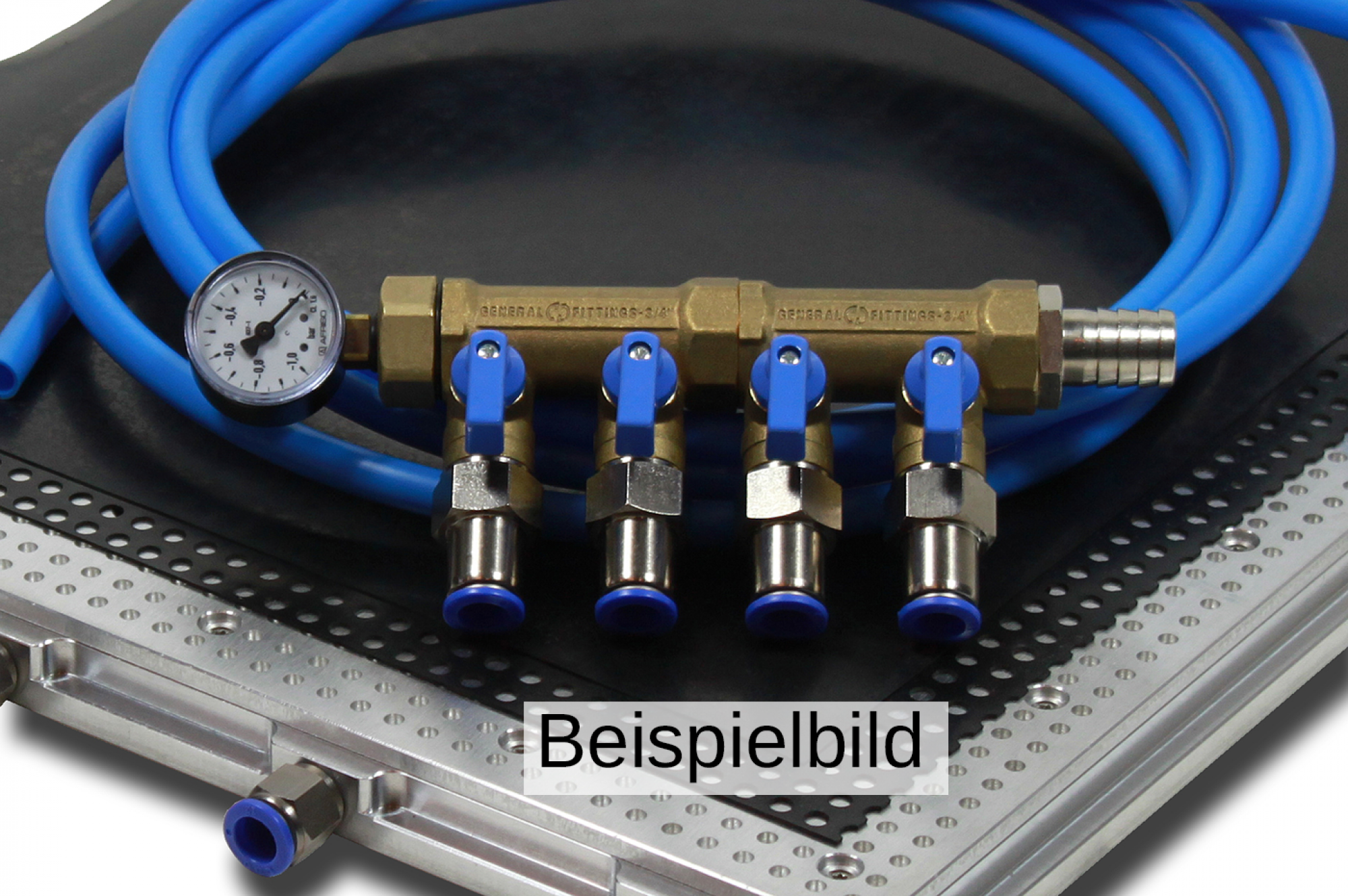

Included in delivery:
- 1 pcs Vacuum table VT10040 GAL
- 1 pcs Manifold
- 1 pcs hole rubber mat
- 1 pcs cover mat
- 1 pcs conection hose
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
