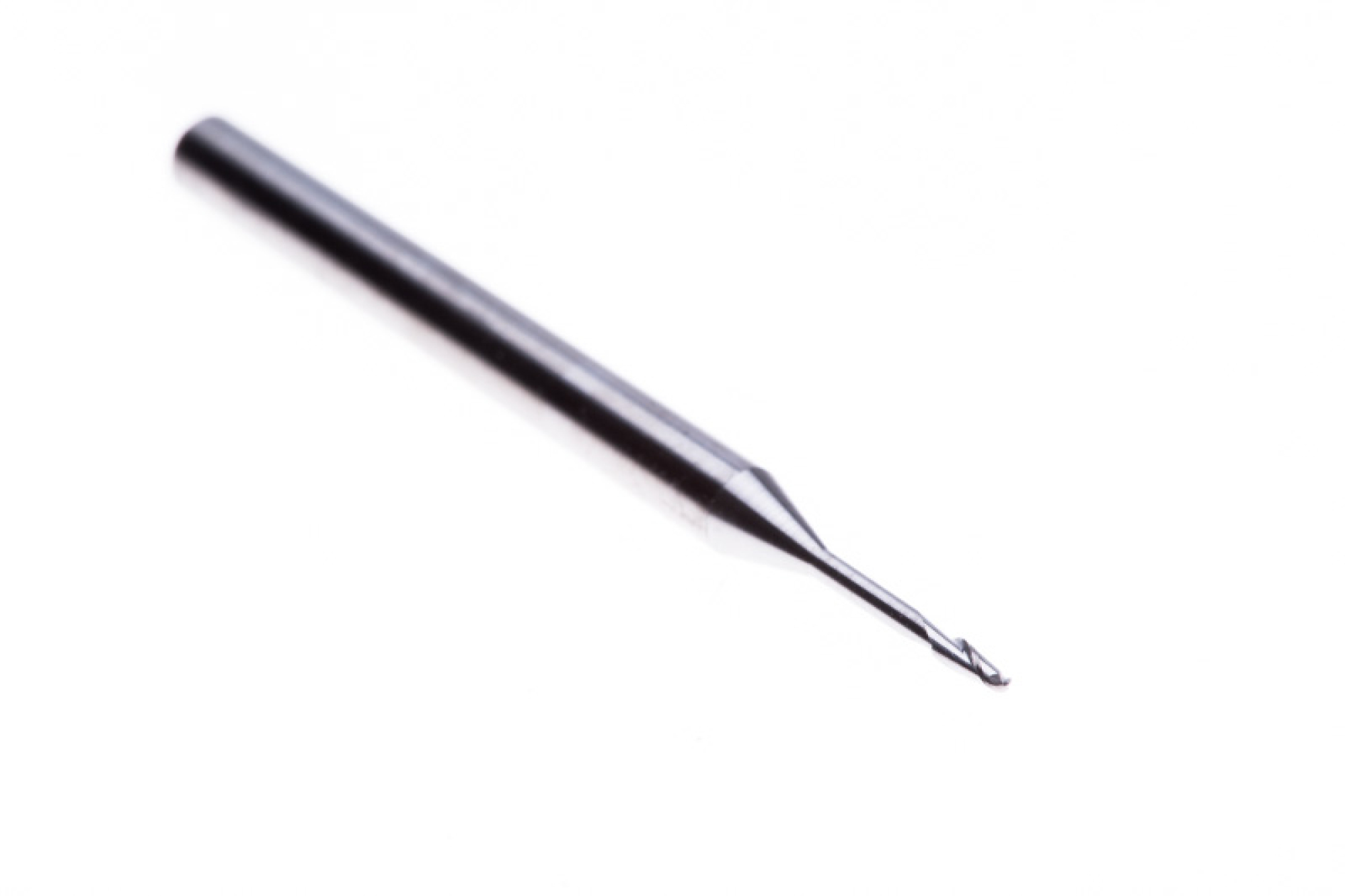

VHM-Radius bit 3D Ø 2 mm
Our new generation of ball nose cutters. Best quality
- made in Germany - at a very competitive price.
Speciality: The long reliefed shank enables cutting at big depth.

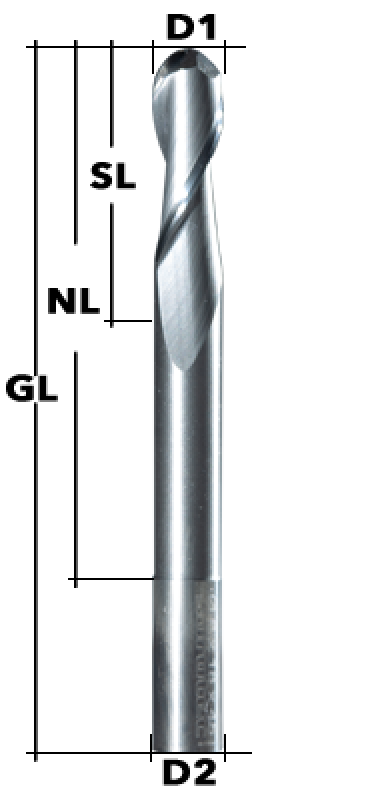

Technical Specifications:
- VHM Radius Mill Ø 2 mm
- Z: 2 Flute
- D2 (Shank): 3 mm
- SL (Spiral length): 8 mm
- NL (Usable Length): 20 mm
- GL (Overall length): 50 mm
Applications:
- Universal usability
- Wood
- Brass
- Aluminum
- Non-ferrous metals
- Steel
Notes:
- Extra long version
