Triple BEAST

Product No.:
EES.TBEAST1
Shippingtime:
immediately available, 2-3 Days immediately available, 2-3 Days (abroad may vary)
314,00 EUR
incl. 19% tax excl. Shipping costs

Add to cart
Weight: 0,53 kg per

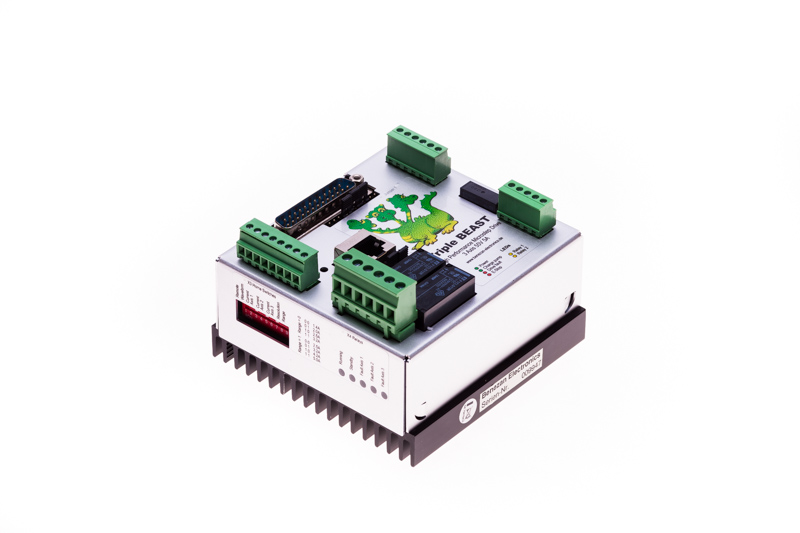

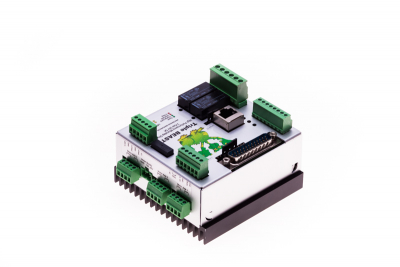

All-In-One Breakoutboard and three Stepper drives in a compact housing of only 100 x 102 x 55mm

  • Runs with Step/Dir driven Software like fpr example USB-CNC, Mach3, EMC², CNCProfi, WinPCNC
  • Quick and easy mounting on a rail, Cabling within minutes ready to run
  • For 2-Phase-Stepper Motors from 1,4 to  5A, 42 bis 86mm (NEMA17 to 34)
  • Power supply 24 bis 55V. Only one Power supply necessary
  • Integrated protection against short circuit, overtemperature and overvoltage caused through braking energy
  • Very quiet operation with sinusoidal waveform
  • No compromise between vibration and possible speed needed, In 1/5 or 1/10 Micro Stepping the motors run as smoothly as with 1/64 microstepping or better. This means that no high frequencies are necessary
  • Made in Germany. Complete development and production in Germany
  • Connection option for fourth axis with an external Stepping drive.
  • Two relays for switching loads (spindle motor, coolant, vacuum, etc.)
  • 4 inputs for reference switches (mechanical or inductive), 1 Emergency stop
  • Watchdog (charge pump) prevents movements of machine during booting of PC or when software not active.
  • 0. .10 V analog output for speed control (frequency converter)
  • high efficiency, minimal warming of drives and motors

Important:
For the operation of the current Version of the Triple Beast with EDINGCNC an adaptation board is needed. These can be found here.

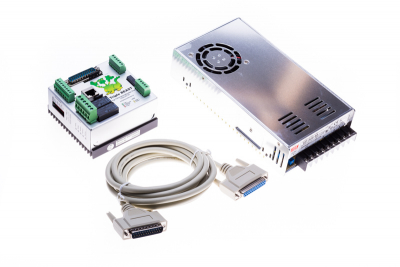

Also available as a cost efficient DriveSet
