Tool changer V02 for Suhner 1050 UAD25RF

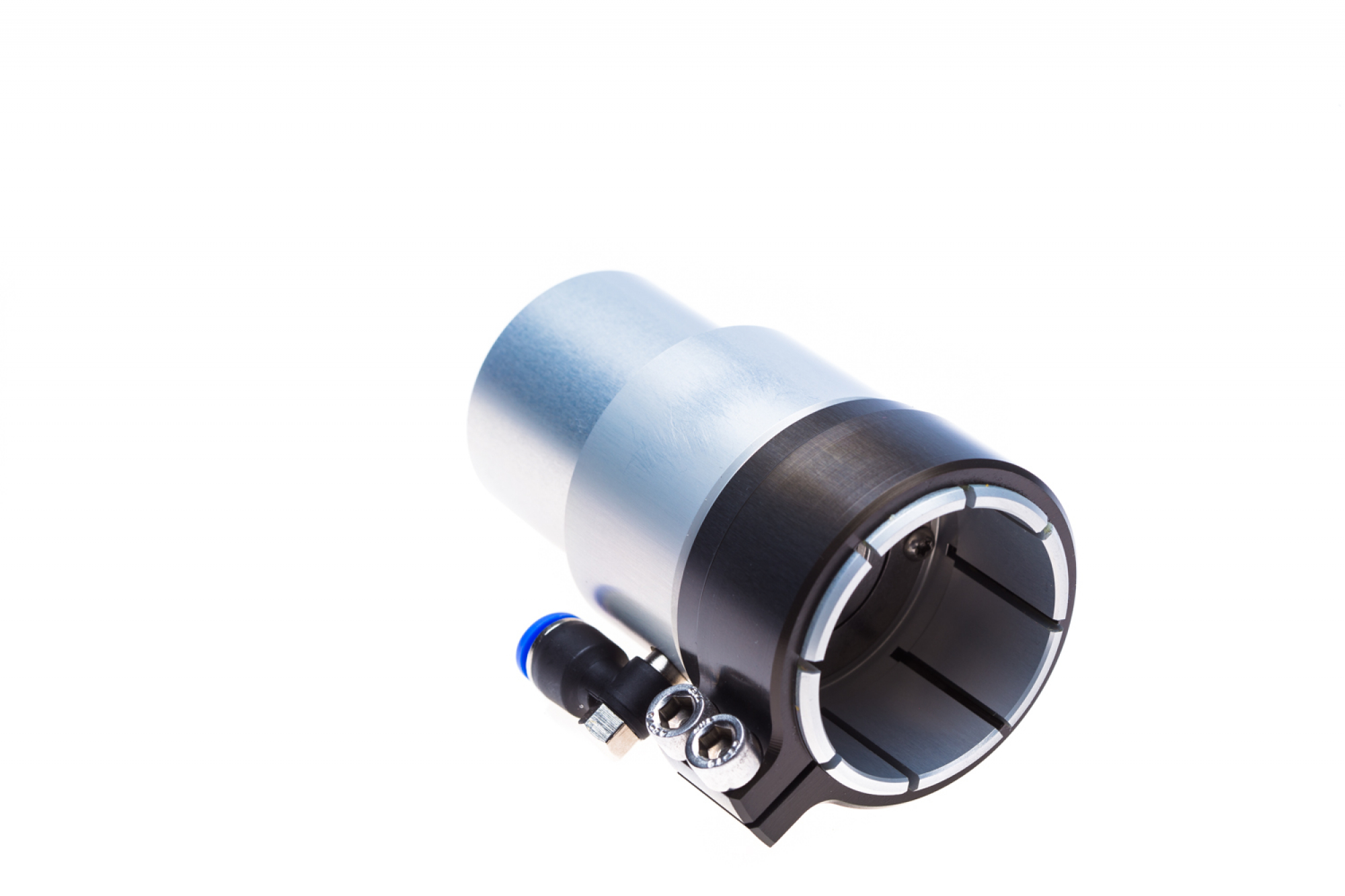

This spindle is suitable for the Suhner UAD25RF 1050W and UAK 30RF 1530W. The assembly is quick and very simple. It is screwed onto the spindle shaft and attached to the spindle. Then you can fasten the "tool change spindle" just like the original Suhner with the Euro 43 mm mount.
Function:
The tool sits in a SK tool holder (in a ER11 collet). The SK15 Holder is held with spring force in the cone. A pneumatic cylinder (air port 1) presses the tool holder out of the cone.
Specifications:
- Aluminum case 7075, hard-anodized
- Stainless steel spindle
- Double ball bearings
- Concentricity of 0.01 mm
- Weight 0.9 kg
- Tensile force of the spring 25 kg
- Uses SK Toolholders for ER11 collets (1 ... 8 mm)
- Operating pressure 8 bar
- pneumatic connector for 4 mm tubing
- Fastening with 43 mm mount
- Suitable for speeds up to 28.000 rpm
- The spindle is 55 mm longer through the tool changer
- Diameter of tool changer: 59 mm
Delivery Content:

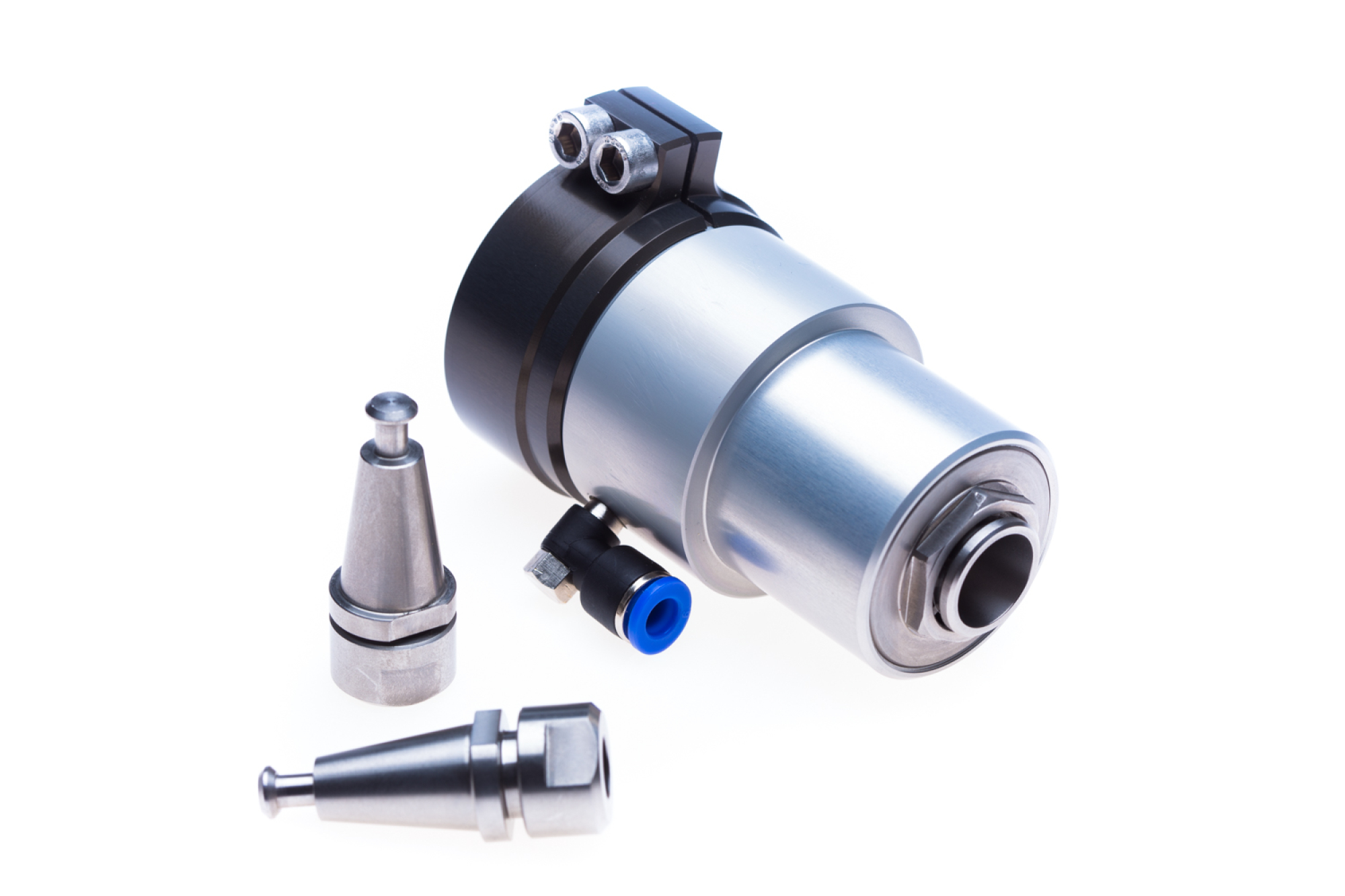

Tool changer fitting Suhner UAD25RF 1050W and UAK 30RF 1530W incl. 2 SK tool holders, quick installation manual
The shown collet and the spindle itself is not included.
To operate the tool changer you will need 2 Electro-pneumatic valves 3 / 2 to control the air
for switching and for the blow-out
Product Information from the manufacturer:
Please notice that our products are constructed only for the use in the field of hobby-milling/drilling/etc. or for the production of single parts or small serial production, but not for the use in the field of professional long-term usage or industrial production!
You can use only original tool holders with this spindel.
