T-slot plate PRO for Stepcraft 840 D2
T-slot plate PRO for Stepcraft 840 D2

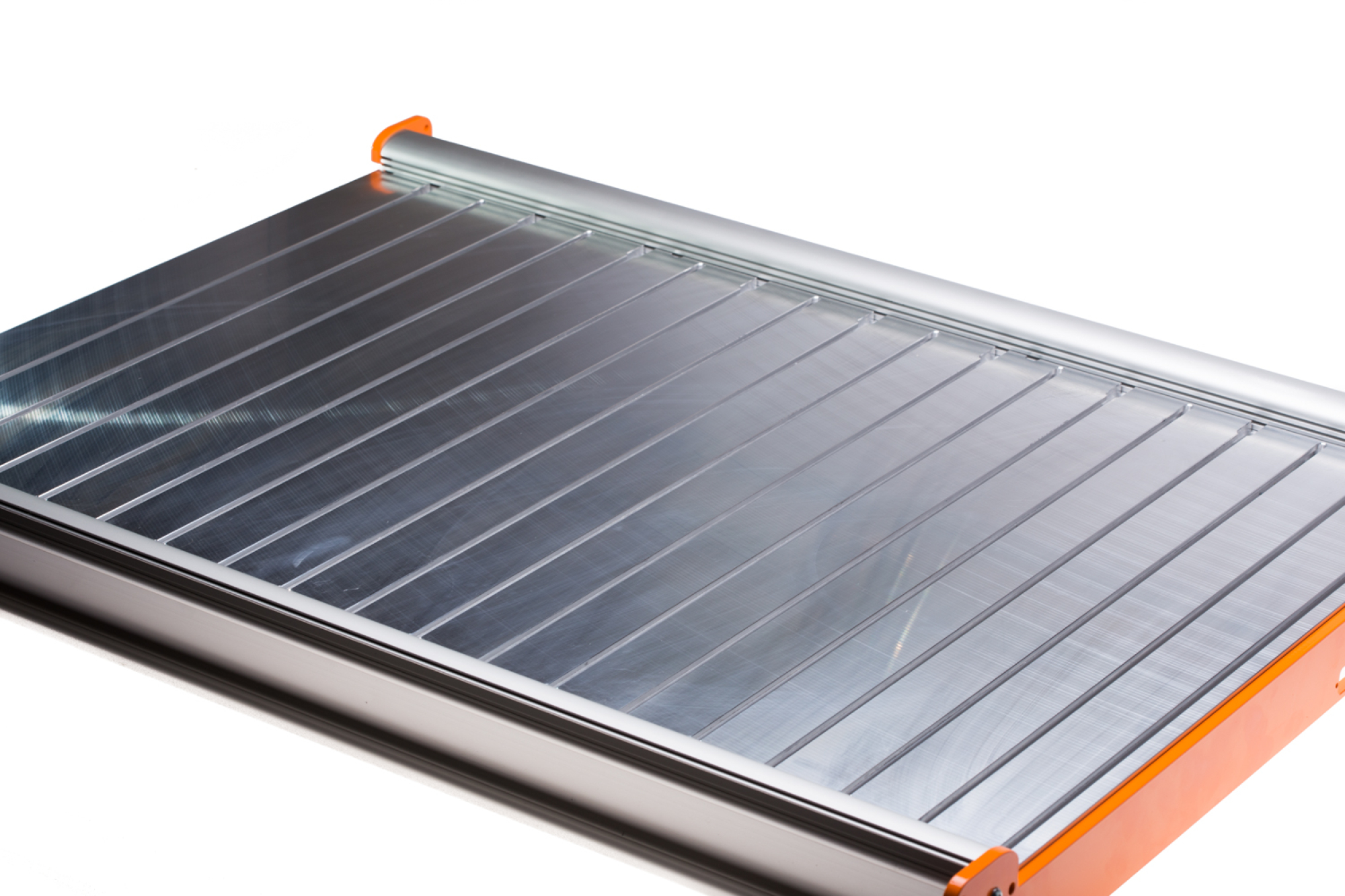

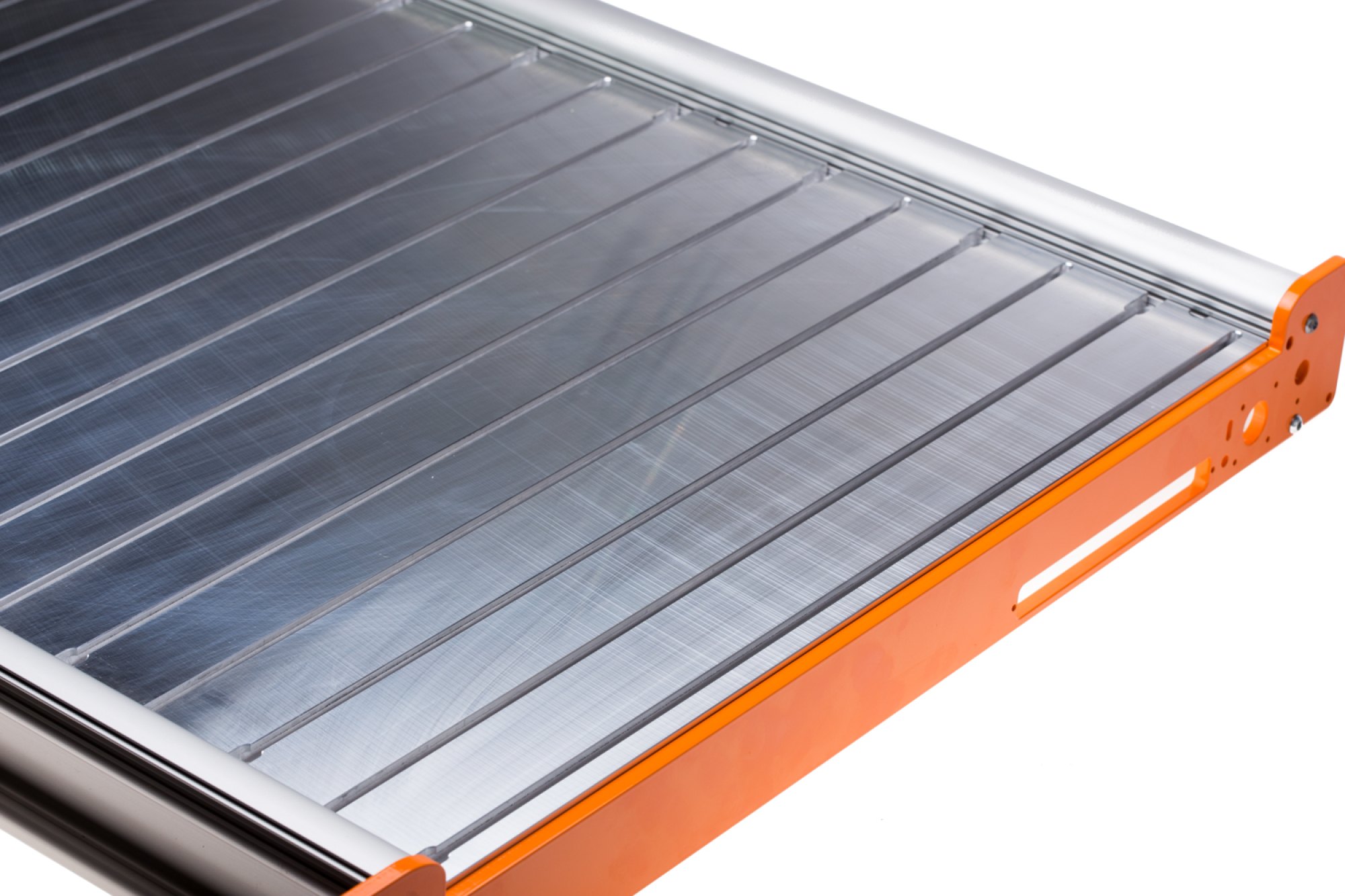

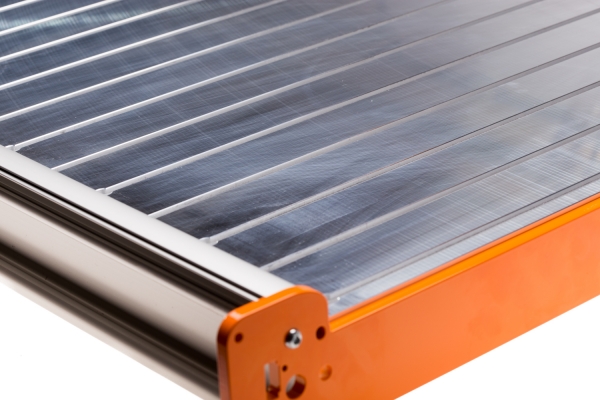

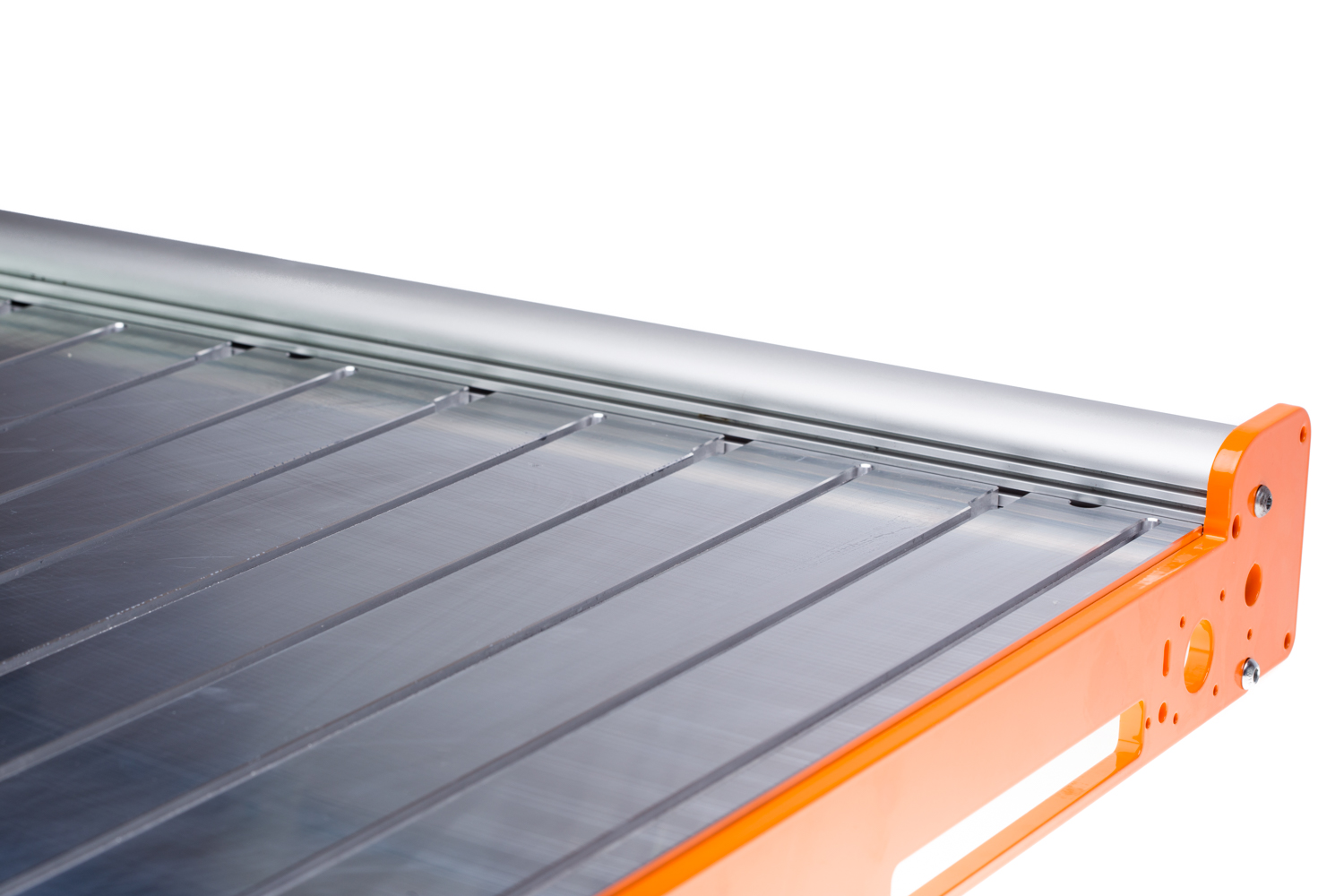

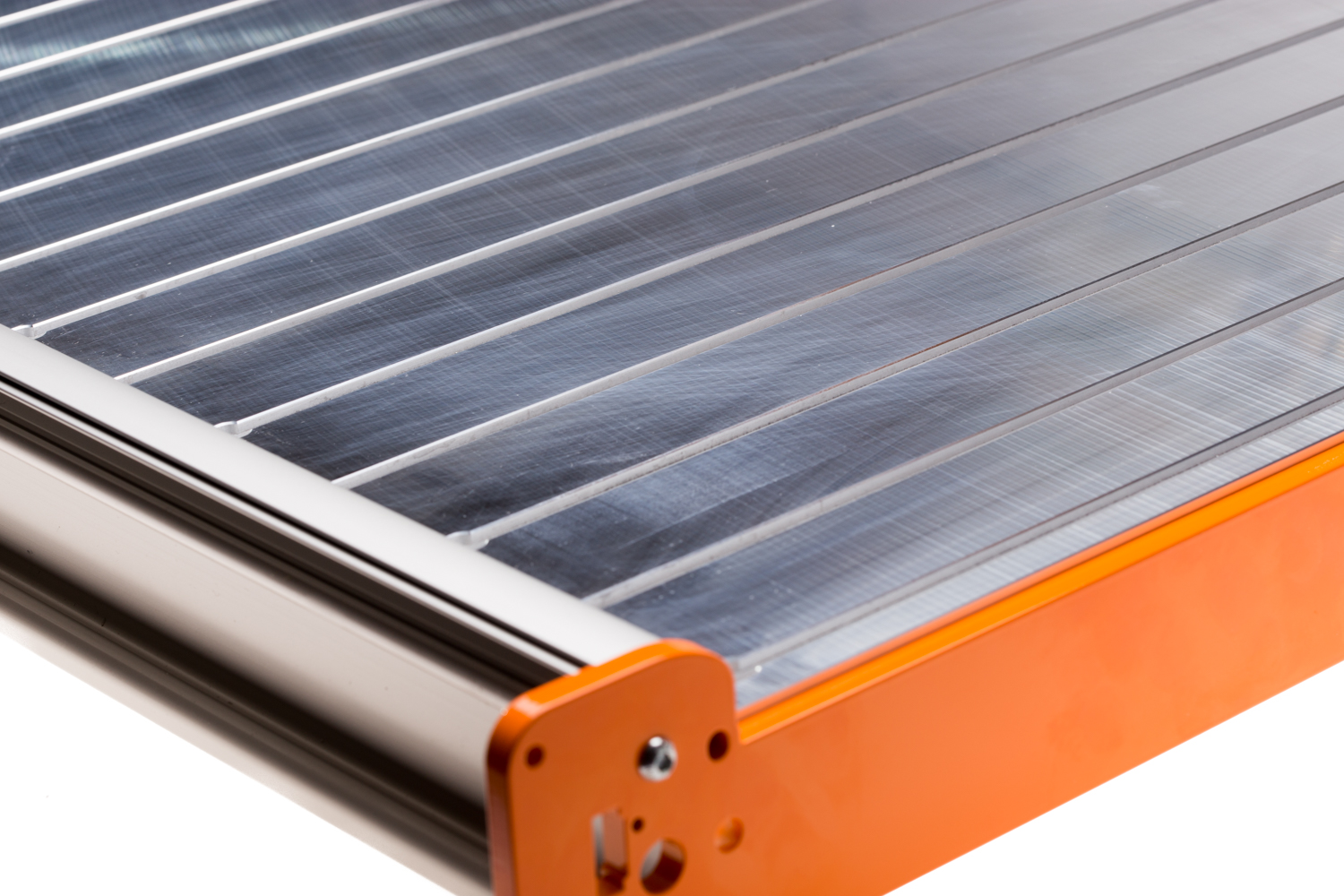

The NEW developed machine table made of 15 mm aluminum for your Stepcraft!The T-slot plate is made of low-tension aluminum and is excellently suitable for attaching workpieces of any kind or accessories, e.g. Vices, subapps, round tables, stops, prisms and angles. The grooves are suitable for screws up to M6 and slot nuts up to 10 mm width.
Through the quick-change system of the STEPCRAFT machine series, the machine table can be exchanged with just a few hand movements.

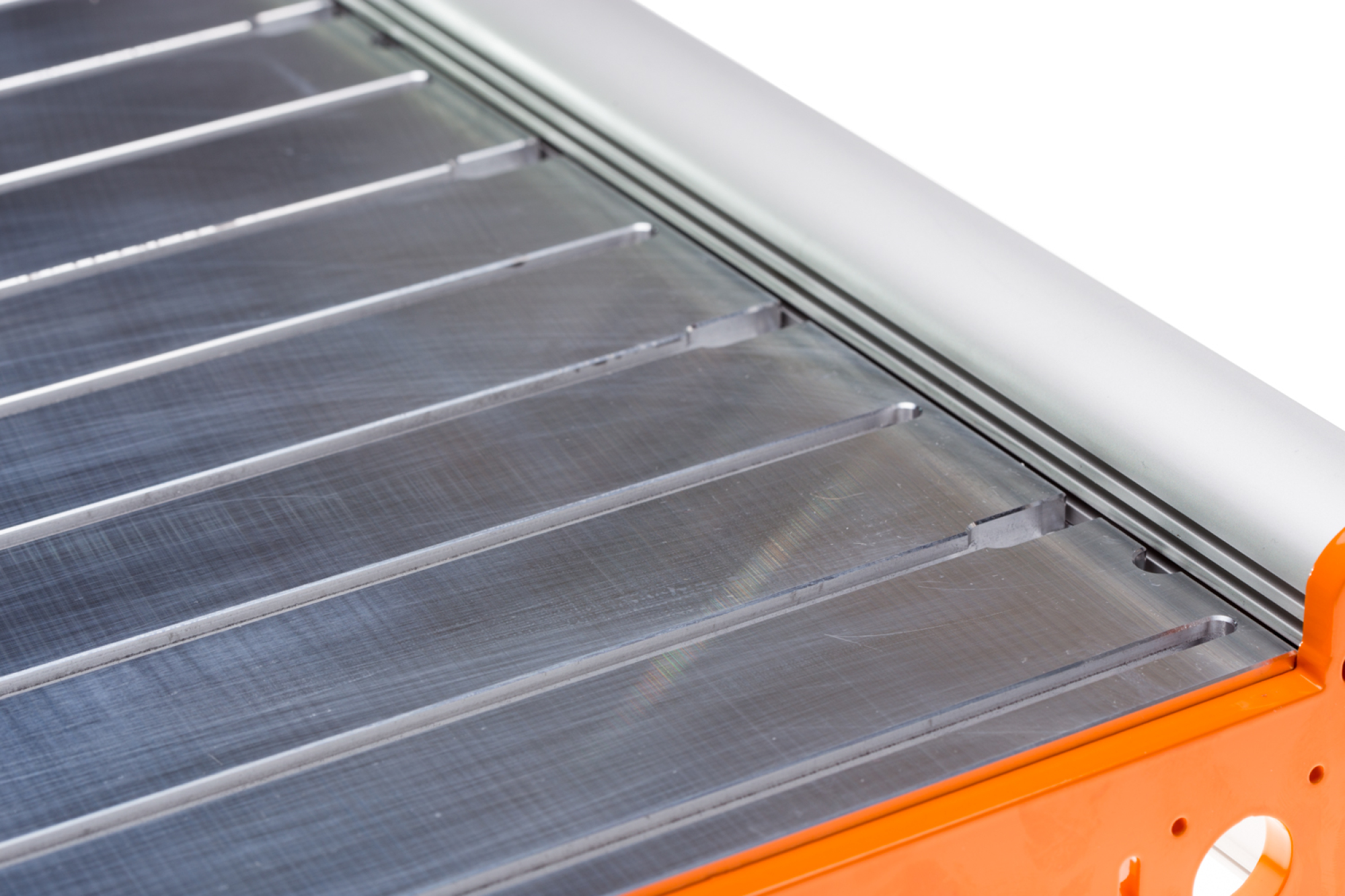

The T-slot plate has no grooves passing through the entire length of the T-slot plate.
This results in a significantly lower deflection under load on the T-slot plate.
Furthermore, the T-slot plate has clamping screws, so the plate can be clamped into the profile of the Stepcraft machine in order to achieve a tight fit of the plate in the machine.
Size:
L = 920 mm
B = 615 mm
H = 15 mm
Slot-Distance = 50 mm
Mounting guidelineManufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
