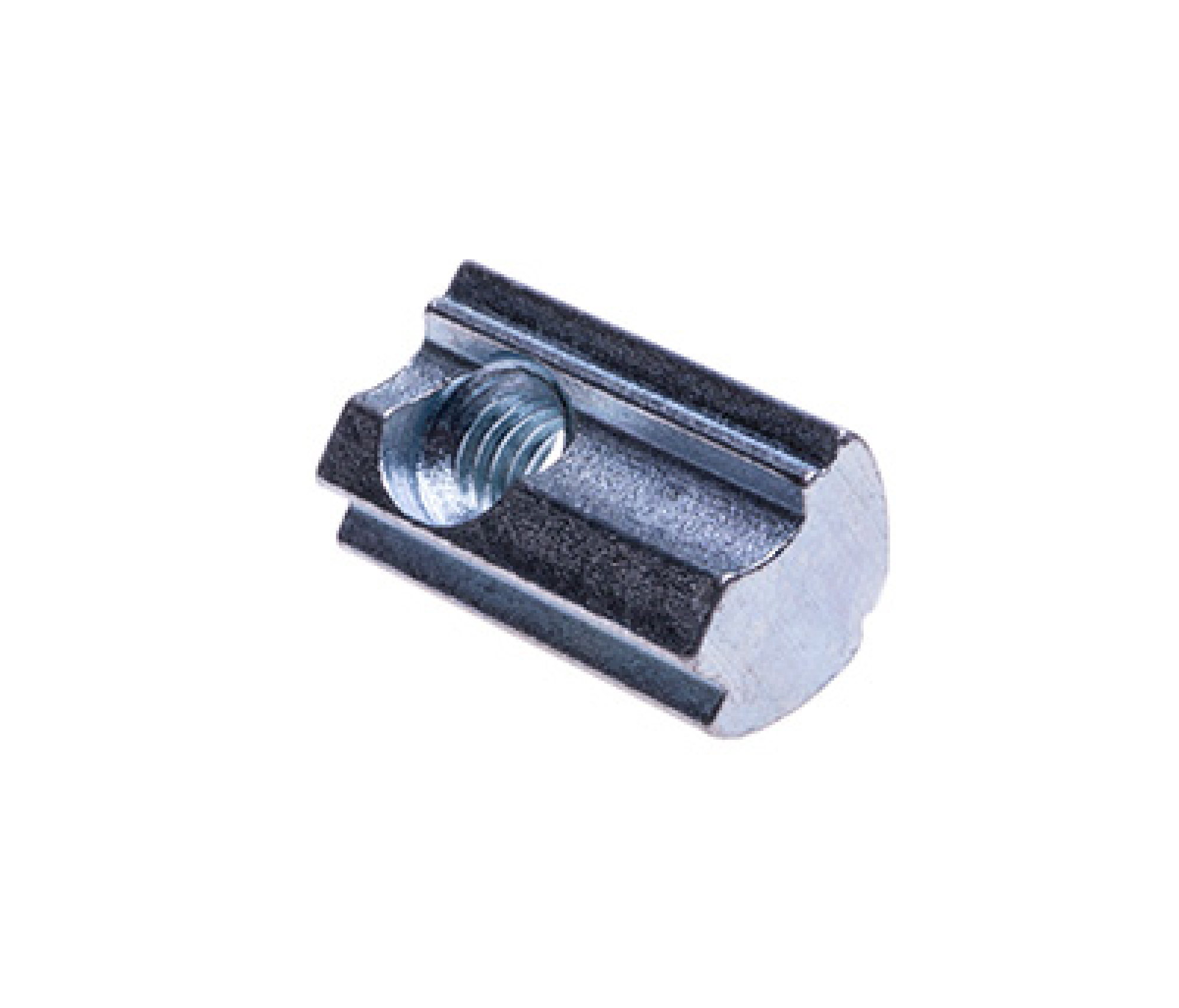

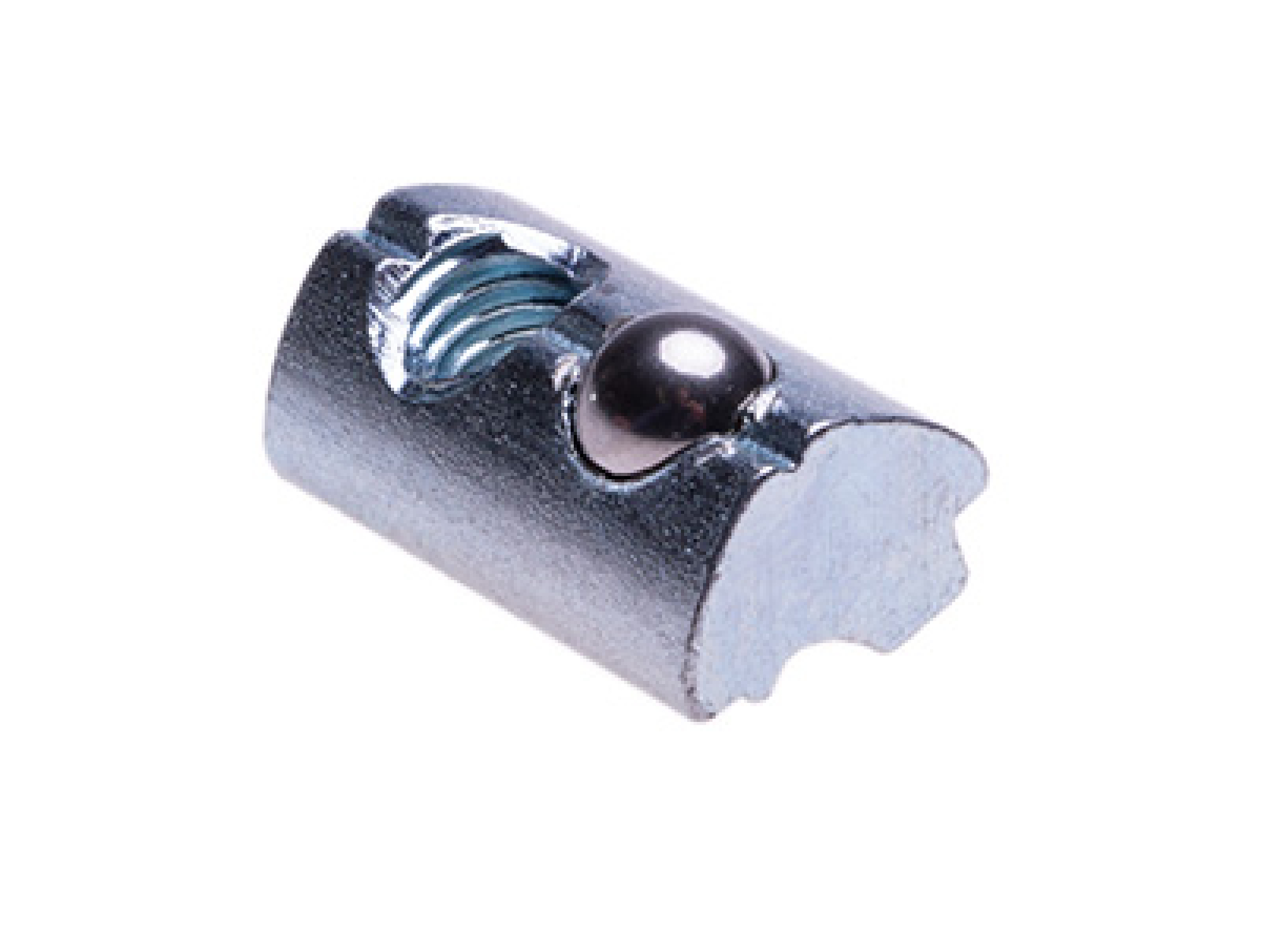

T-Slot Nut M6 with spring loaded ball
T-Slot Nut M6 with spring loaded ball

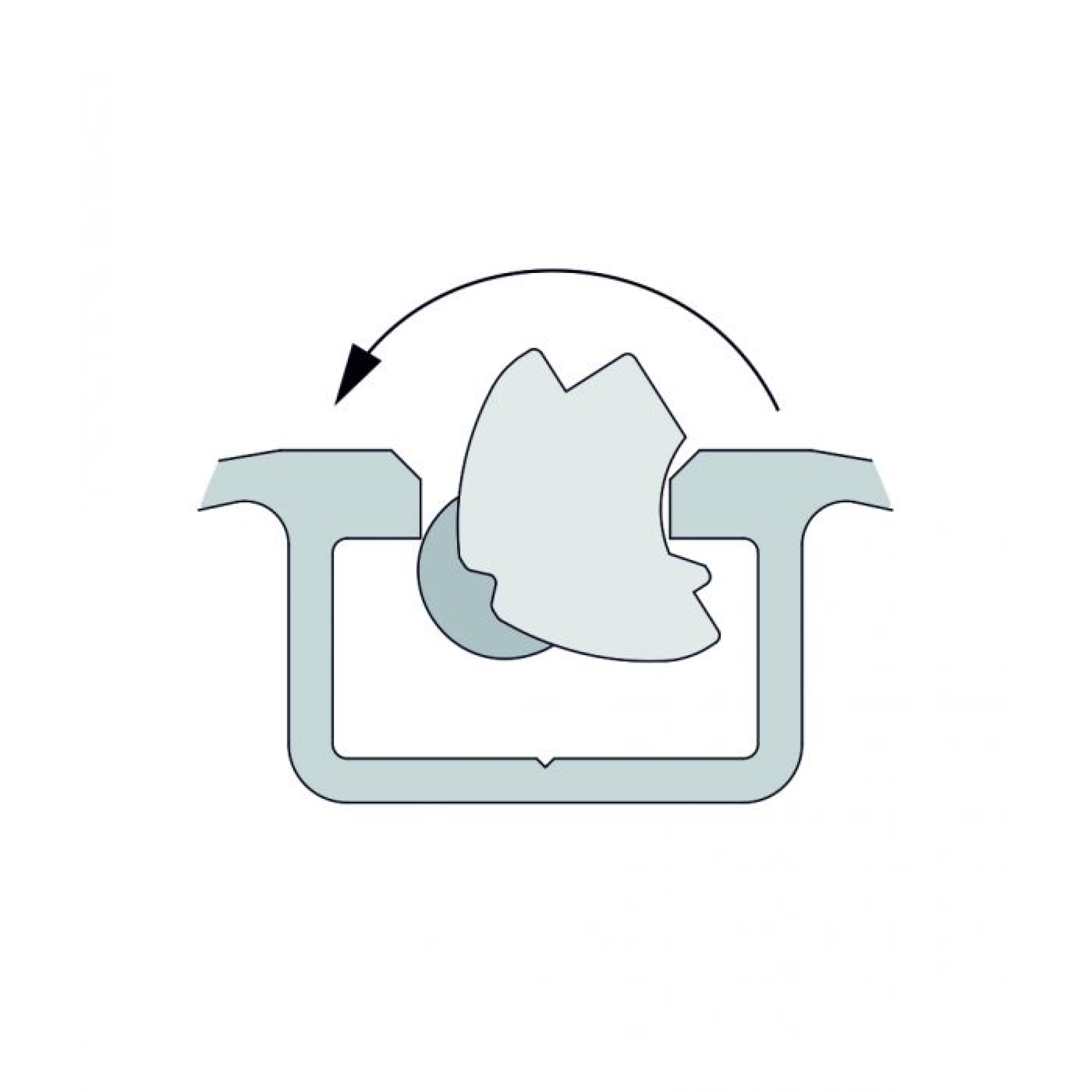

The spring-loaded pressure ball acts as a slip brake: the T-slot nut remains securely in place. Useful especially for angular clampings with vertical grooves.Another special feature: If the grooves are sufficiently wide (for example in aluminum profiles), this T-slot nut can be tossed directly into the T-slot from above.

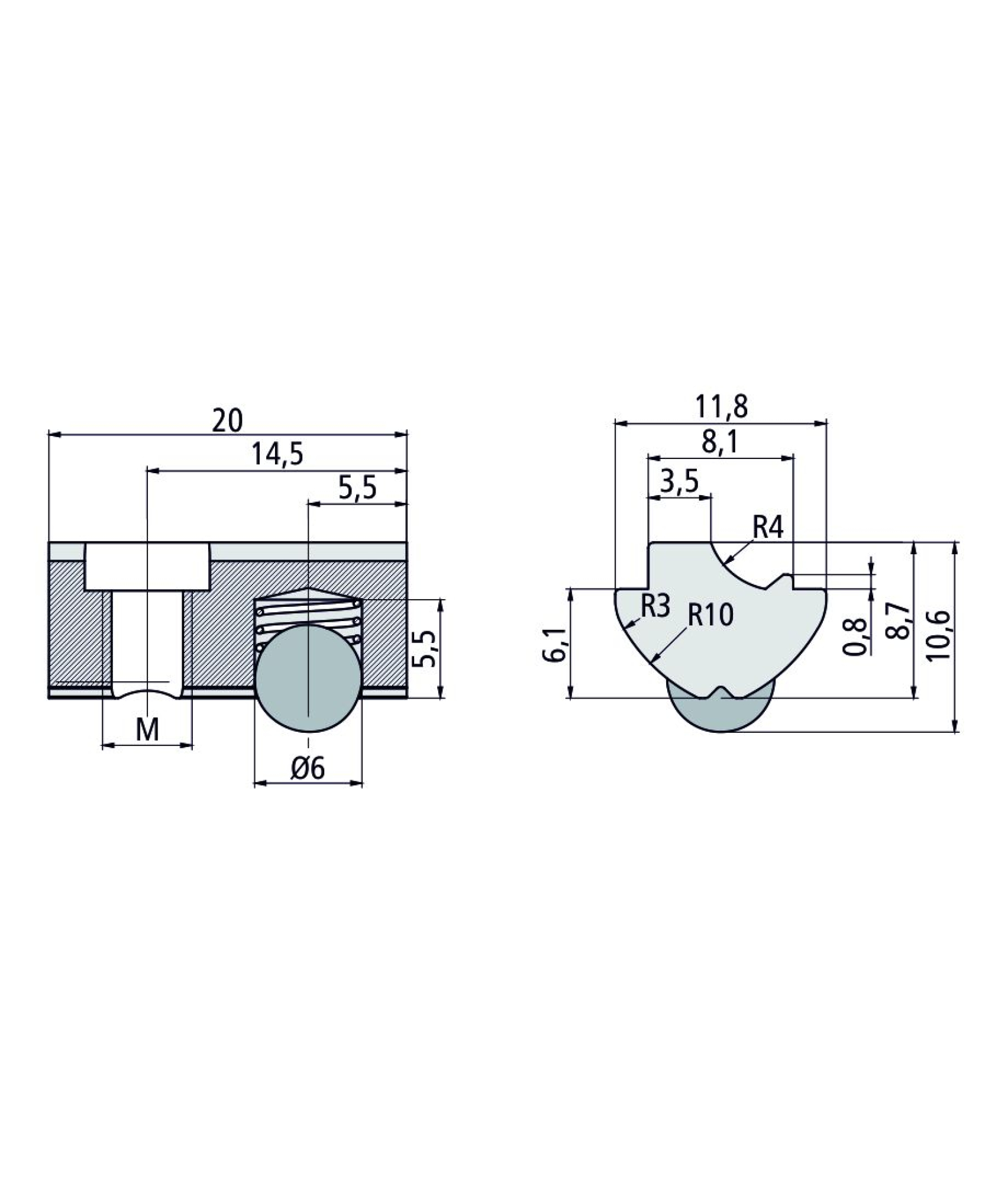

L 11.8 x W 20 x H 10.6 mm
Steel galvanized
one piece
