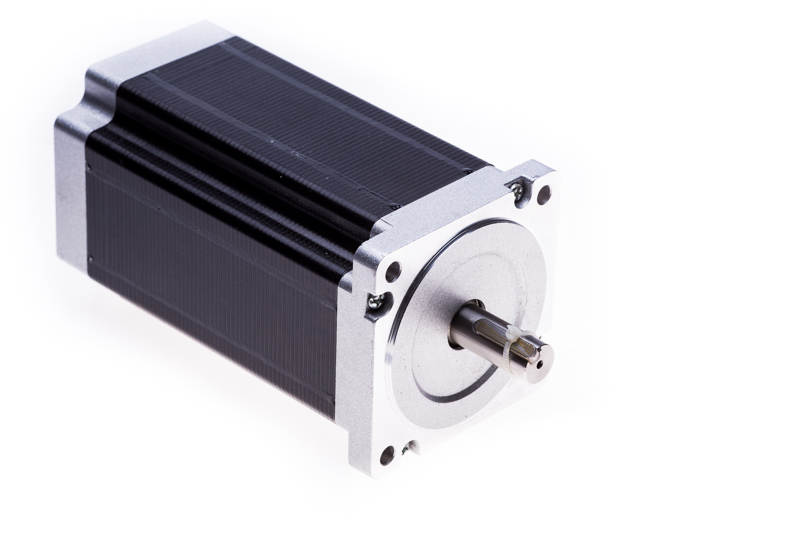

Stepping Motor 15.3 Nm 8.4 A DS
NEMA 34 compatible frame Hybrid Stepping Motor
86BYGH450H-03AA
with a holding torque of 15.3 Nm and doube shaft.
Technical Specifications:
- Angle 1.8, 200 steps
- Size: 86 mm width & height, 156 mm length.
- Shaft; 14 mm / 8 mm
- Series operation 4.2 A, 15,3 Nm, 0.94 ohms
- Parallel Operation 8.4 A, 15,3 Nm, 0.24 ohm
- Cable length 30 cm
- Weight: approx 5.4 kg
Datasheet (english)Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
