Stepping Motor 4.2A Bipolar 3 NM DS

Product No.:
ESM.6088.42
immediately available, 2-3 Days immediately available, 2-3 Days (abroad may vary)
Weight:
1,5 kg per piece
45,90 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Description

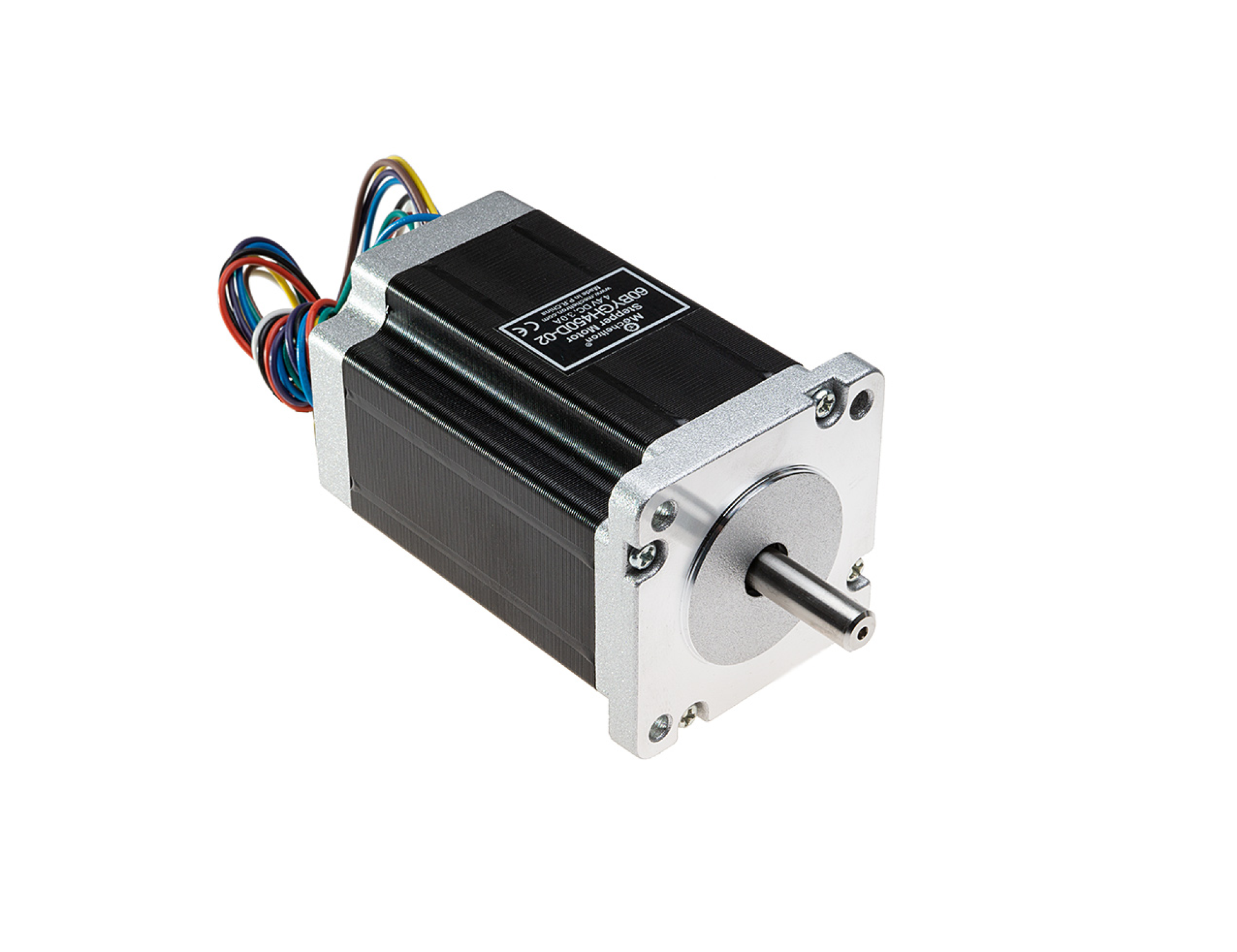

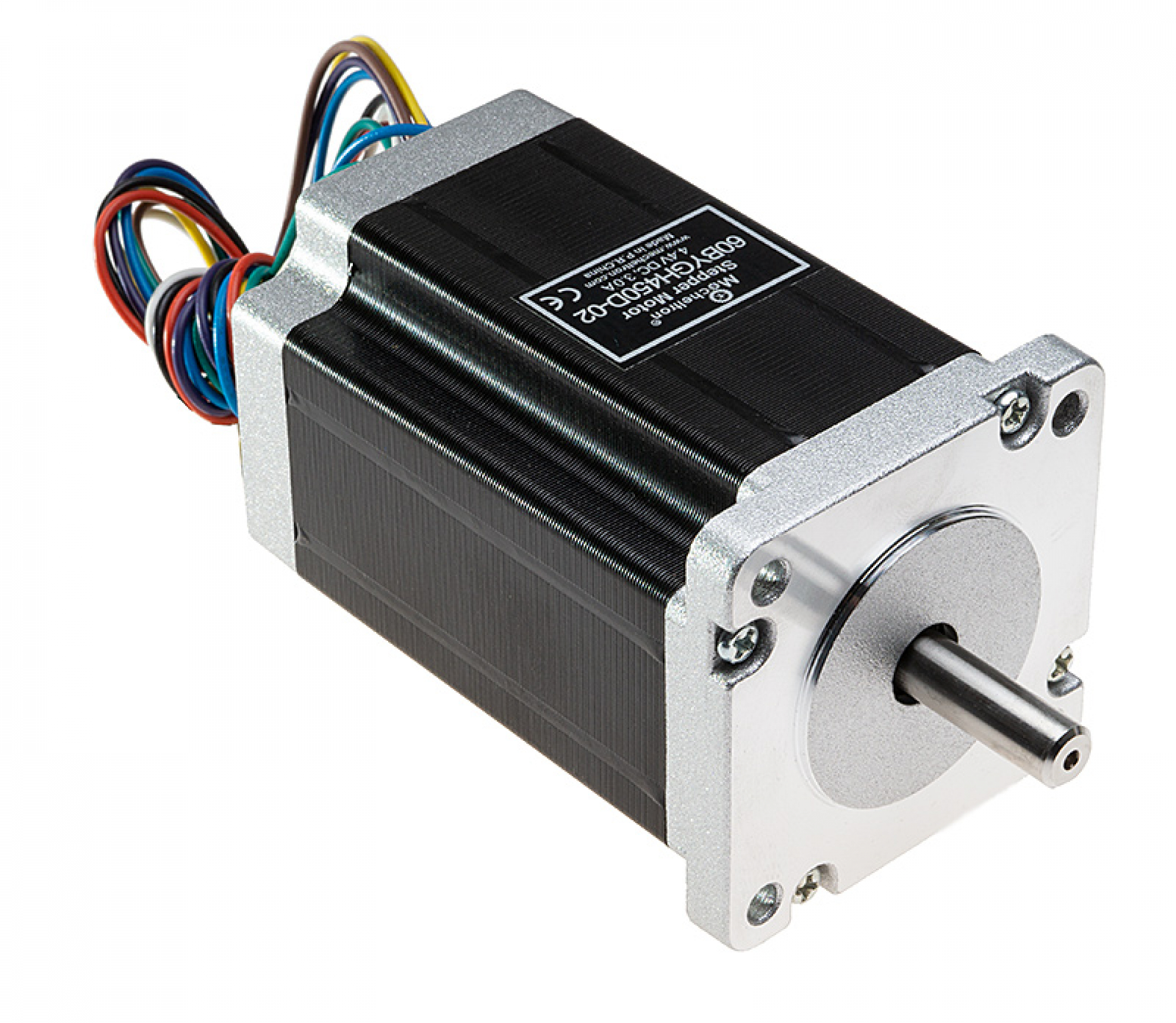

 NEMA 23 compatible frame Hybrid Stepping Motor with a holding torque of 2,4/ 3,3 Nm and doube shafts.

Technical Specifications:

  • Angle 1.8, 200 steps

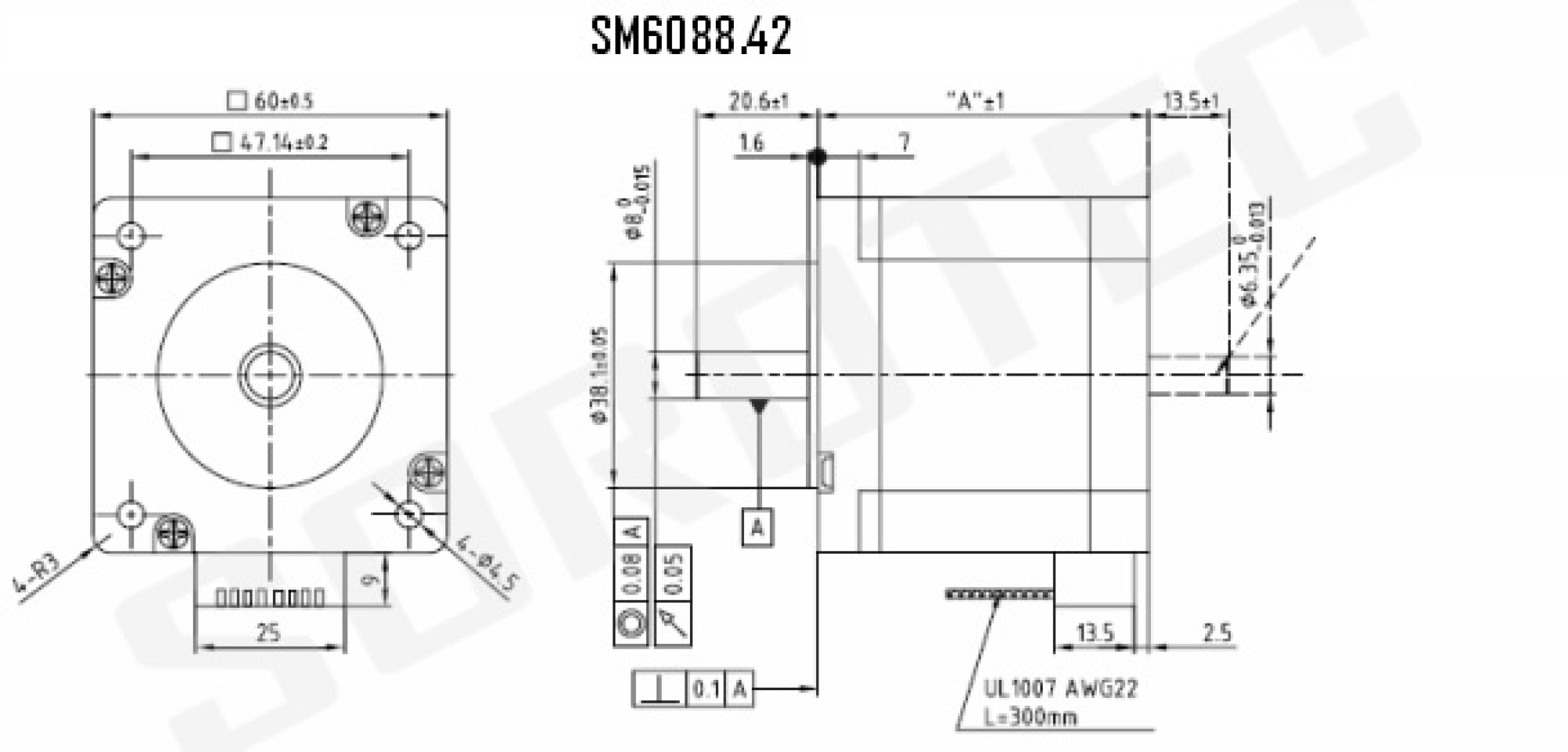

  • Size:  60mm width & height, 89mm length.
  • Stepper Motor with 2. shaft
  • Shaft: Ø8 mm
  • Encoderside: Ø6.35 x 13,3mm
  • Unipolar Connection 3,0A / 2,4NM / 1,46 ohms
  • Bipolar Series Connection 2.12 A / 3,3 Nm / 2.92 ohms
  • Bipolar Parallel Connection 4.2A / 3,3Nm / 0.73 ohm
  • Cable length 30 cm
  • Weight: approx 1.5Kg

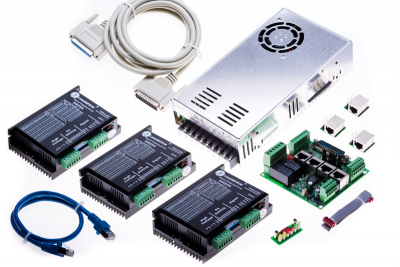

This stepping motor is works very good with our triple-BEAST and Leadshine Stepping drives

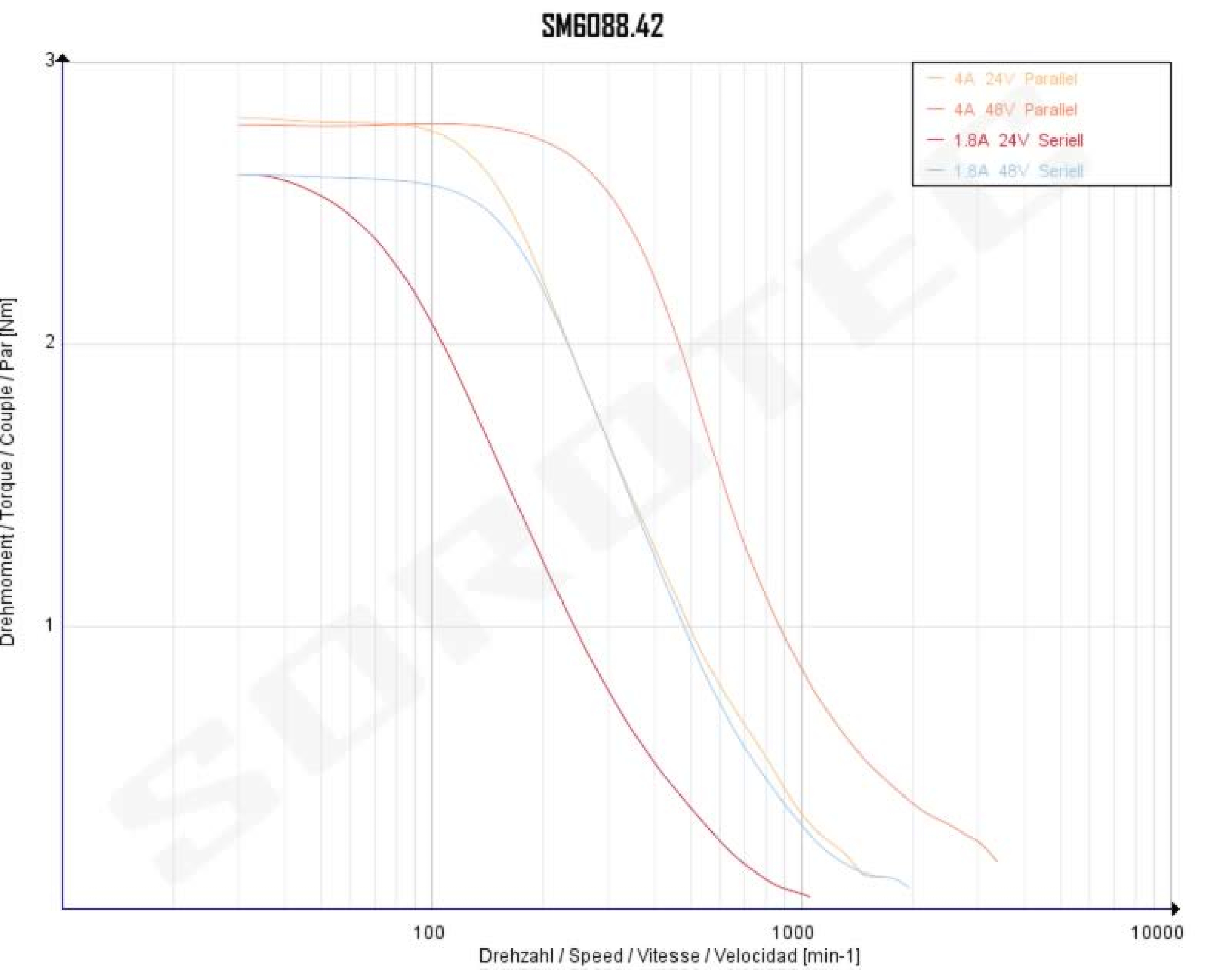

 Technical Data



  Wiring diagram
