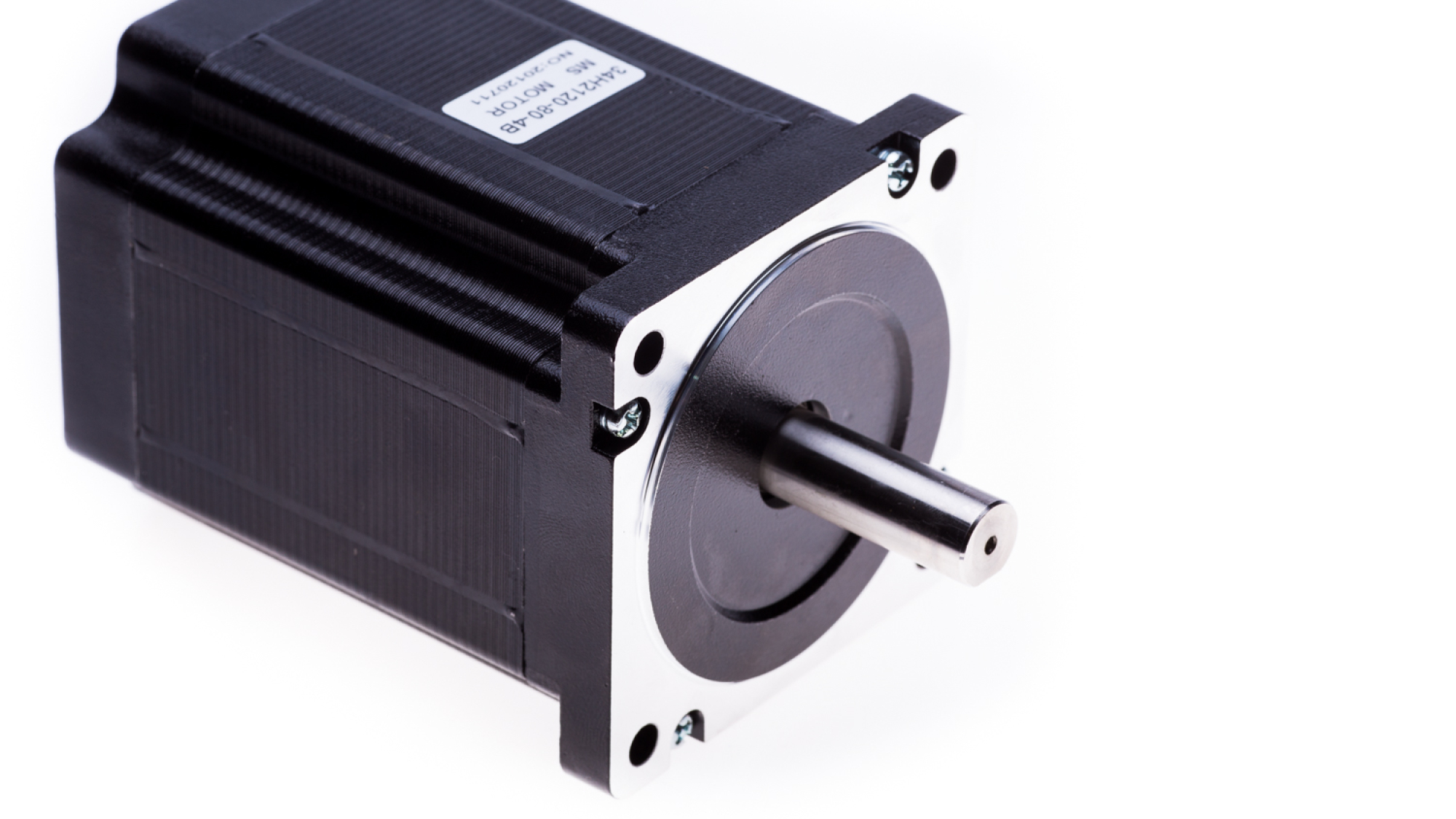

Stepping Motor 22 Nm 6 A
NEMA 34 compatible frame Stepping Motor
with a holding torque of 22 NmTechnical Specifications:
- Angle 1.8, 200 steps

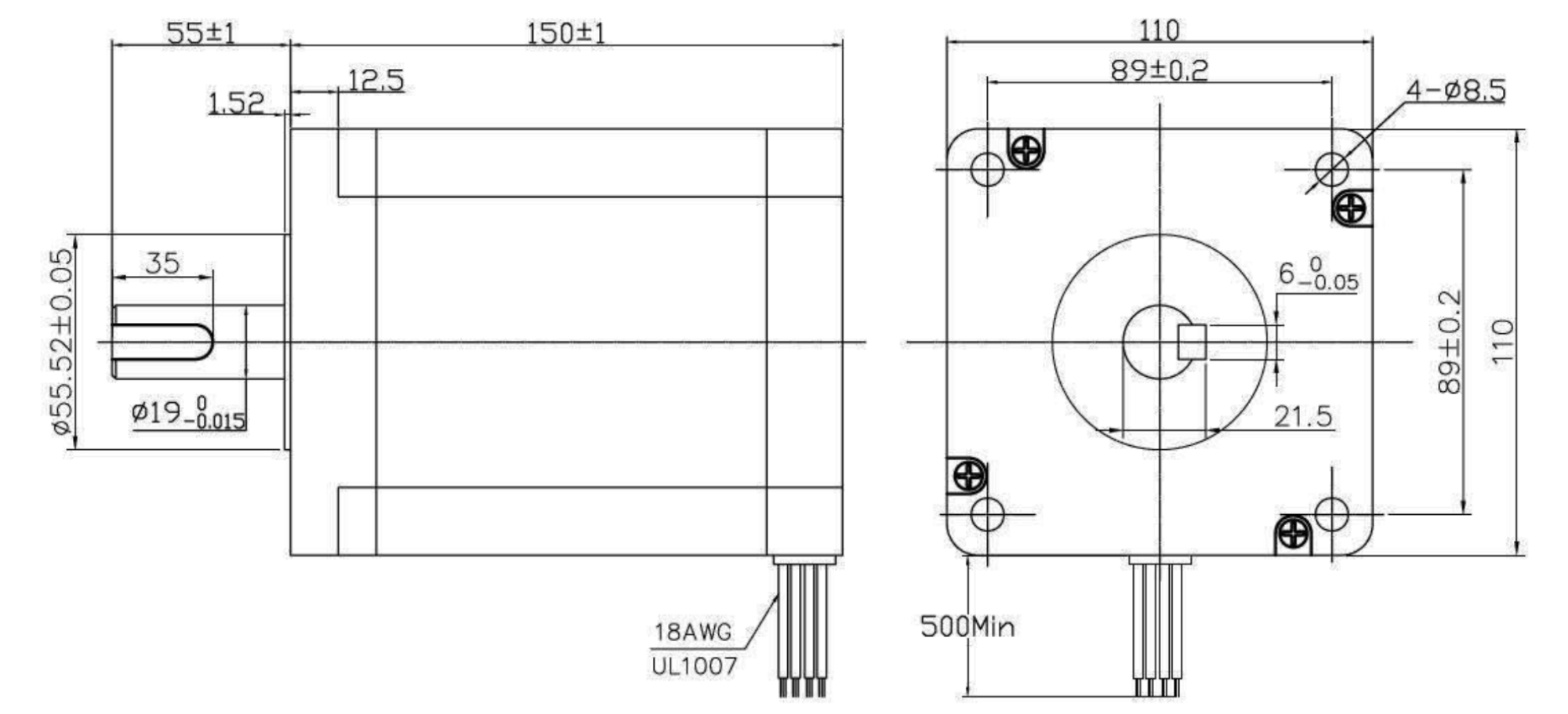

- Size: 110 mm width & height, 150 mm length.
- Shaft: Ø 19 mm
- Unipolar Connection 6 A / 22 Nm
- Weight: approx 9 kg
Data sheet english
