Stepping Motor 2 A 0.95 Nm

Product No.:
ESM.5754.20
immediately available, 2-3 Days immediately available, 2-3 Days  (abroad may vary)
Shipping weight:
0.67 kg per piece
19,90 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Description

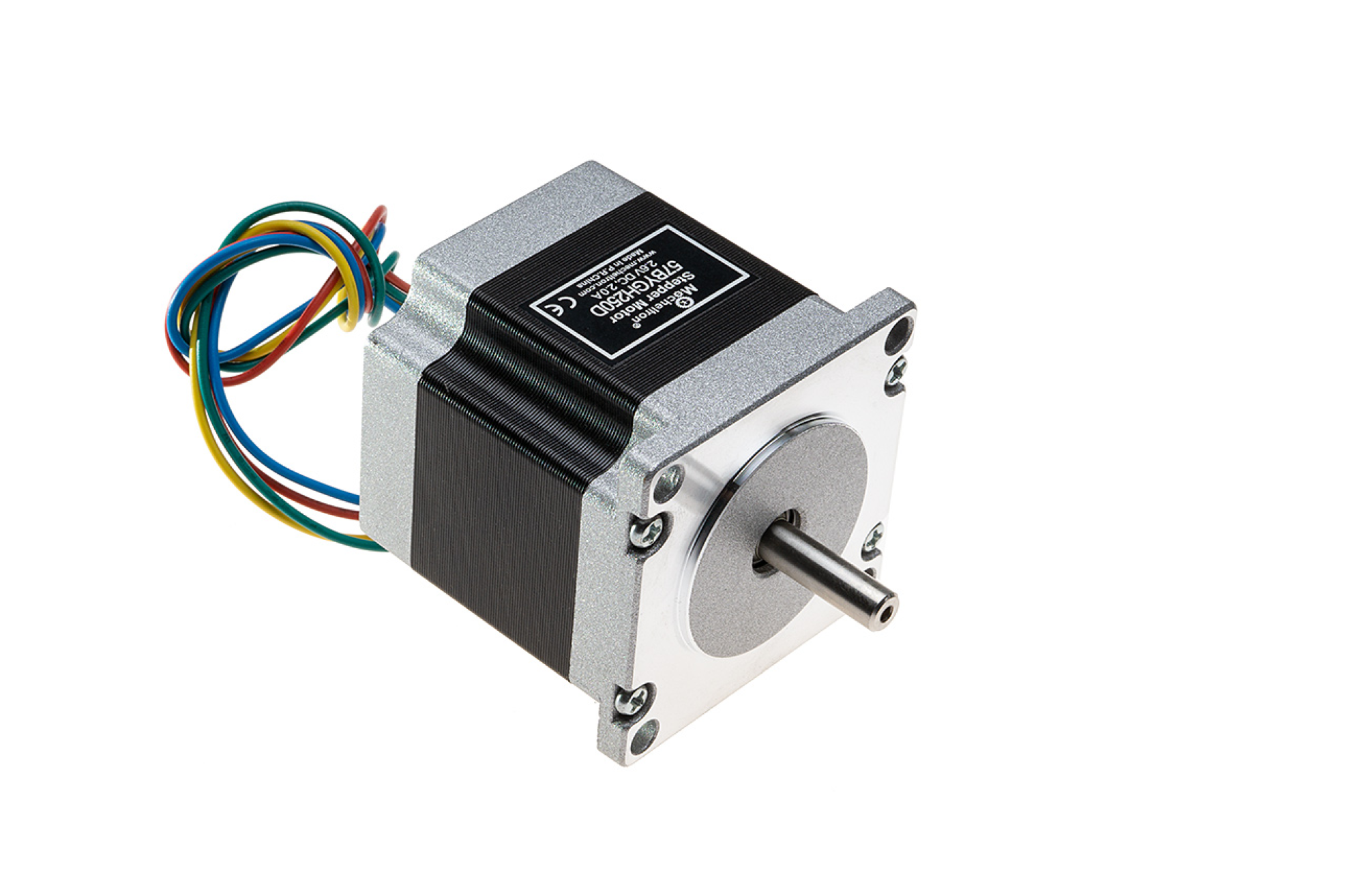

Stepping Motor 0.95 Nm 2 A

NEMA 23 compatible Stepping Motor.

Technical Specifications:

  • Angle 1.8°, 200 steps

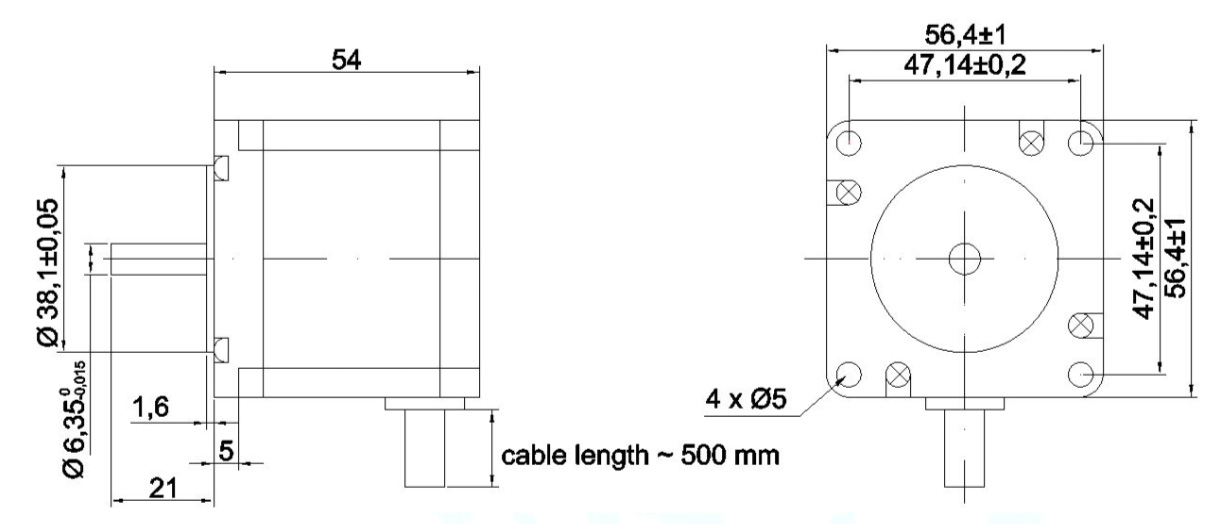

  • Size:  57 mm width & height, 54 mm length.
  • Shaft: Ø 6.35 mm
  • 2 A / 0.95 / 1.32 Ohm
  • Cable length 30 cm
  • Weight: approx. 0.7 kg

This stepping motor is works very good with our triple-BEAST and Leadshine Stepping drives.

Documentation

  Wiring hints

  Data sheet english
