Stepping Motor 1.8Nm Bipolar 4.2A

Product No.:
ESM.5776.42
immediately available, 2-3 Days immediately available, 2-3 Days (abroad may vary)
Shipping weight:
1,1 kg per piece
26,22 EUR

incl. 16% tax excl. Shipping costs

Add to wish list
Description

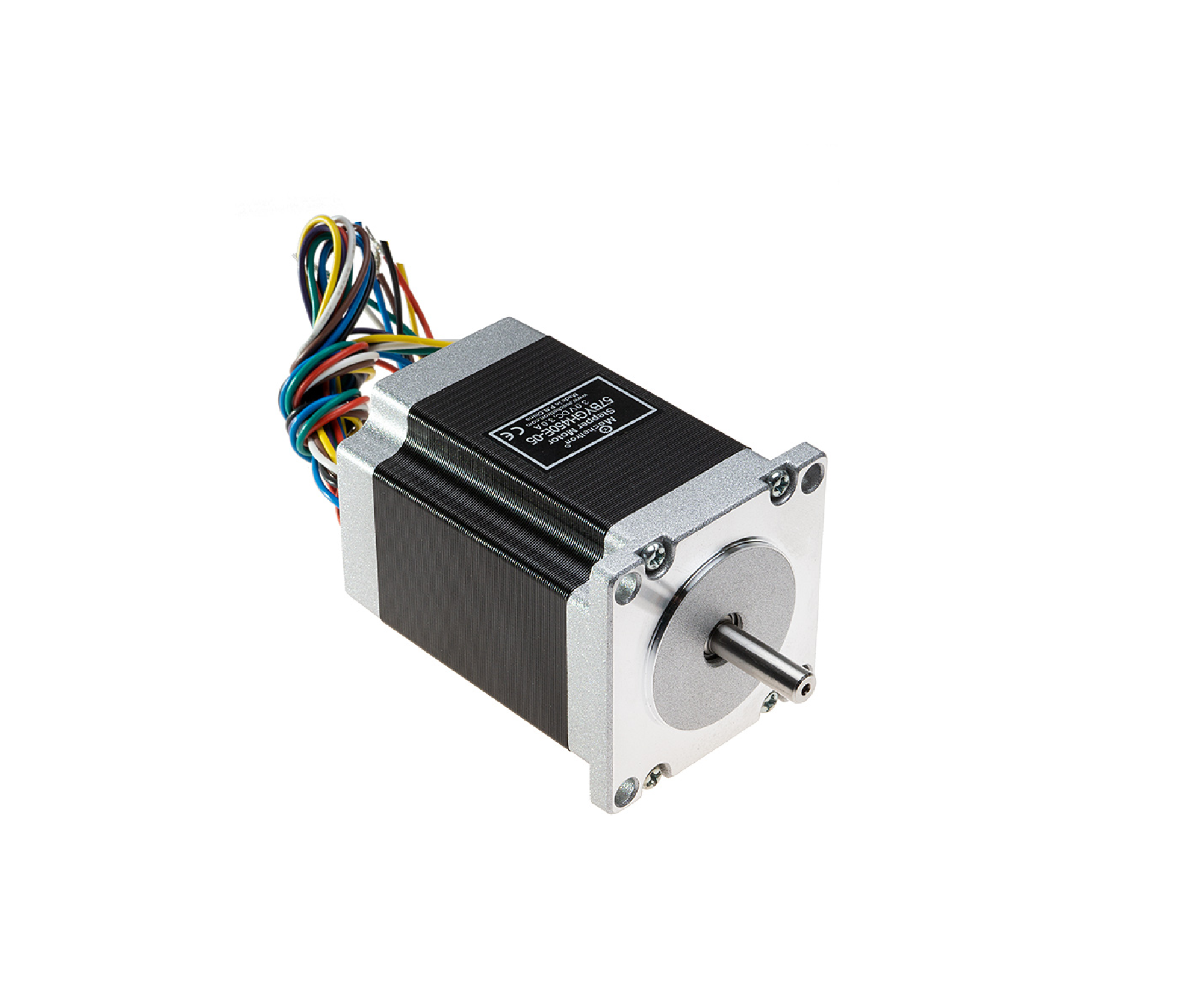

 NEMA 23 compatible Stepping Motor with a holding torque of 1.8Nm.

Technical Specifications:

  • Angle 1.8, 200 steps
  • Size:  57mm width & height, 76mm length.
  • Shaft: Ø6.35 mm
  • Unipolar Connection 3,0A / 1.45NM / 1,0 ohms
  • Bipolar Series Connection 2.1A / 1.8Nm / 2.0 ohms
  • Bipolar Parallel Connection 4.2A / 1.8Nm / 0.5 ohm
  • Cable length 30 cm
  • Weight: approx 1.1Kg

This stepping motor is works very good with our triple-BEAST and Leadshine Stepping drives.

Documentation

  Connection hints

  Data sheet english
