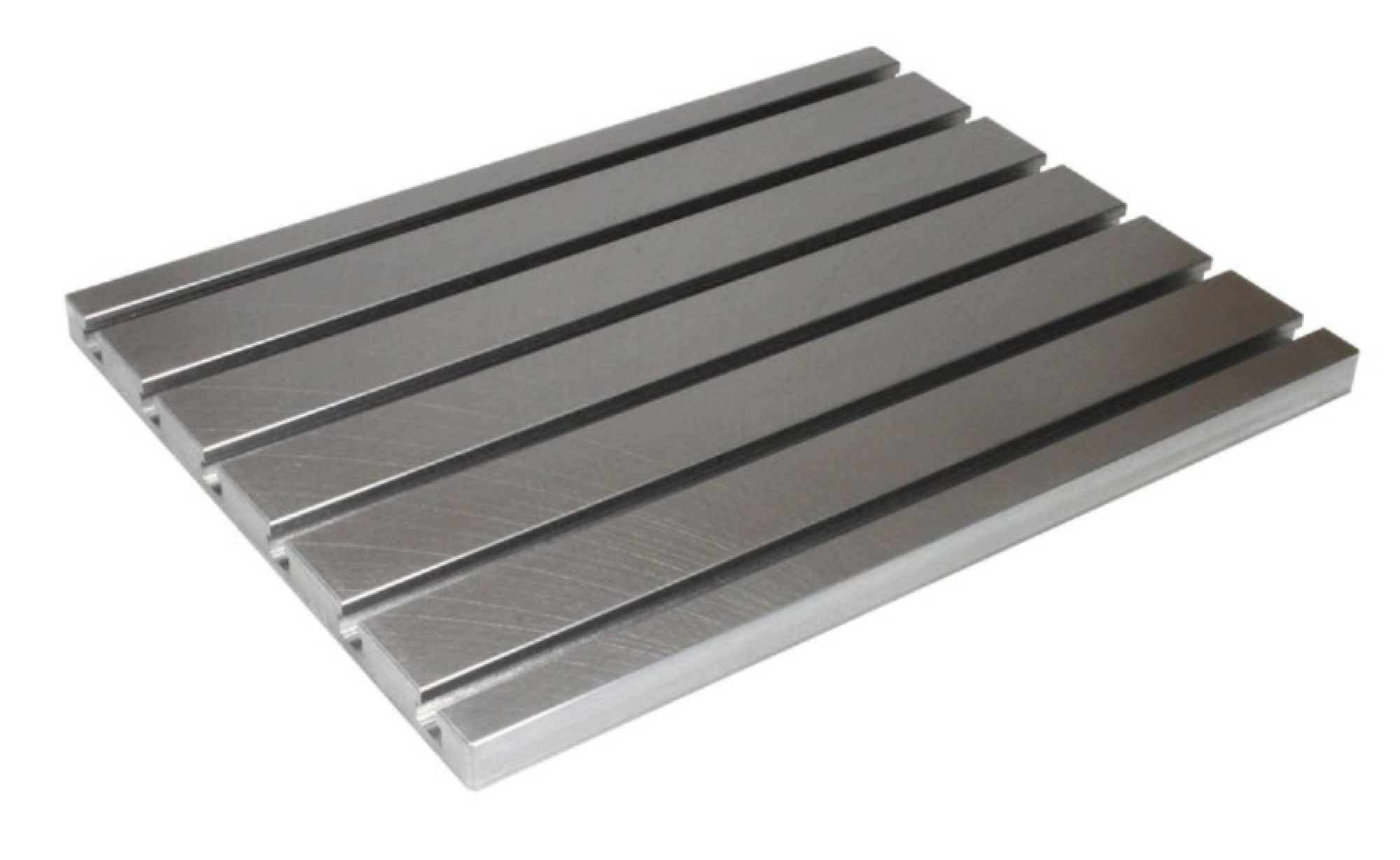

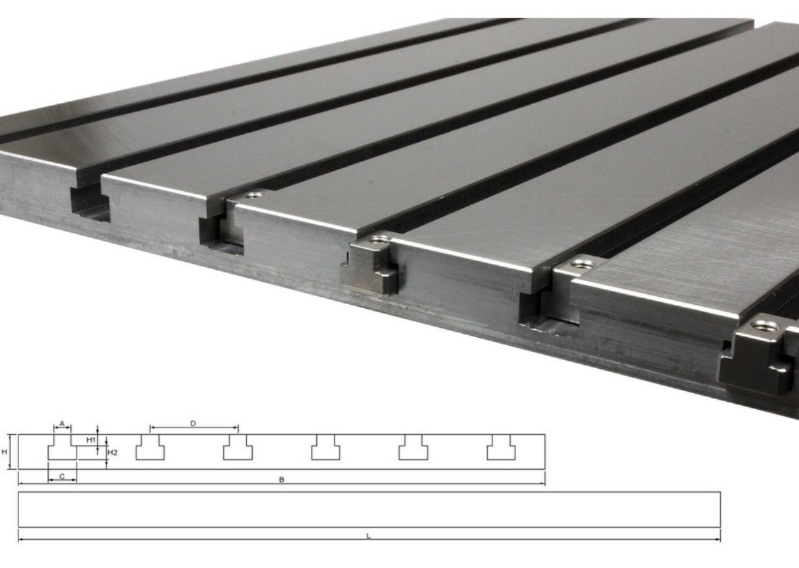

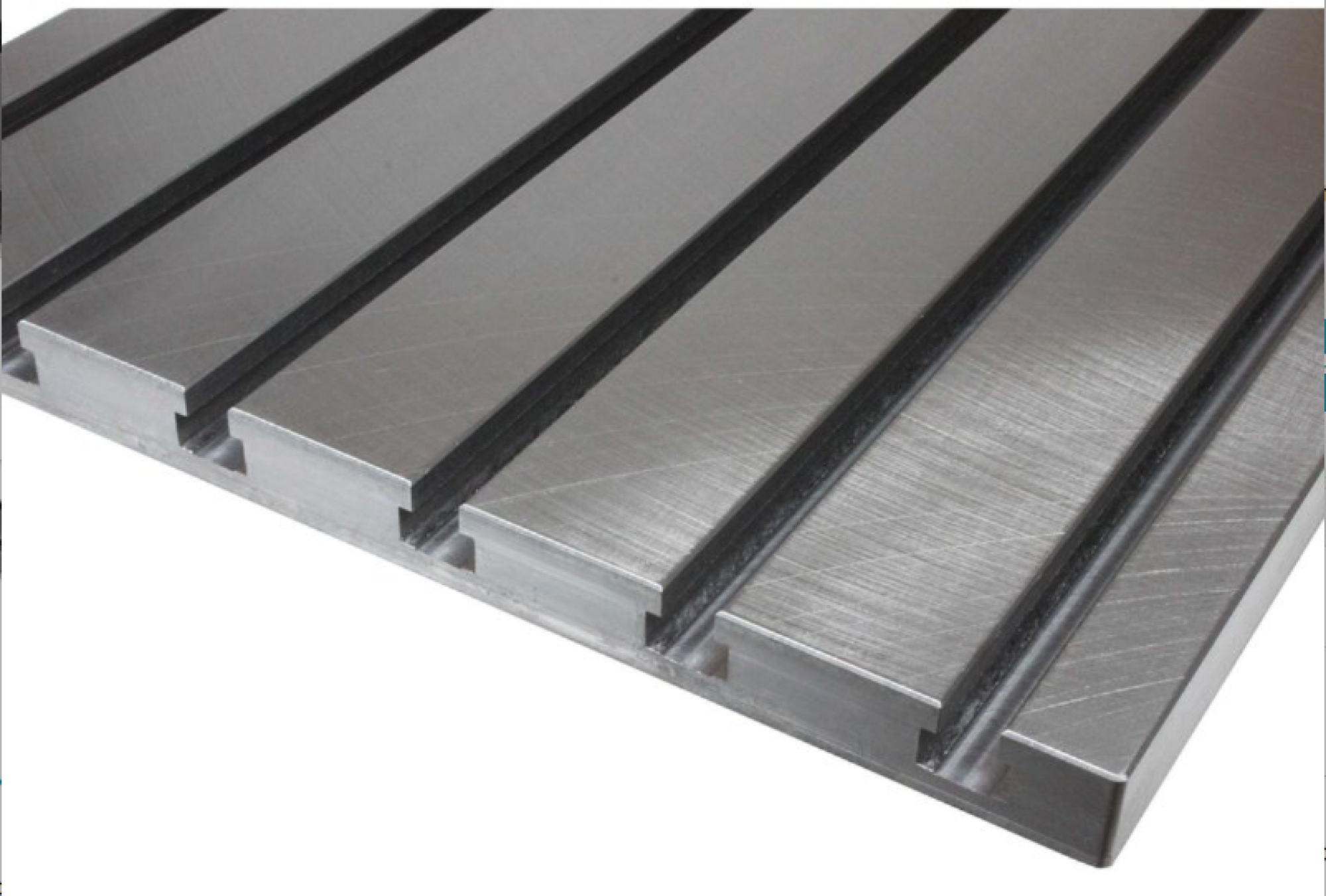

Steel T-slot plate 8040
Steel T-slot plate 8040
The T-slot plate is supplied with a smooth, closed bottom; that allows you to suck the plate on a vacuum table. For mounting on a machine table /frame holes will be drilled at a appropriate position. You can do this by yourself or take advantage of our service.Technical Data:
- made for T-Slot nuts according to DIN508
- Tolerance/Precision: +/- 0.01 mm /200 mm
- measurement record included in deleivery

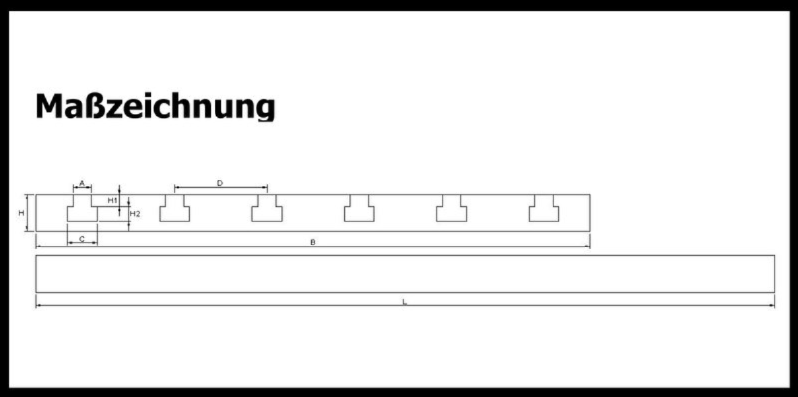

- L = 800 mm
- B = 400 mm
- H = ca. 20 mm
- H1 = 6.5 mm
- H2 = 8 mm
- D = 50 mm
- A = 10 mm
- C = 16 mm
Please write to us. We would be glad to provide you with an individual offer including transport costs.
