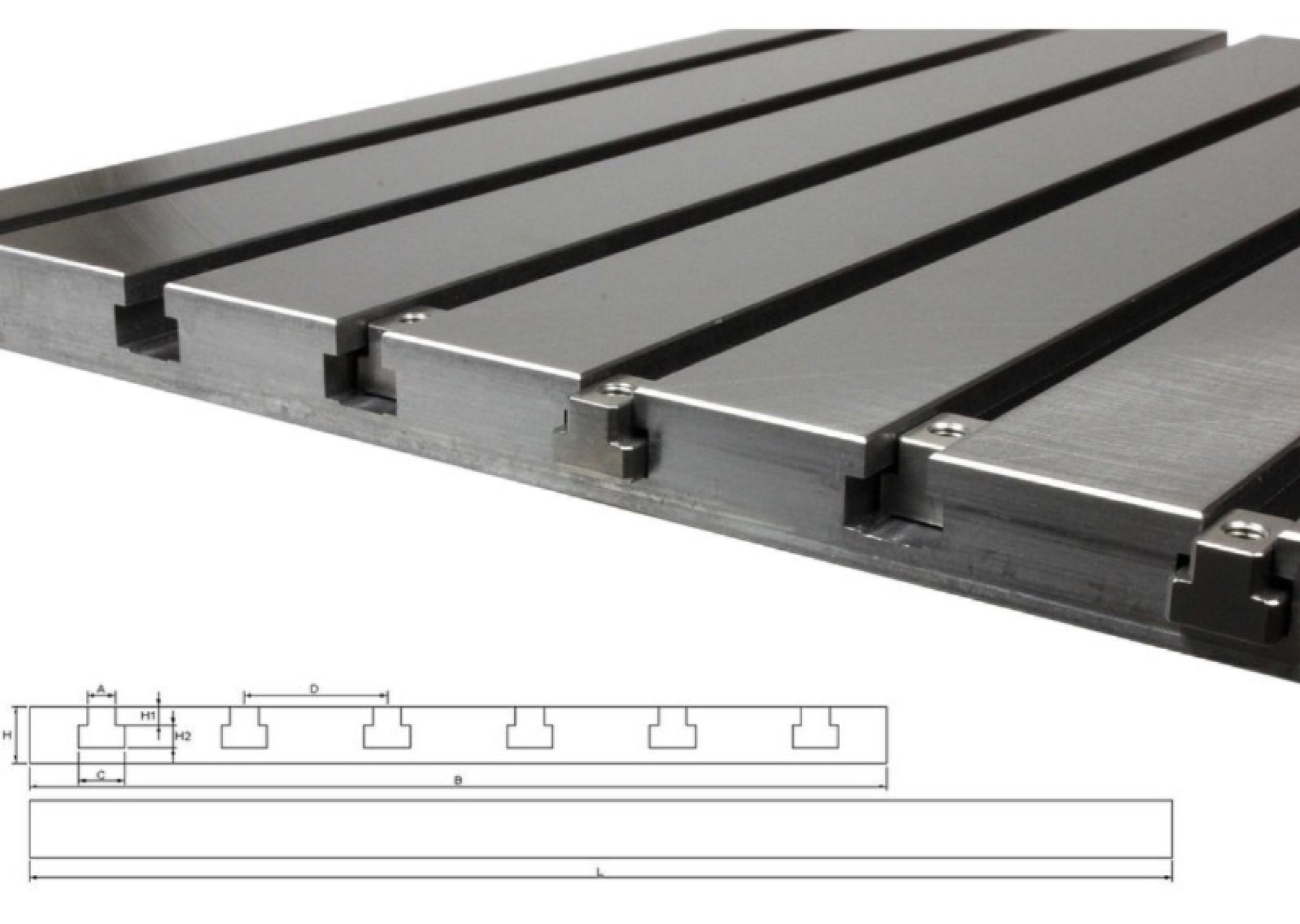

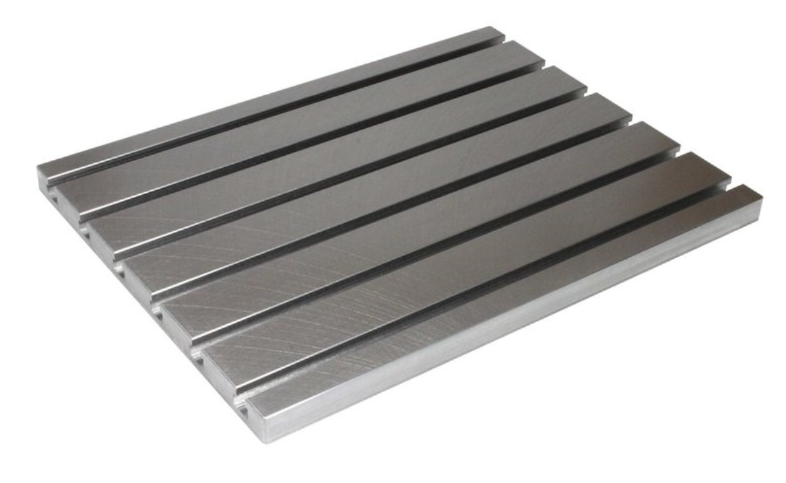

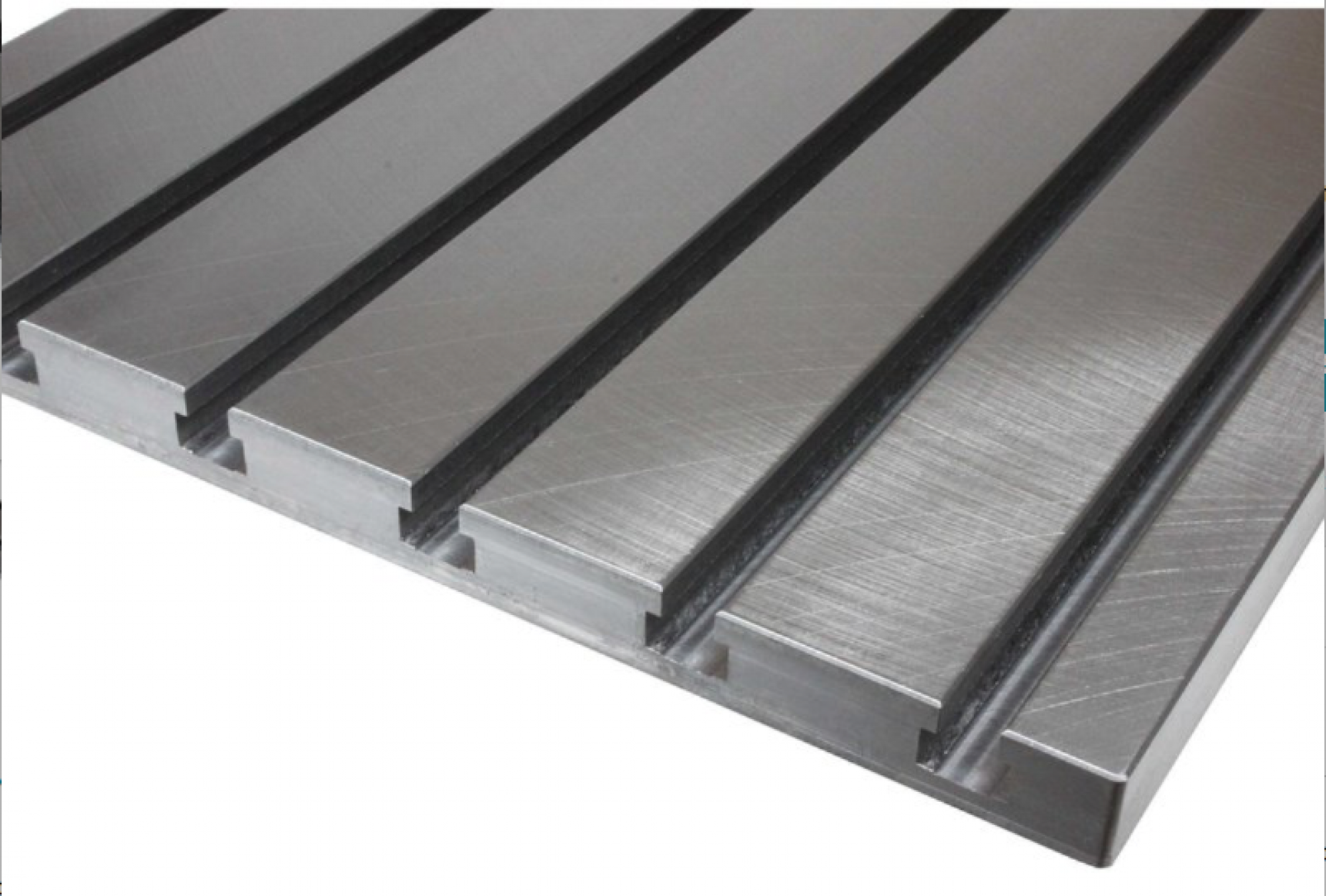

Steel T-slot plate 4030
The T-slot plate is supplied with a smooth, closed bottom; that allows you to suck the plate on a vacuum table. For mounting on a machine table /frame holes will be drilled at a appropriate position. You can do this by yourself or take advantage of our service.
To achieve maximum rigidity, face milling is performed while retaining the maximum possible thickness. Consequently, the thickness may range from 20 to 23 mm. If you require a precise thickness, please specify this when placing your order.

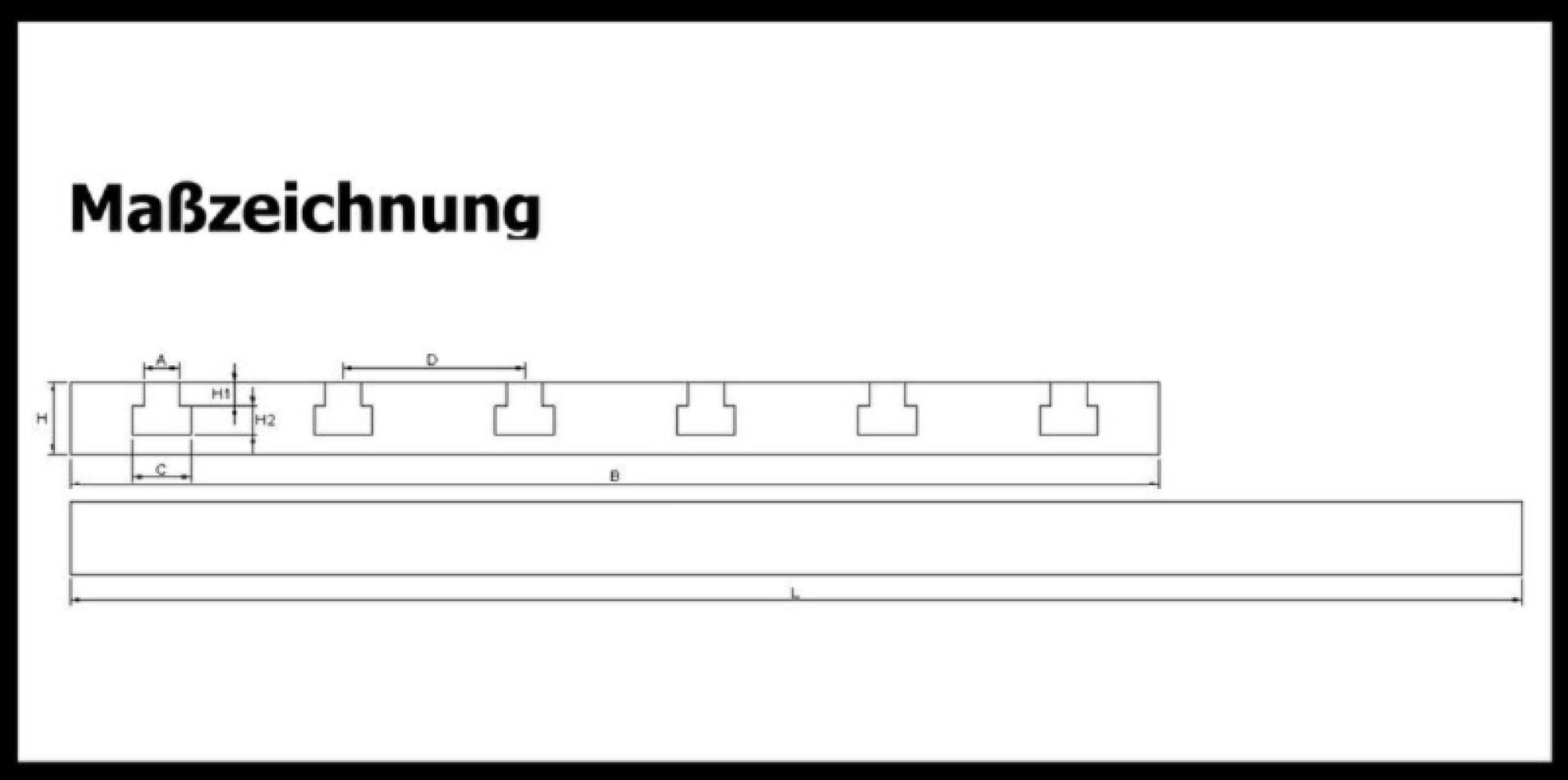

Technical Data:
- made for T-Slot nuts according to DIN508
- Tolerance/Precision: +/- 0.01 mm /200 mm
- L = 400 mm
- B = 300 mm
- H = 20 ... 23 mm
- H1 = 6.5 mm
- H2 = 8 mm
- D = 50 mm
- A = 10 mm
- C = 16 mm
