Steel T-slot plate "Big Block" 11060
Steel T-slot plate "Big Block" 11060

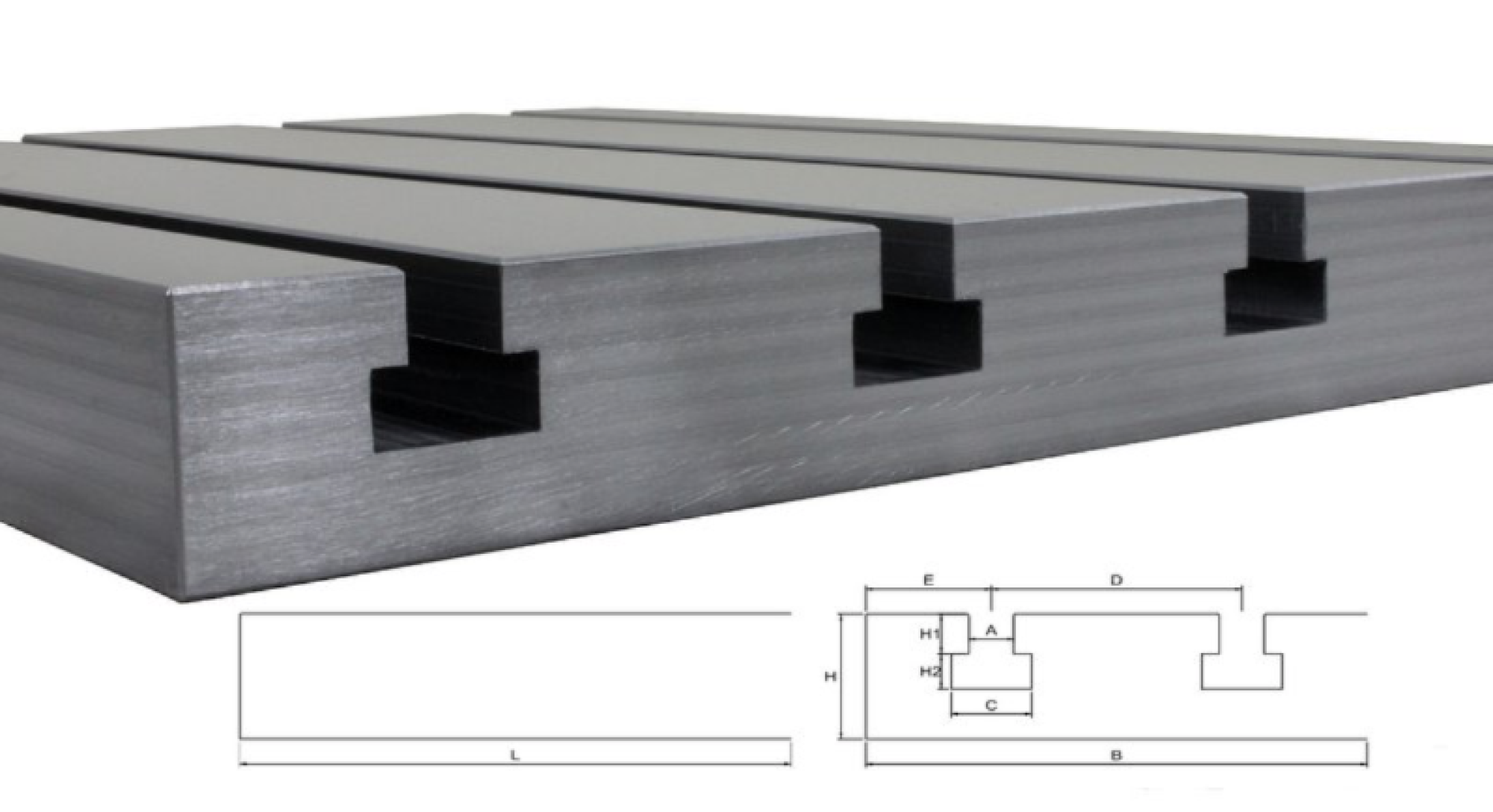

The T-slot plate is supplied with a smooth, closed bottom; that allows you to suck the plate on a vacuum table. For mounting on a machine table / frame holes will be drilled at a appropriate position. You can do this by yourself or take advantage of our service.Technical data:
- made for T-Slot nuts according to DIN508
- Tolerance/Precision: +/- 0.01 mm /150 mm
- L = 1100 mm
- B = 600 mm
- H = 50 mm
- H1 = 16 mm
- H2 = 14 mm
- D = 100 mm
- A = 18 mm
- C = 32 mm
- E = 50 mm
Please write to us. We would be glad to provide you with an individual offer including transport costs.
