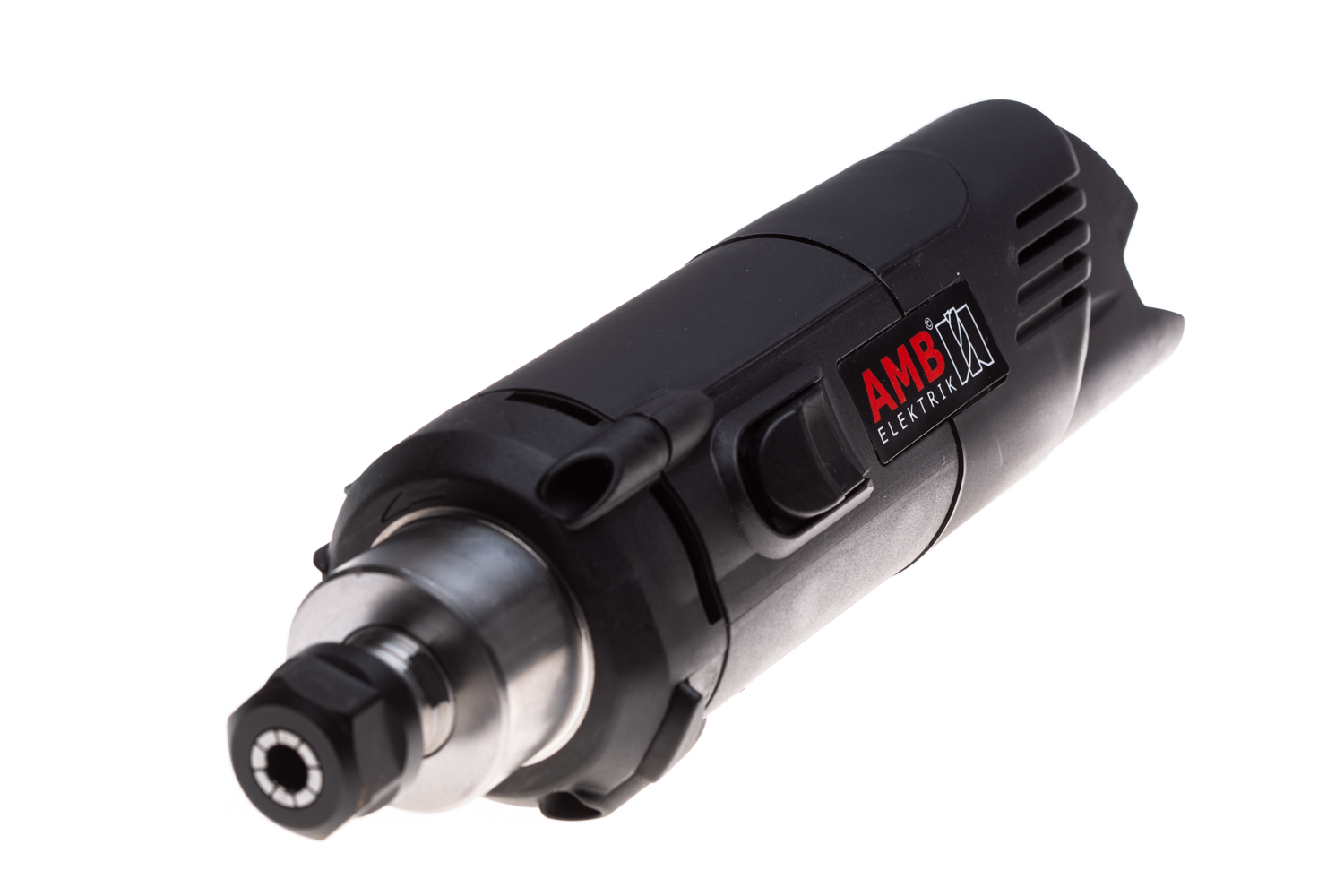

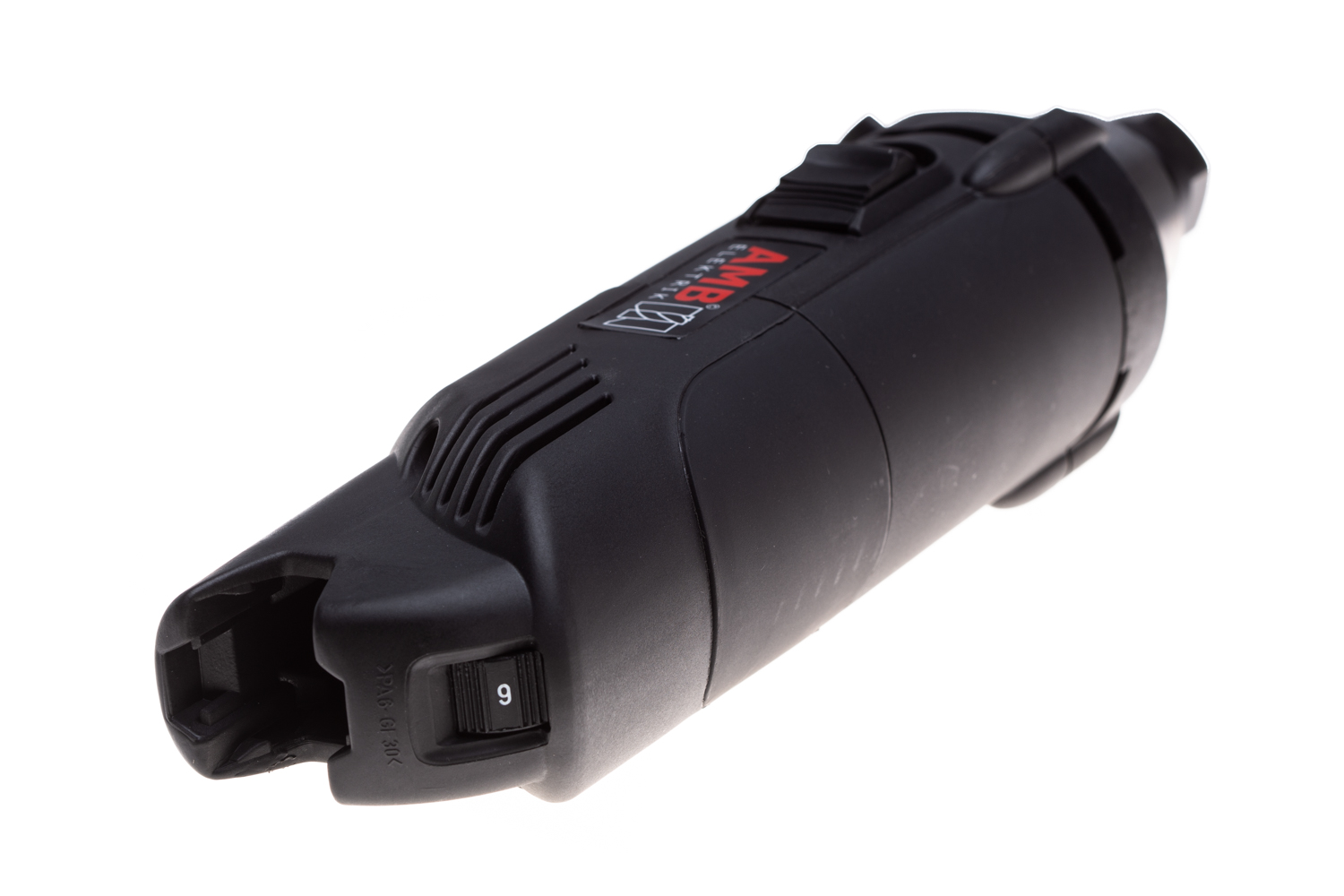

AMB FME-P 1050
AMB FME-P 1050
06082701
Highlights:
- 3 x better repeatabilty of concentricity
- Ground cone: guaranteed concentricity in the cone < 0,05 mm

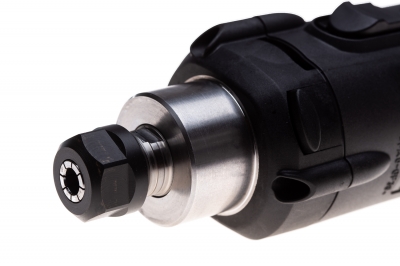

- Collet system ER 16 with balanced clamping nut
Attention: Only ER-16 collets fit! AMB / Kress collets do not fit!
Technical details
Power : 1050 Watt/ 230 V
Revolutions: 5,000 - 25,000 rpm
Mounting: Ø 43 mm
Weight: 1.7 kg
Product Description:
- Removable Cable 4 m
- Full wave electronics for constant performance and speed
- Soft-start and starting current limitation
- Special winding protection for the motor against dust and particles
- Steel motor flange with double bearing for high loads
- Spindle lock for easy tool chang
- Electronic overload protection prevents overheat of the motor
- Special switch off conductor brushes to protect motor
- Includes ER16 8mm collet
Delivery content
- Spindle motor 1050W

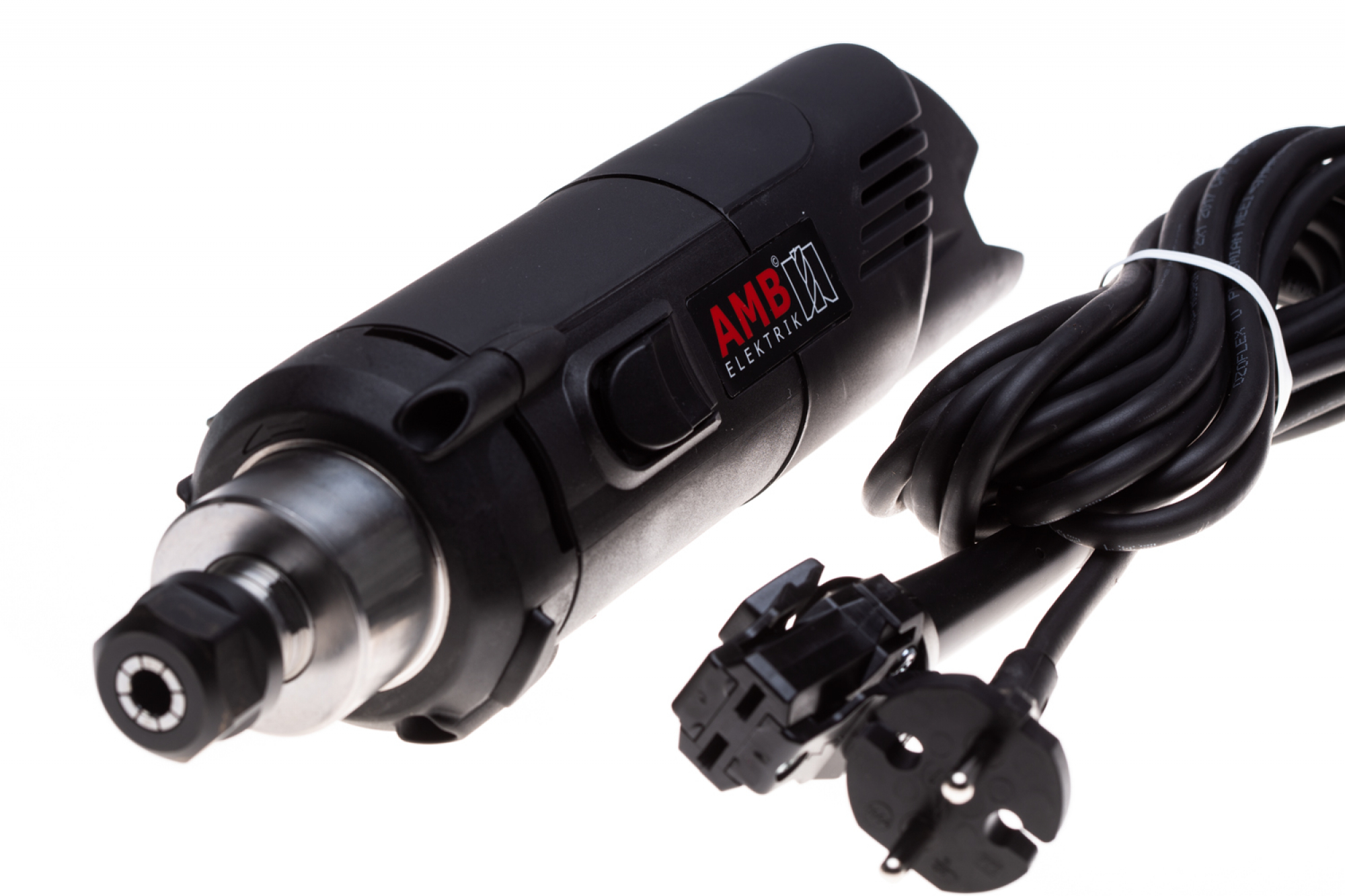

- 4m power cord with patented quick release
- ER 16 balanced clamping nut
- 8mm ER16 collet
- Instruction manual
Datasheet AMB FME 1050 P (german)Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
