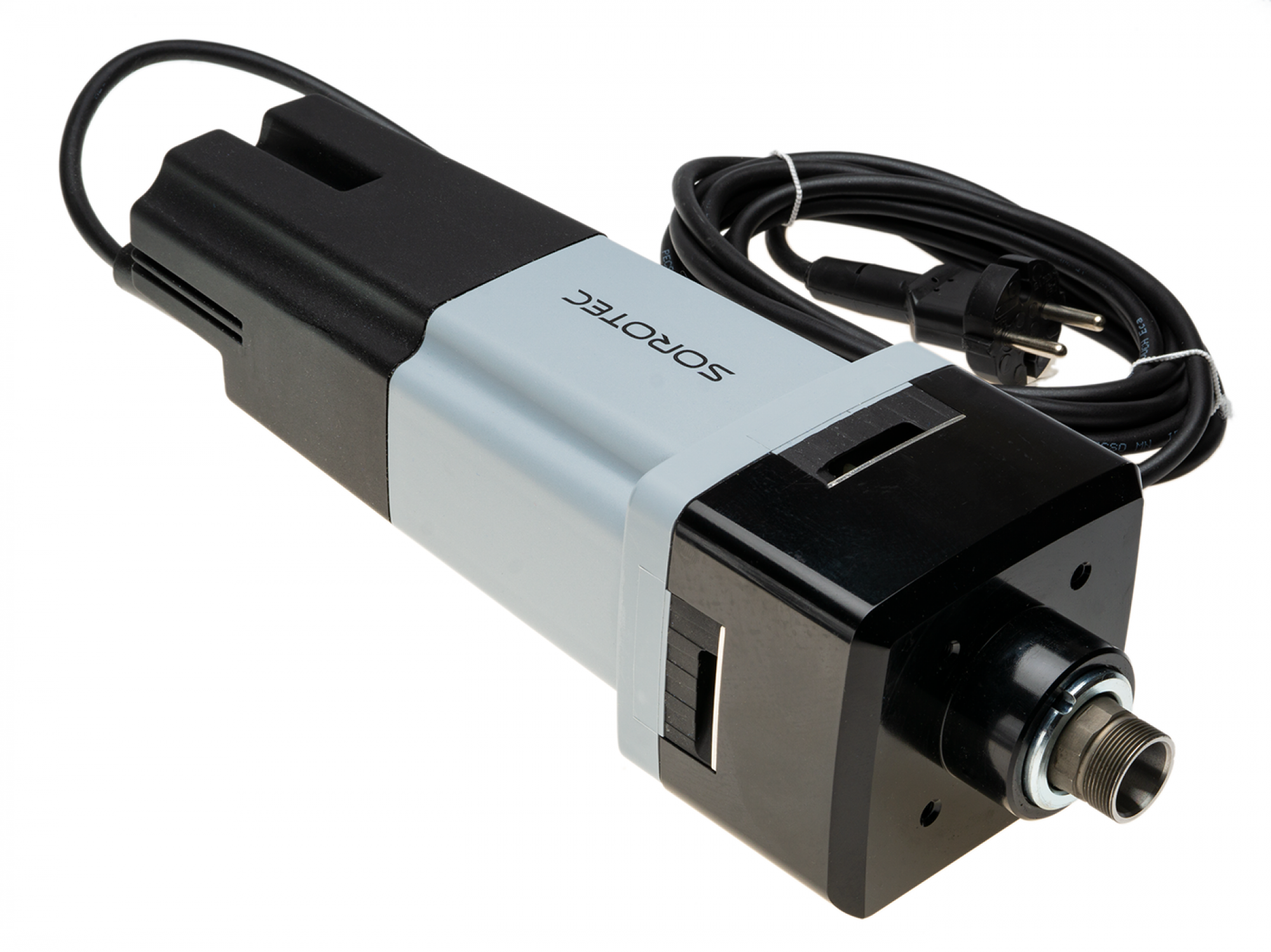

Milling Motor Sorotec SFM 1650NC-LO
OEM version of the Mafell FM 1650 NC-LO
New version with high-quality angular contact ball bearings for reduced axial play and new PV cable with greatly increased reliability.
Includes four collets: 3.175, 3, 6 and 8 mm
Also included: control line for 0 ... 10 V signal for speed control
Can be mounted on a clamping neck or on the back.
Duo-In: The speed can be infinitely adjusted to any application, either manually or via the portal interface (0 ... 10 V).
Overload indicator with LED status display, can also be evaluated externally via connector pin.
The top model of the FM series as an OEM from Sorotec. Of course, without compromising on quality and features. 1650 watts, perfect precision, more is not possible in this class.

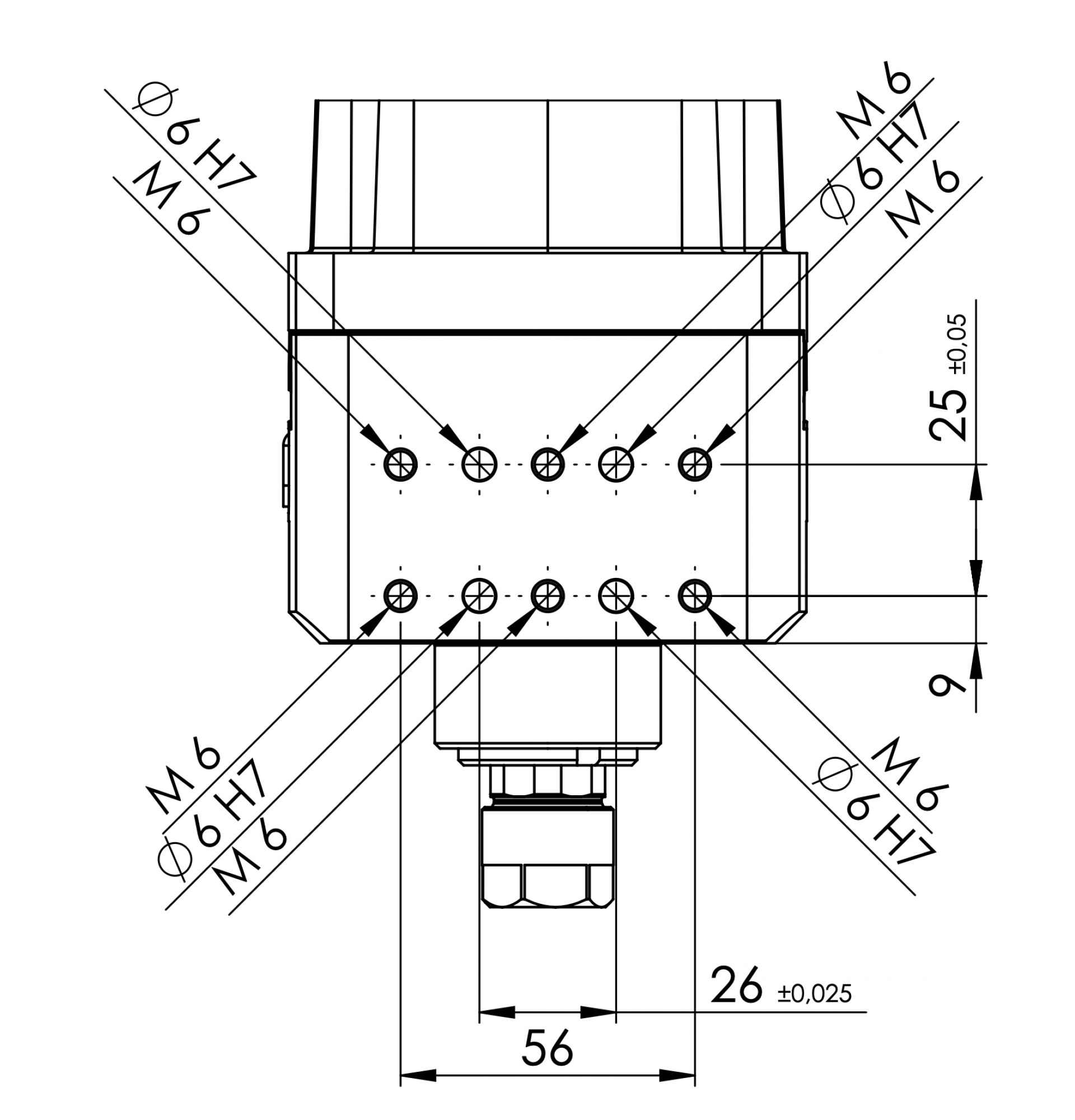

As an alternative to clamping on the clamping neck, the FM 1650 PV-LO can also be screwed directly to the Z axis on the back. The result is higher rigidity and better moment support.
Useful and proven features of the smaller motors have been retained: The speed can be steplessly adjusted to any application, either manually or via the portal interface. In addition, the digital electronics are equipped with soft start, constant speed under load, no-load speed reduction and overload protection.

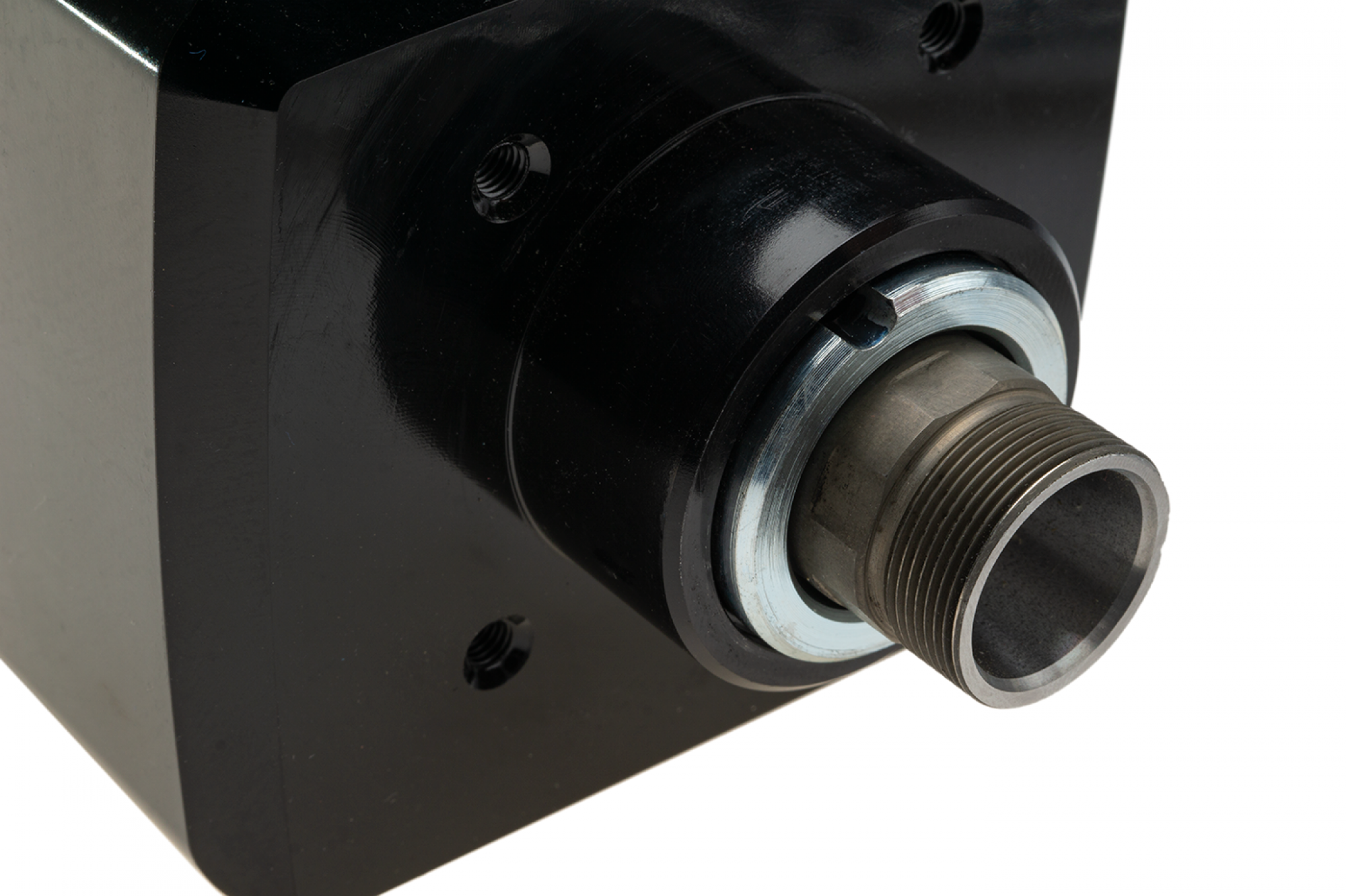

The manufacture of the armature and spindle from one piece and the joint balancing result in exemplary high concentricity. For simple and convenient tool changes, the spindle can be locked at the push of a button - an open-end wrench is sufficient as a tool for changing the cutter.
Please note:
You can only use standard OZ12 collets with this milling motor.
| Technical specifications: | |
| Rated current consumption: | 1,650 Watt |

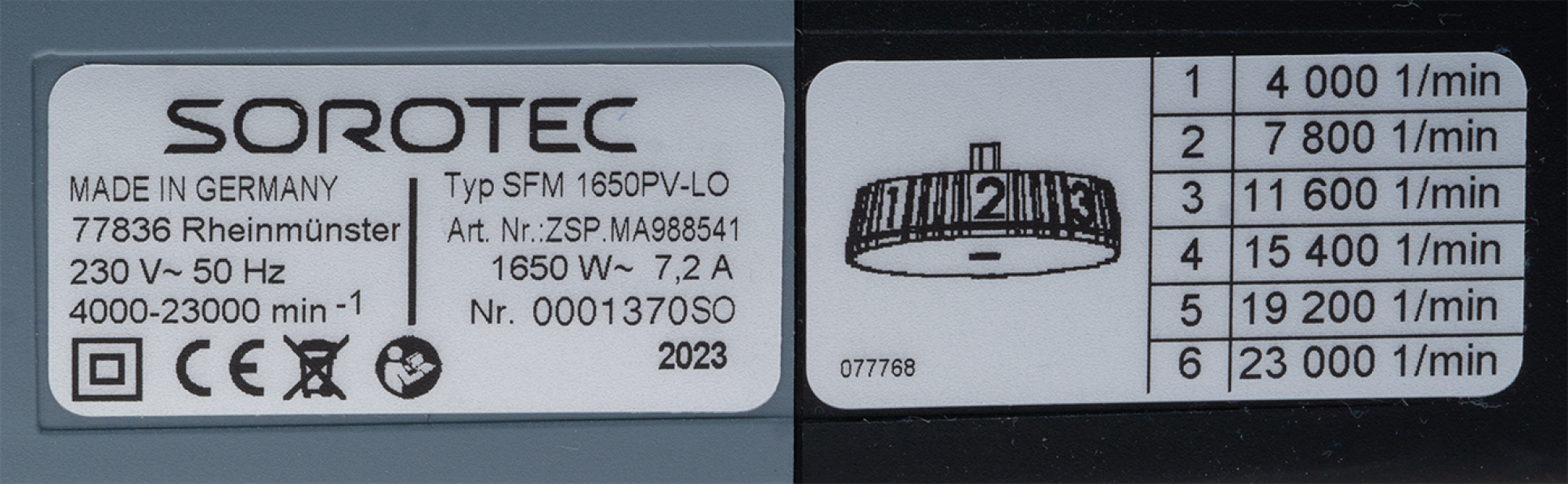

| Nominal idle speed: | 4,000 ... 23,000 rpm |
| Tension clamp: | 43 mm |
| Direct screwing | 6 x M6 |
| Dimensions L x H x W: | 346 x 98 x 86 mm |
| Sound pressure level db (A): | 81 |
| Weight: | 3.22 kg |

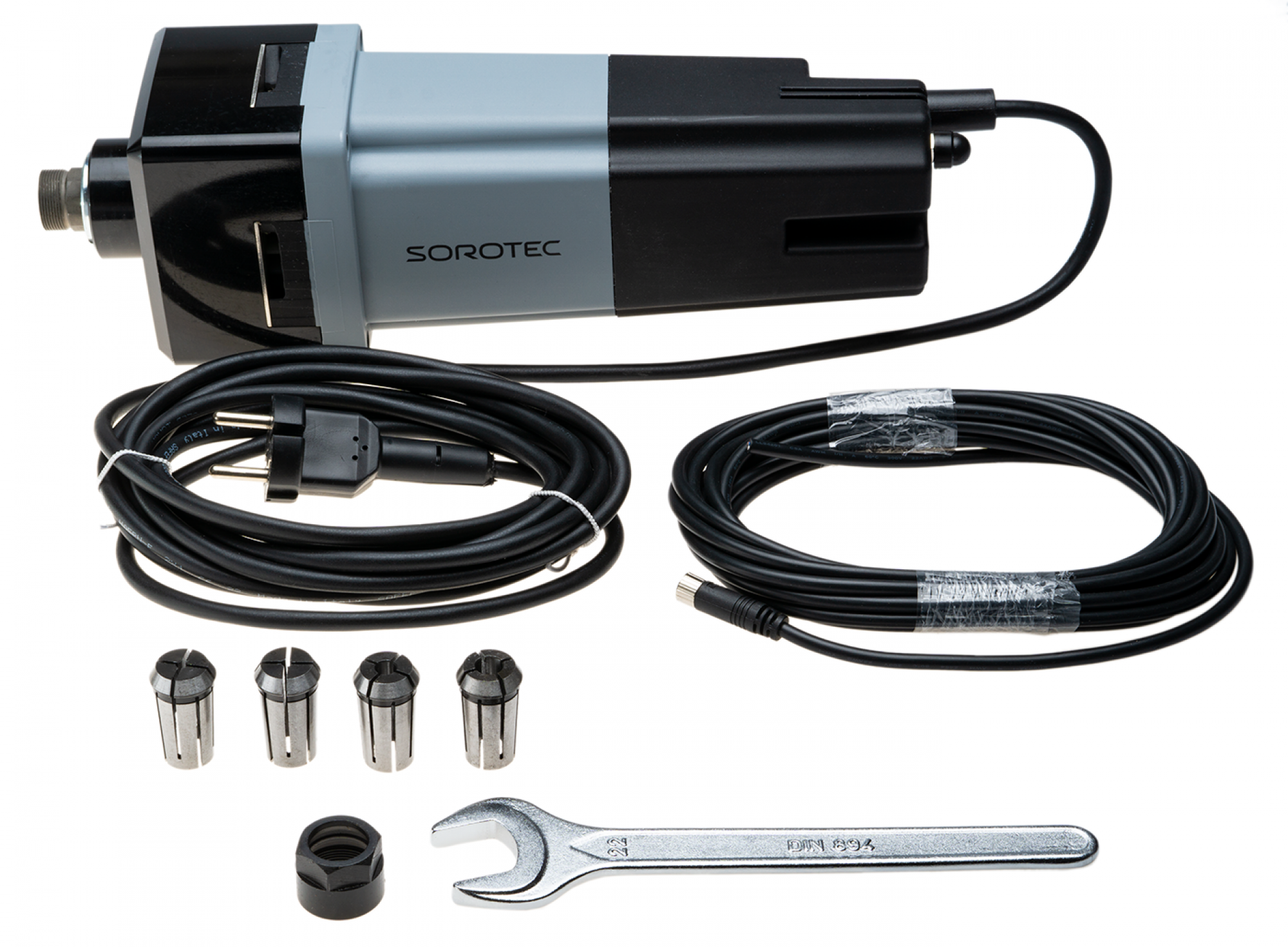

Scope of delivery:
- Milling motor SFM 1650NC-LO
- Collets OZ12 3.175, 3, 6 and 8 mm
- Union nut
- Open-end wrench SW 22
- Power cable 4 m
- PV control line 5 m for 0 ... 10 V signal
