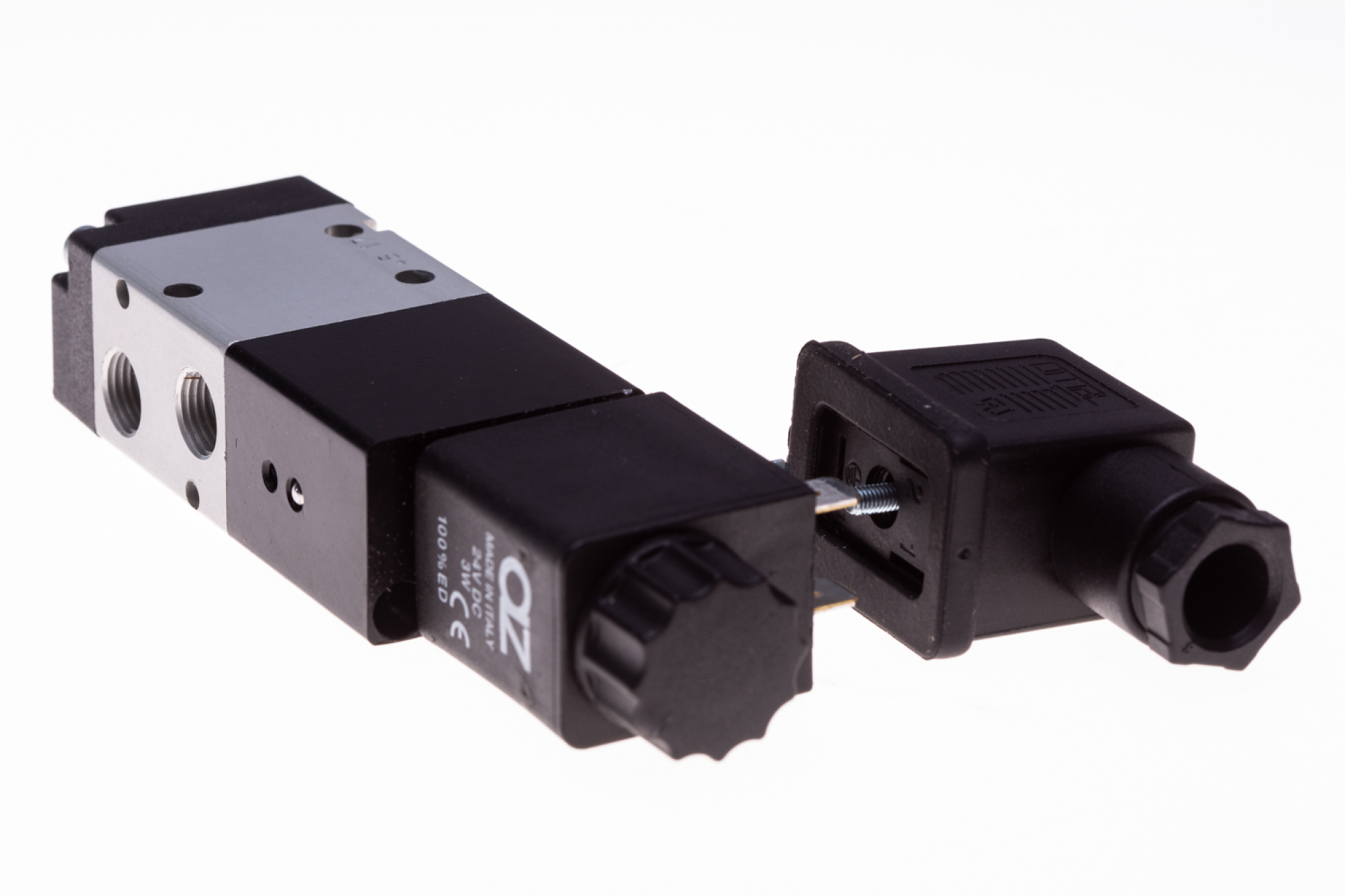

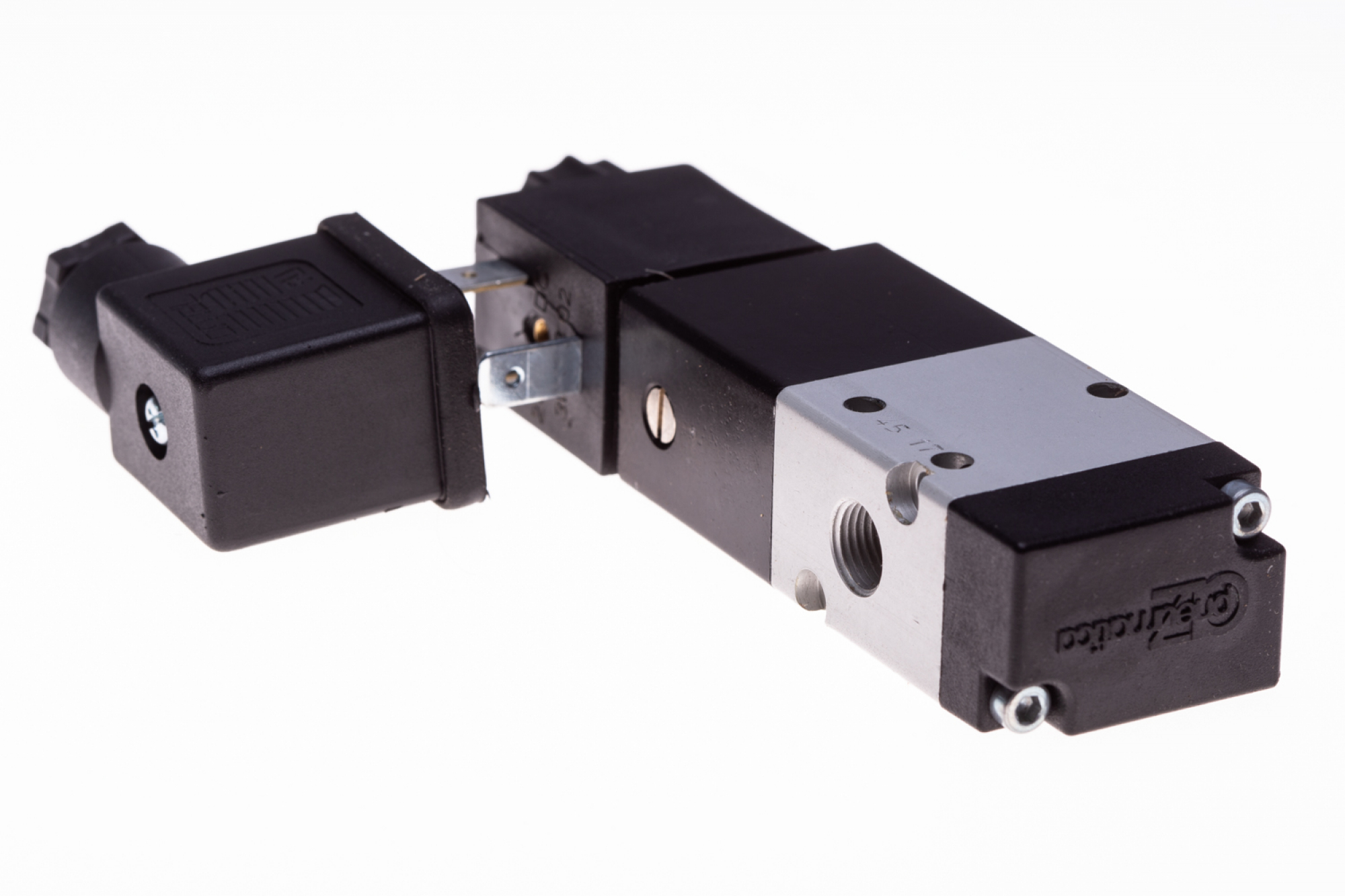

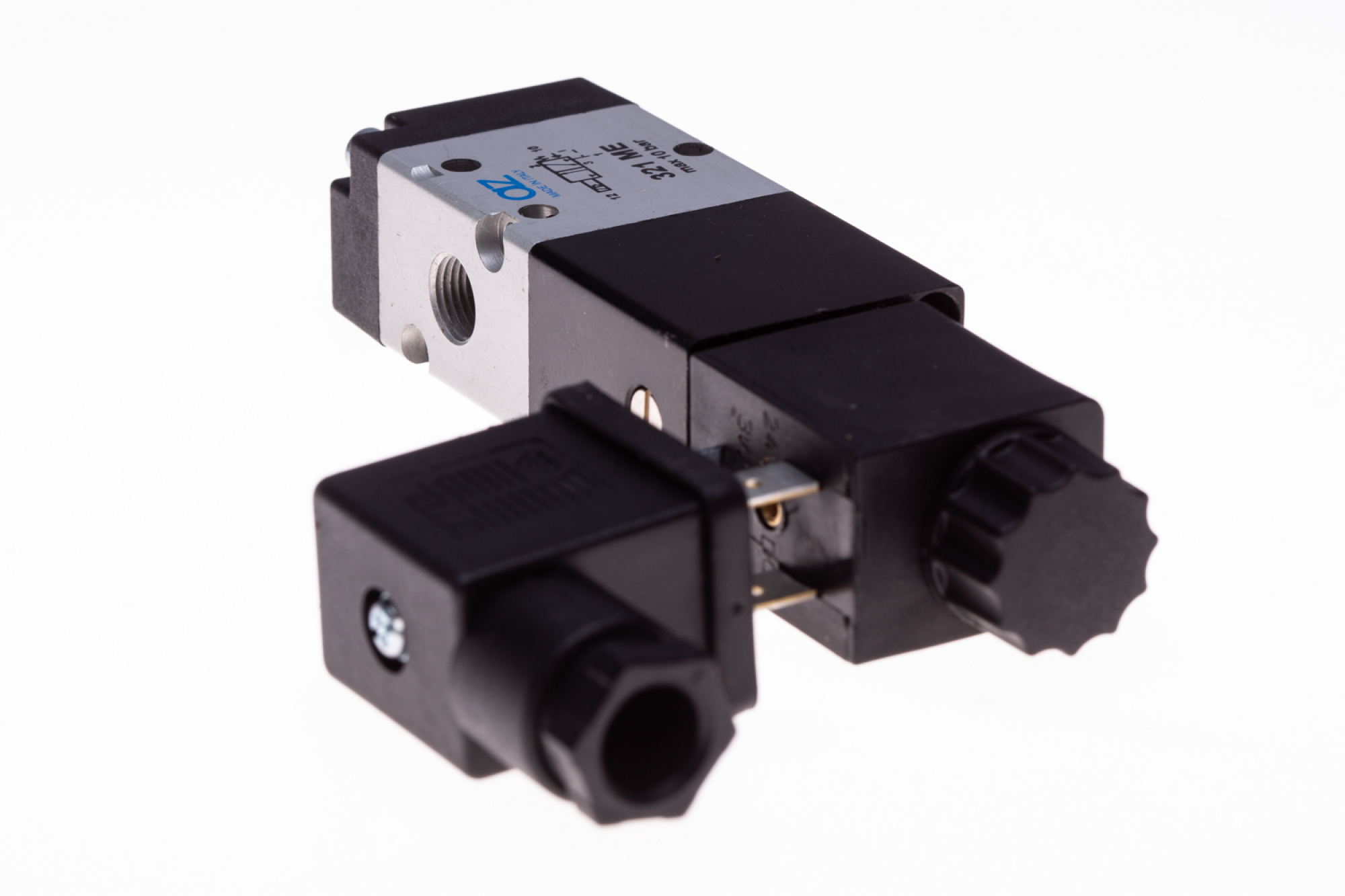

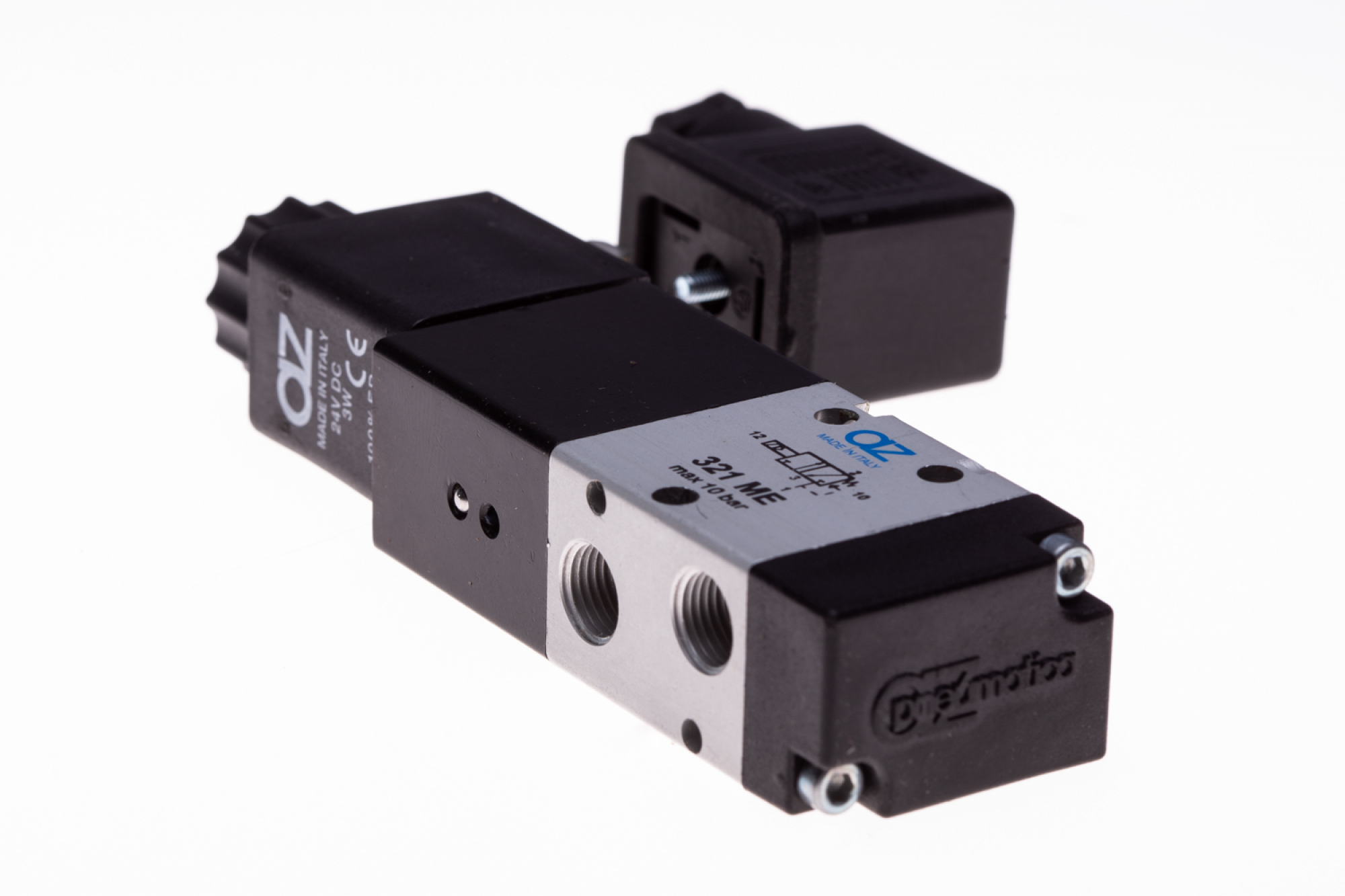

230 V Solenoid valve 1/8" 3/2
3/2 ways-Solenoid valve
230V
incl. Connector plug DIN 43650
Examples of practical uses:
- Control of the minimal cooling spray
- Control of the pneumatic tool changer
Technical Specifications
- Connection: G 1/4
- Nominal size: 1,1 mm
- Working pressure: 2 ... 10 bar
- Medium: 50 µ filtered, greased or oilless compressed air
- Nominal flow: 30 L/min at 6 bar and 1 bar pressure difference
- Temperature: max. + 60 °C
- Switching time: On: 13 ms / Off: 20 ms
- Manual emergency actuation: yes / no bei Batteriemontage
Materials:
- Valve housing: Aluminium anodized
- Inside part: Brass MS58
- Gasket: NBR
- Pressure spring: Stainless steel
- Plunger: Aluminium nickel-plated
