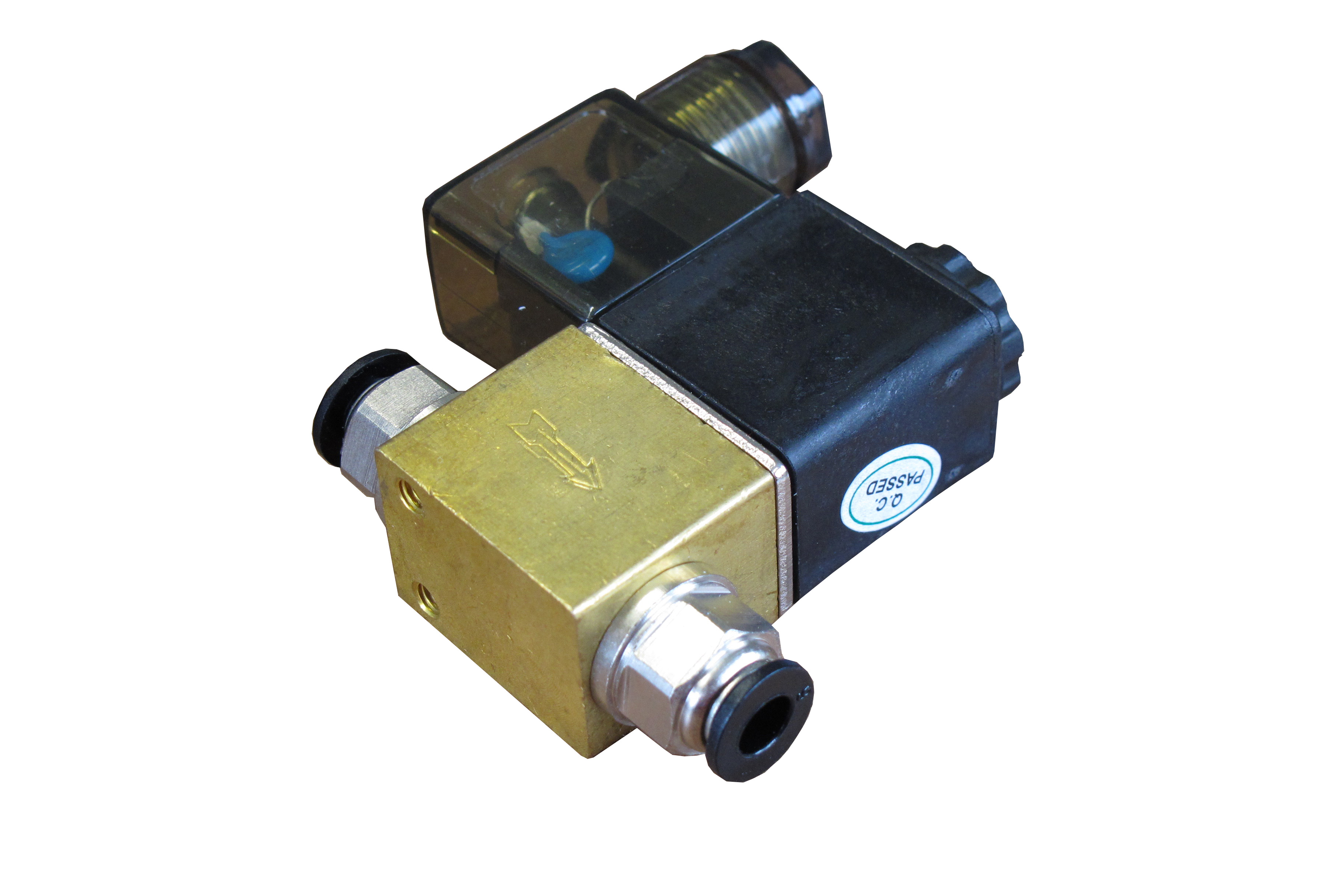

230 V Solenoid valve 1/4" 2/2
Direct acting 2-Way-solenoid valve, normally closed, no minimum pressure required, connections with female thread G 1/4", complete with push-in fittings for 6 mm hose, for 230 V AC, fully assembled.
Special coil with low temperature rise. Many products in the market have rise in coil temperature in operation of 60 °C and more, 2V025-08 uses a special coil with 45 °C temperature rise only. This is an important feature when used for cooling in connection with easily inflammable liquids.
This solenoid valve is widely-used in the control of air systems.
Technical Data:
Operating voltage: |
230 V AC |
Operating current: |
20 mA |
Screw thread: |
G 1/4" |
|
Hose fitting: |
6 mm |
|
Working pressure: |
0 ... 8 bar |
|
Max. permissible pressure: |
12 bar |
|
Permissible fluids: |
air, water, oil |
|
Working temperature: |
-5 °C ... 80 °C |
|
Temperature rise coil: |
45 °C |
|
Orifice: |
2,5 mm |
|
Weight incl. packaging: |
255 g |
Lieferumfang:
- 1 × solenoid valve with coil
- 1 × plug for solenoid coil
- 2 × push-in fittings for 6 mm hose
