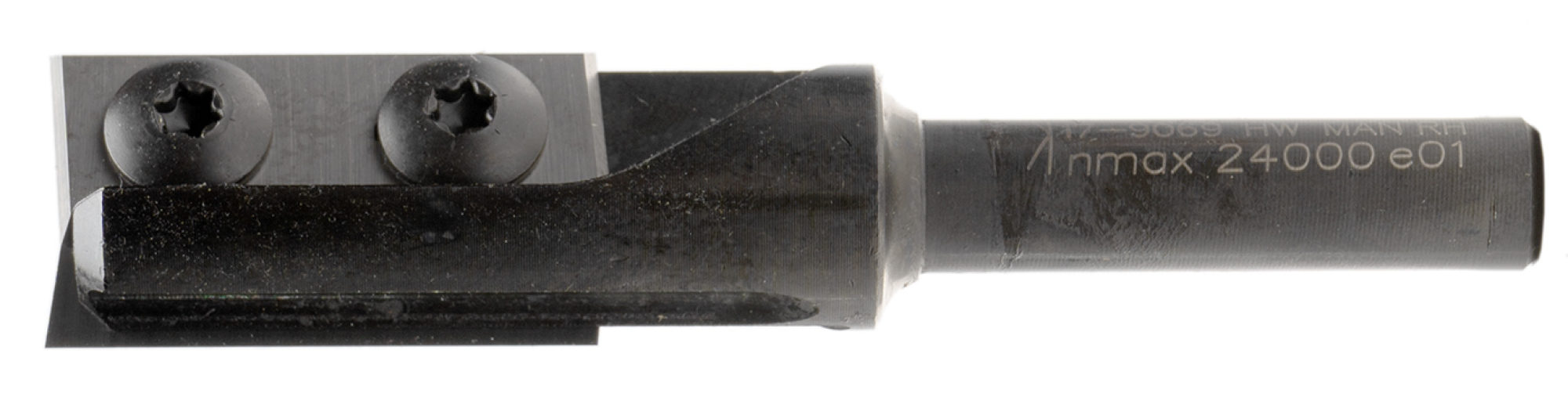

Slotting Cutter with changeable knives Ø 16 mm, S12
Slotting Cutter with changeable knives

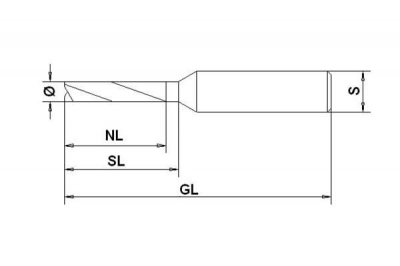

Straight bit with two interchangeable, Allen key screw fixed knives. To enable better immersion, the cutting edges have a 3° angle at the top.Technical Specifications
- Slotting Cutter Ø 16 mm
- Z (Teeth): 2
- S (Shank): 16 mm
- SL (Spiral Length) 28.3 mm
- GL (Overall length): 87 mm
For milling grooves and pockets as well as for cutting out contours. Also suitable for large-scale removal of material (solid wood, plywood or coated boards).
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
