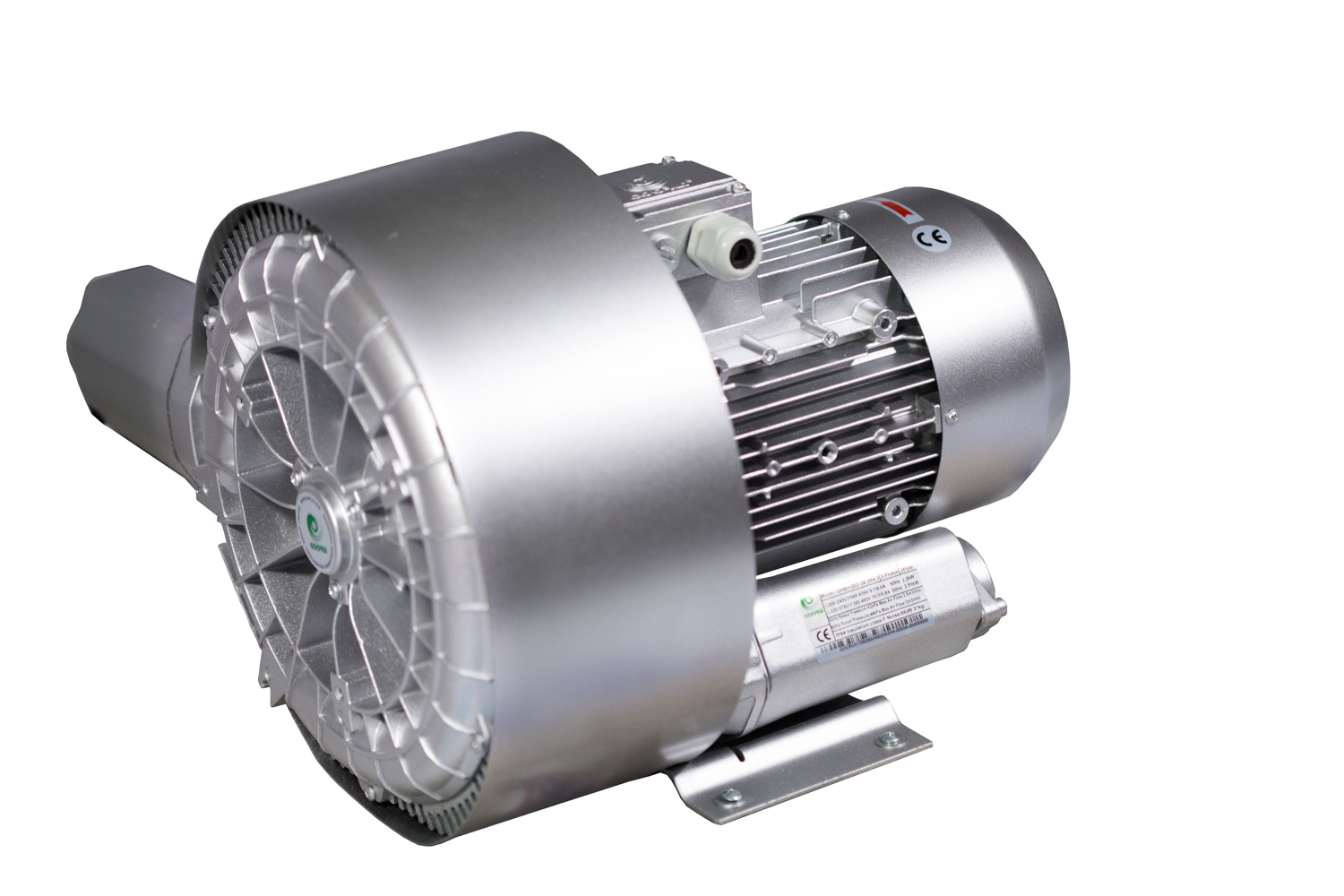

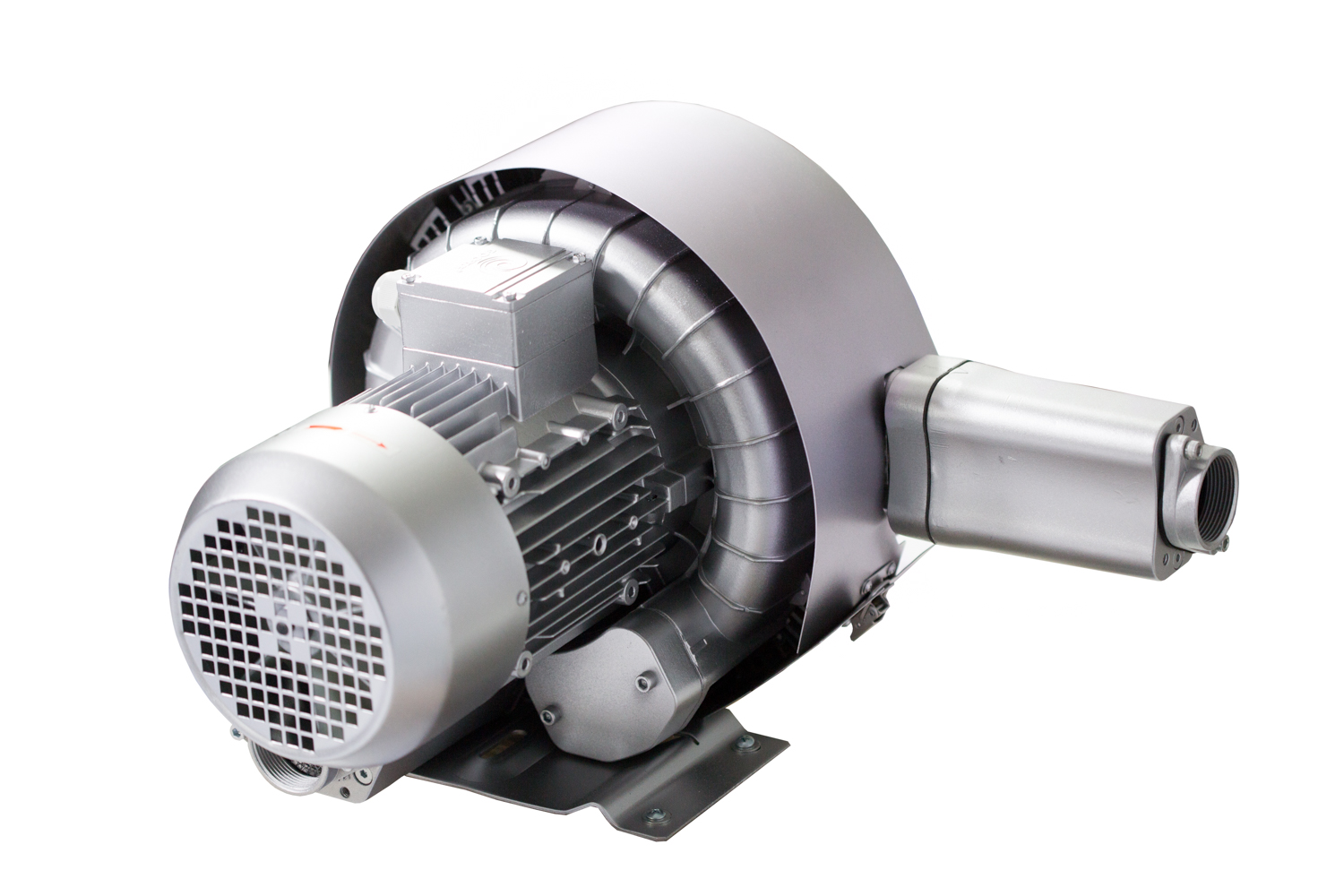

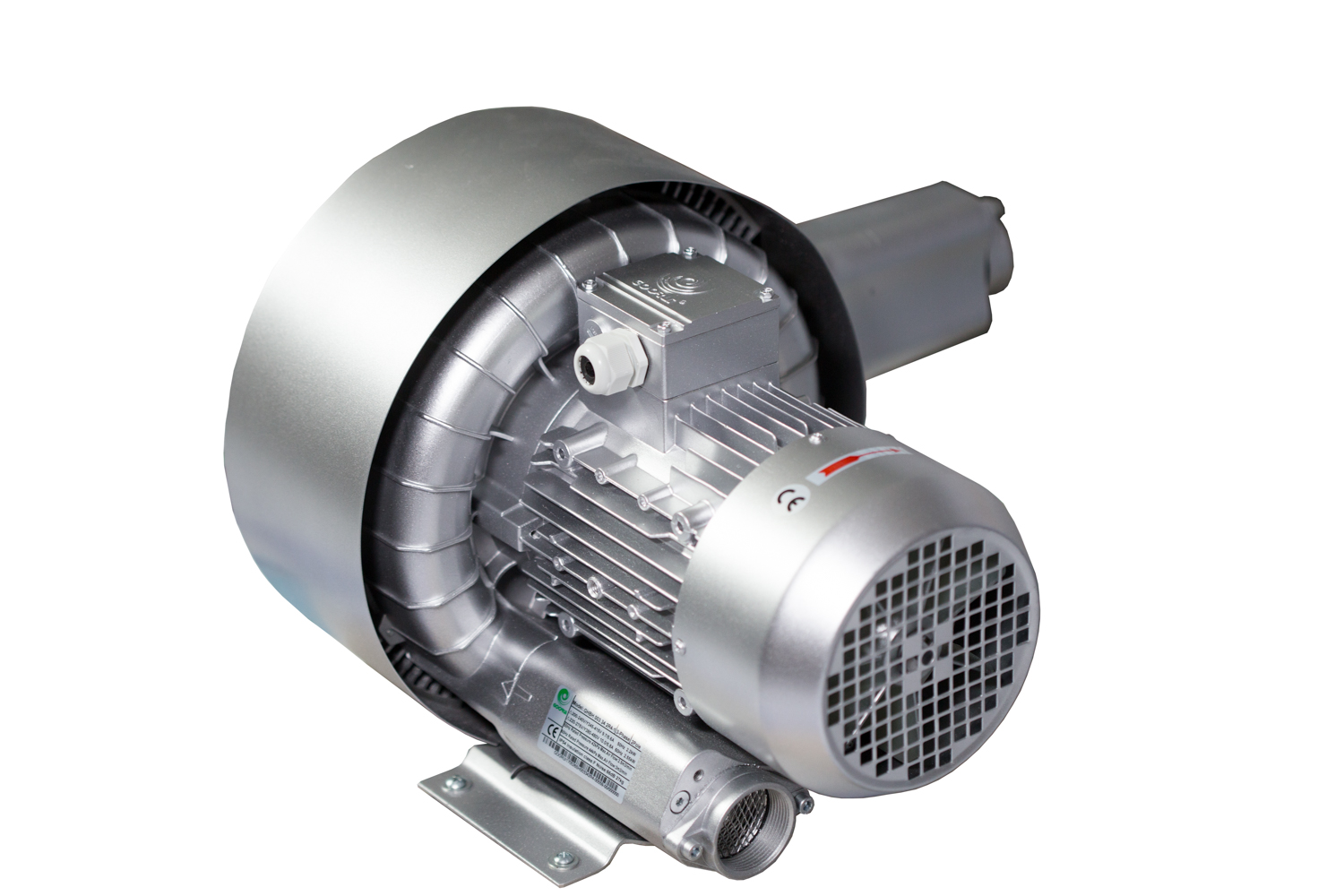

Side channel blower 0,7 kW
Side channel blower 0,7 kW, -210 mbar, 88 m³/h, 2 stages, 0,7 KW/230 V/1Ph
The advantages of the Side channel blower are:
- Economical and environmentally friendly,
Side channel blower stand out due to their low energy consumption. They are quiet and environmentally friendly as a result of oil-free compression. - Compact design
The motor is directly flange-mounted to the pump. - Low maintenance
Robust design, lifetime lubricated bearings and surface cooled motor guarantee a long service life for the pump.
- Connector: G 1 1/4"
- Power: 0,7 kW
- Voltage: 230 V/1Ph
- Ampacity: 4,5 A
- Maximum flow rate: 88 m³/h
- Maximum static pressure: - 210 mbar
- Maximum static vacuum: 240 mbar
- Noise level: 55db (A)
- Dimensions: 325 x 285 x 275 mm (L x W x H)
- Weight: 15 kg
Data sheet (german)
3-D-Draft (stp)Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
