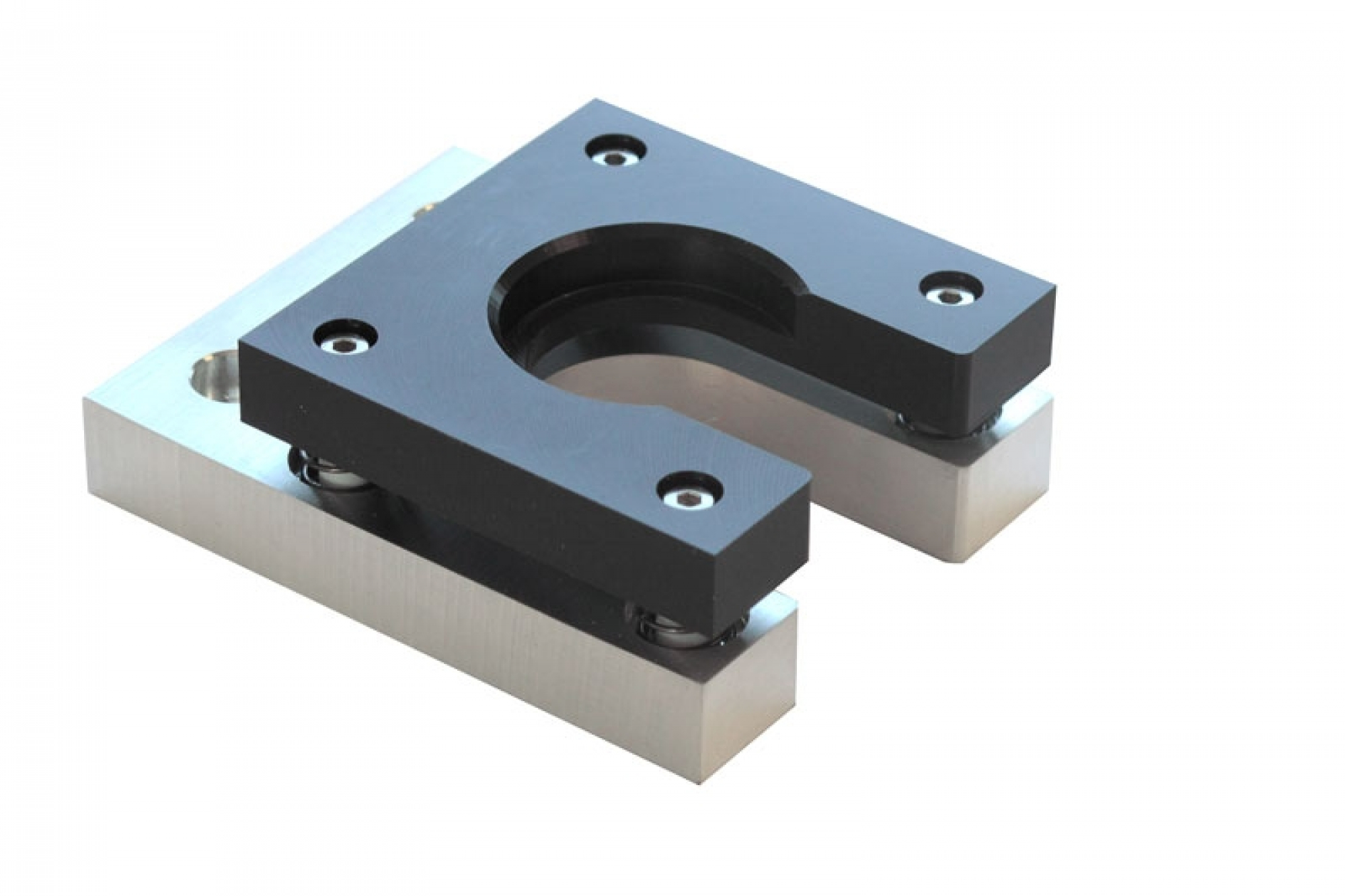

SK20 Tool tray spring loaded
SK20 Tool tray spring loaded

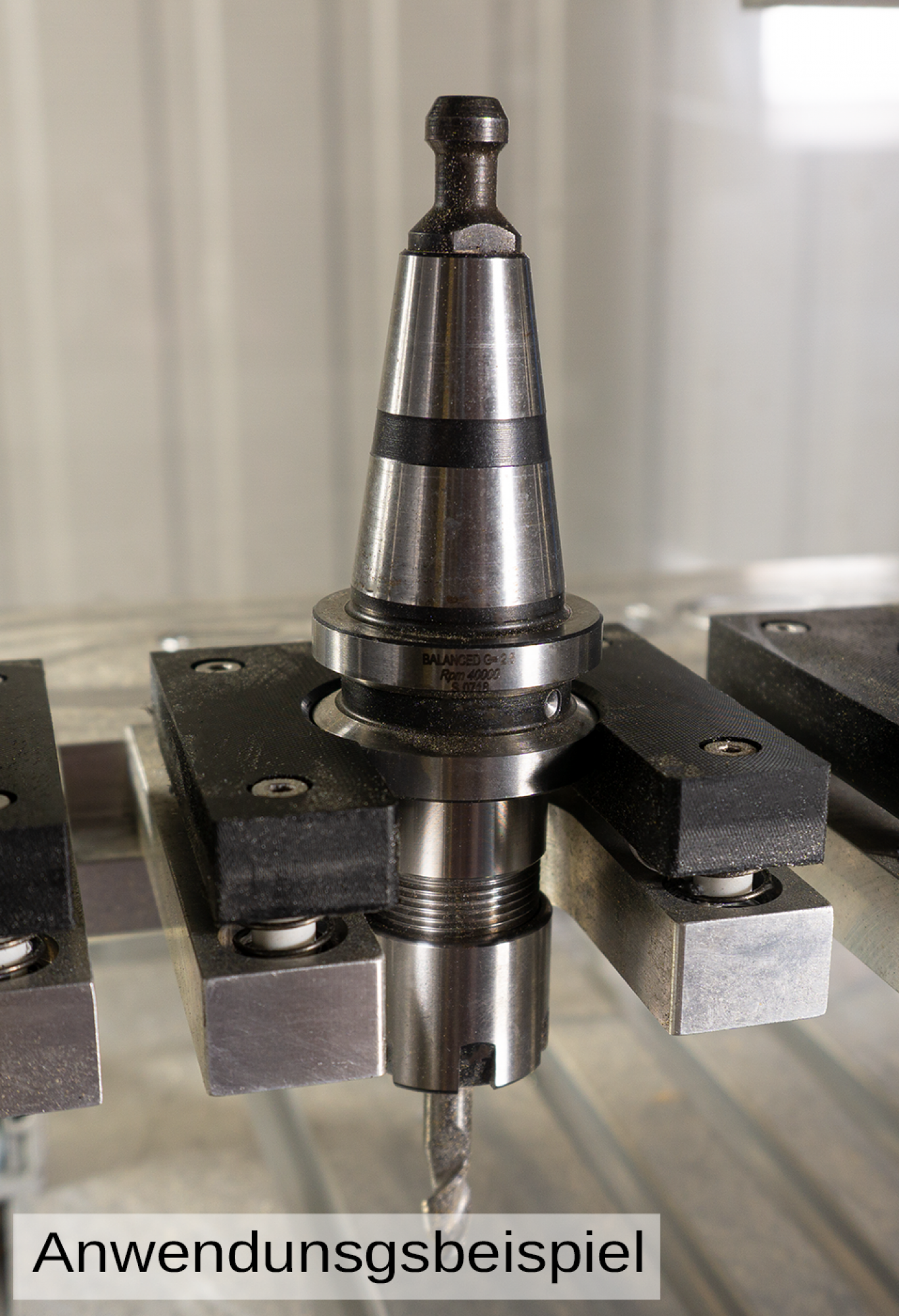

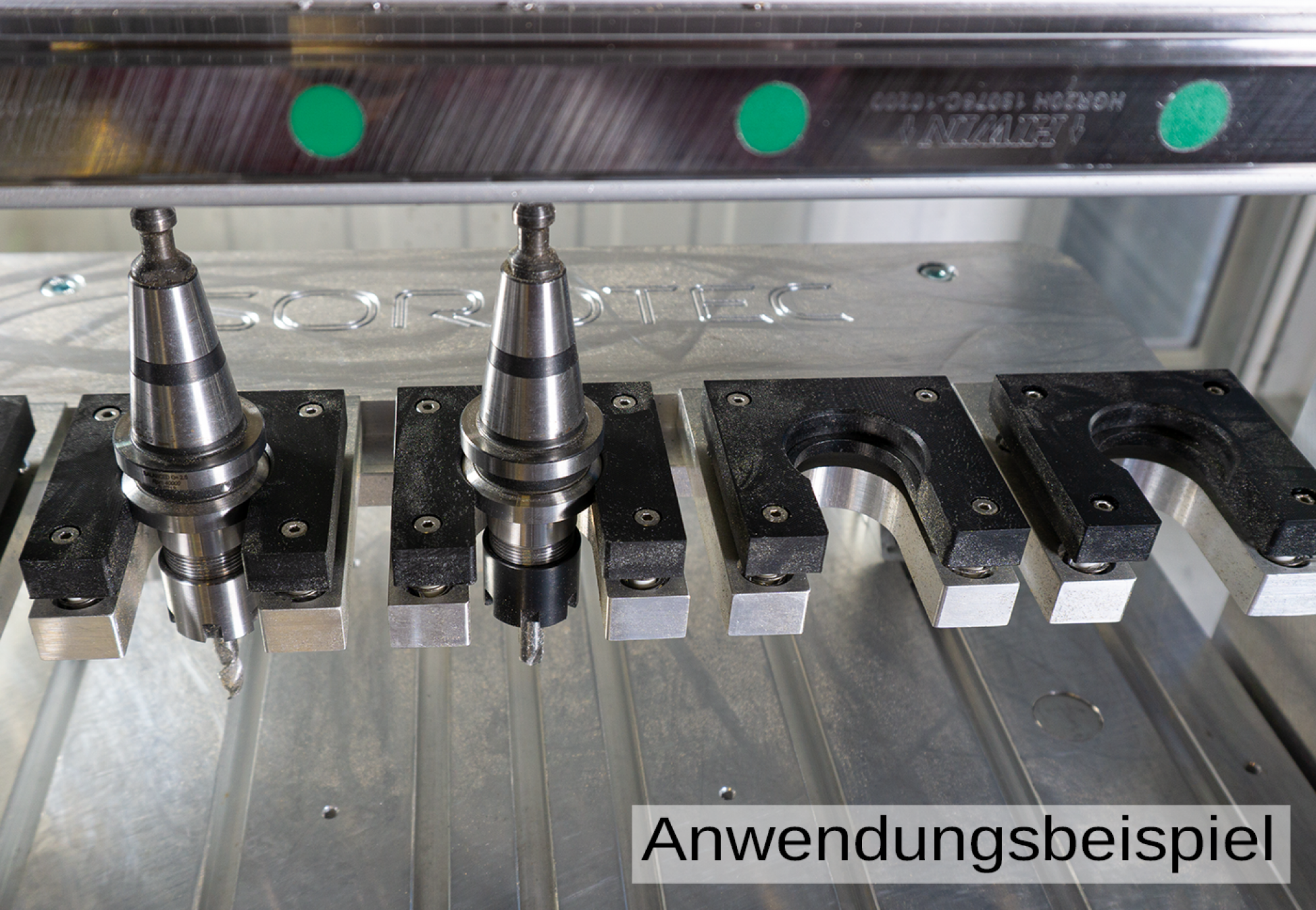

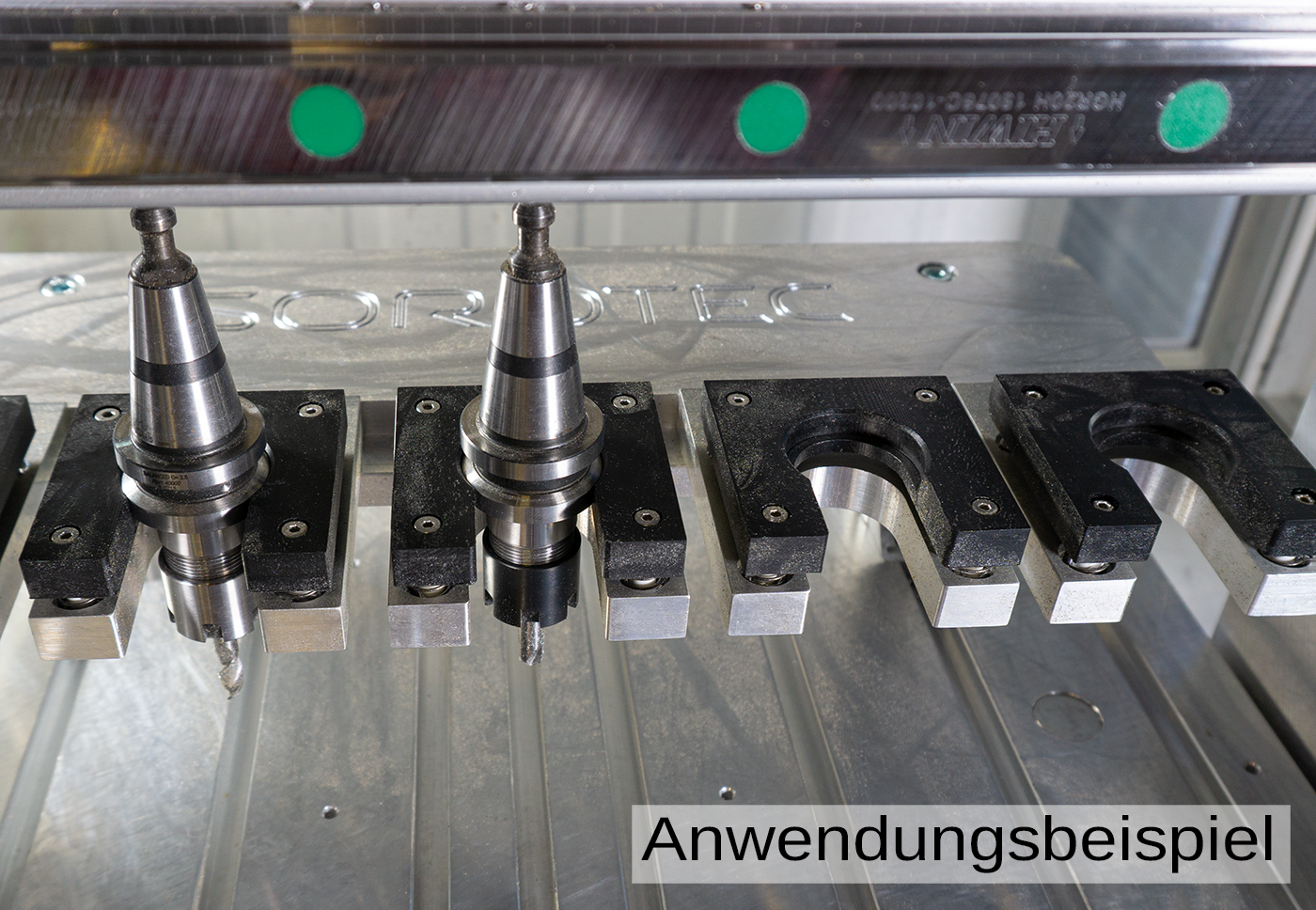

These modular tool holders enable the construction of tool magazines with any number of tool places.
The SK20 / SK30 modules are spring-loaded for a secure clamping of the tool holder. In this way, incorrect clamping and the resulting damage to the grippers in the spindle are optimally prevented. The tool is also gently put down again due to the spring action.
The spring travel is 5 mm and is therefore also suitable for spindles that eject the tool more powerfully.
Suitable for SK20 cones

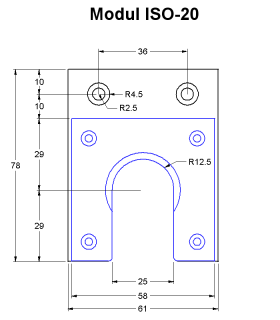

Dimensions:
B: 61 mm
L: 79 mm
H: 26 mm
The SK20 / SK30 modules are spring-loaded for a secure clamping of the tool holder. In this way, incorrect clamping and the resulting damage to the grippers in the spindle are optimally prevented. The tool is also gently put down again due to the spring action.
The spring travel is 5 mm and is therefore also suitable for spindles that eject the tool more powerfully.
Suitable for SK20 cones
Dimensions:
B: 61 mm
L: 79 mm
H: 26 mm
Information sheet for tool holder magazinesManufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
