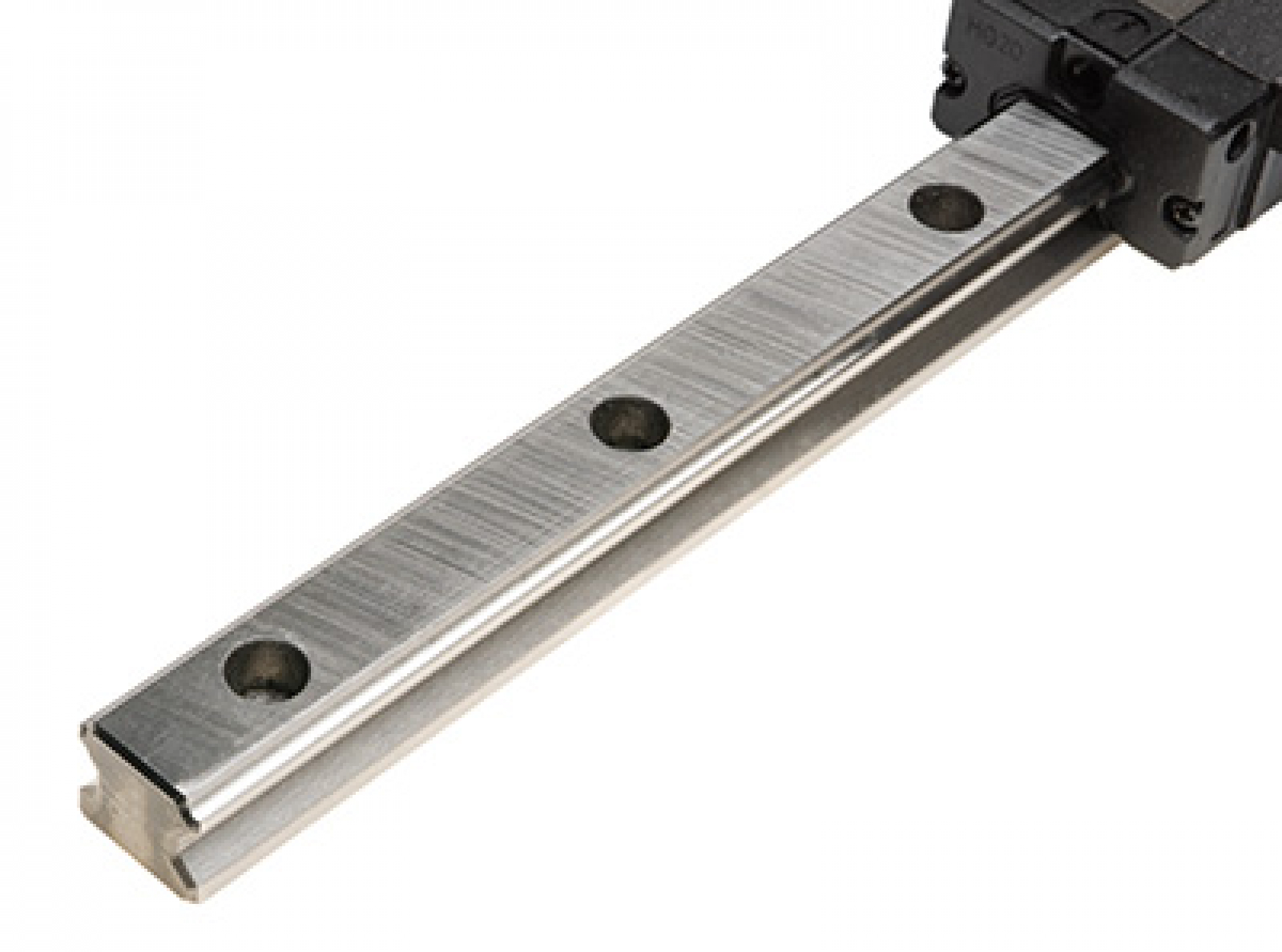

Rail Blue Line HGR30 100 cm
Rail Blue Line HGR30
fits to HG carriages
The hole spacing of the mounting holes for M8 screws is 60 mm.The hole pattern of rails arranged symmetrically. The fastening of the profile rail takes place from above by means of through holes.
Length: 1000 mm
There are also available on request special lengths.
To do this, select the next larger length and enter the desired special length in the comments section.
Example:
Desired special length: 490 mm - Select> 500 mm and enter the required special length of 490 mm in the comments section.
Cuts are excluded from exchange and return.
Datasheet (german)Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
