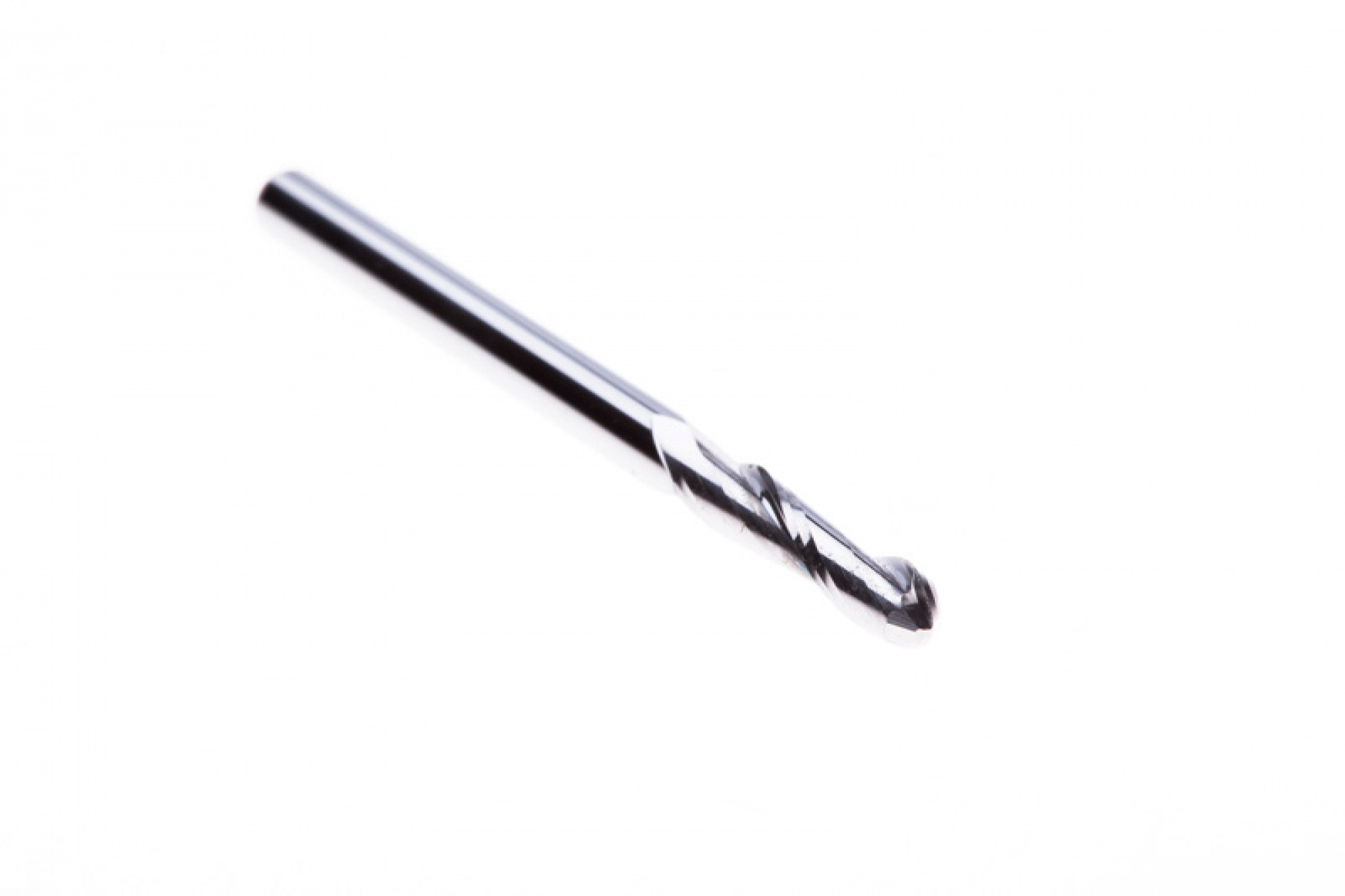

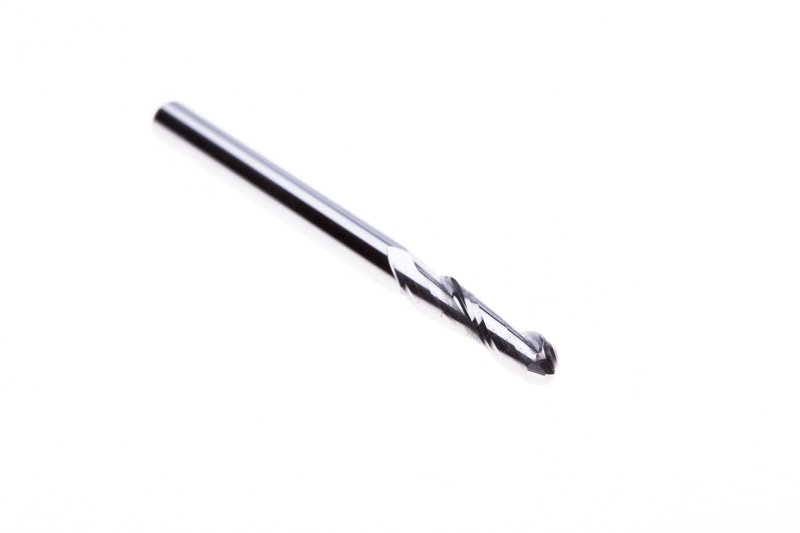

Radius Mill Z2 Ø 8 mm UNI
Technical Specifications:
- Solid Carbide-Radius Mill Ø 8 mm
- Center Cut (Diving possible)
- 30° Spiral
- Z: 2 Flute
- D2 (Shank): 8 mm
- SL (Spiral length): 20 mm
- GL (Overall length): 63 mm
Applications:
- Universal usability
- Wood
- Aluminum
- Non-ferrous metals
- Metals
Notes:
- Further diameters on request.
- 3 and 4 Flute Mills on request
- Extra long versions on request
- Coating on request
