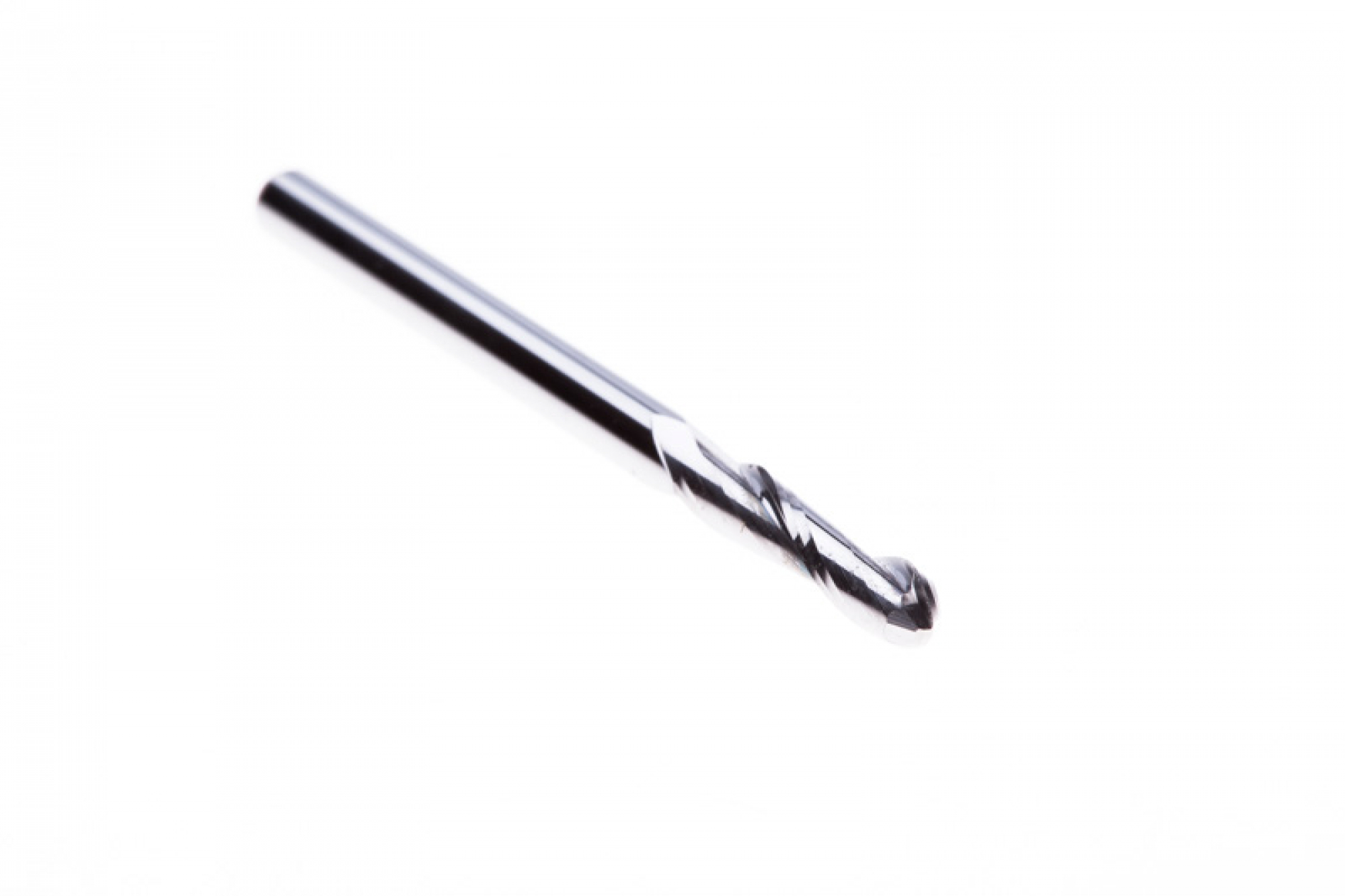

Radius Mill Z2 Ø 3 mm UNI
Technical Specifications:
- Solid Carbide-Radius Mill Ø 3 mm
- Center Cut (Diving possible)
- 30° Spiral
- Z: 2 Flute

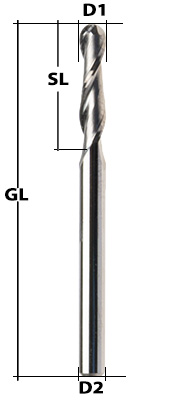

- D2 (Shank): 3 mm
- SL (Spiral length): 12 mm
- GL (Overall length): 38 mm
Applications:
- Universal usability
- Wood
- Aluminum
- Non-ferrous metals
- Metals
Notes:
- Further diameters on request.
- 3 and 4 Flute Mills on request
- Extra long versions on request
- Coating on request
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
