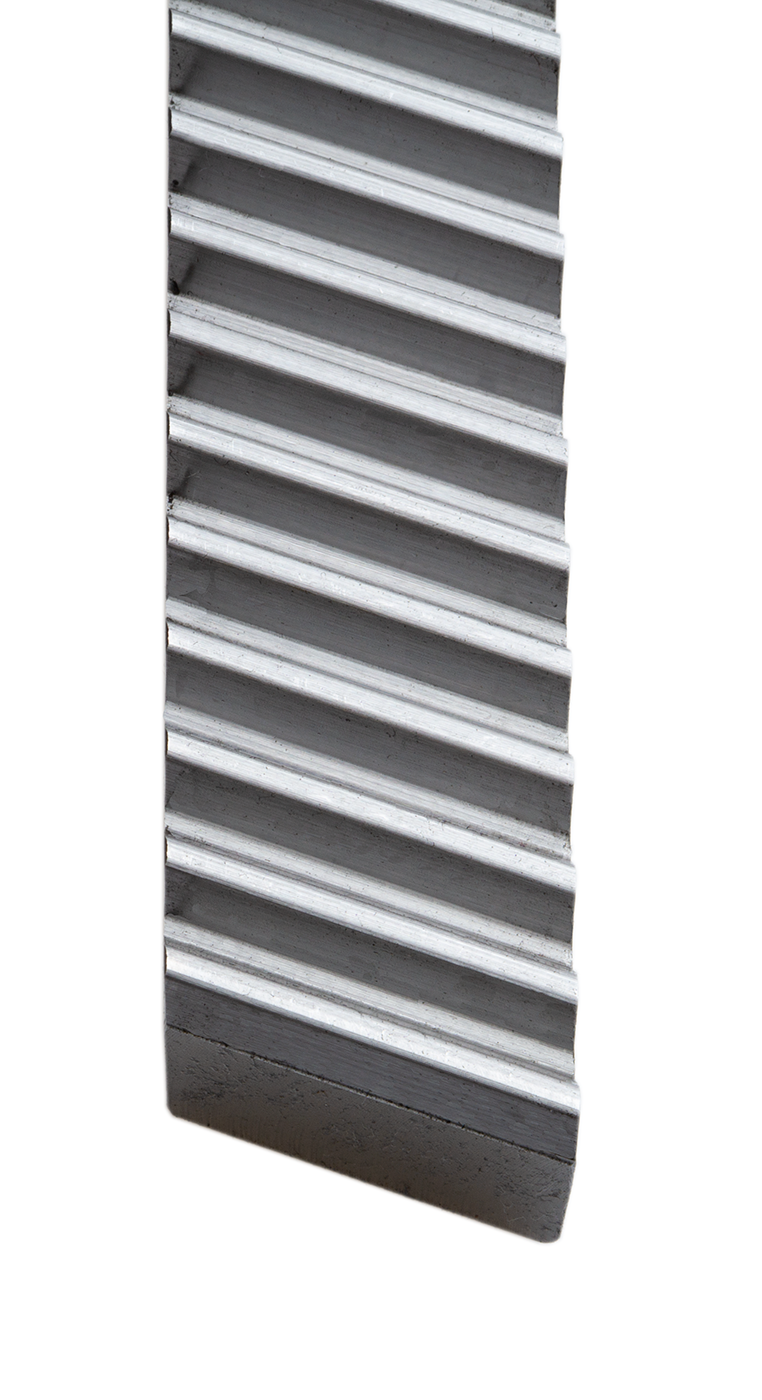

Rack and Pinion Drive Module 1.5
Length 2 m
Its high mechanical load capacity and ease of maintenance make the rack-and-pinion drive a particularly attractive solution for long travel distances. In industrial settings, rack-and-pinion drives are frequently utilized in conveyor systems. For vertical motion in particular, this approach is far simpler than, for instance, using hydraulics.
To ensure the geometrically correct alignment of the gear racks, the use of the mounting aid is strongly recommended.
Note: The stated length of the elements does not refer to the distance between the end tips, but rather to the center-to-center distance between the first and the last tooth. Please refer to the data sheet for further details.
.
Datasheet Racks and Pinions (english / german)Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
