Originally designed as a flexible mount for a dial gauge, this articulated arm also proves to be an ideal alignment aid for the spray head of a minimum quantity lubrication system. Simply loosen the large knob of the central clamp, position the spray head, and tighten the clamp again: a matter of seconds.

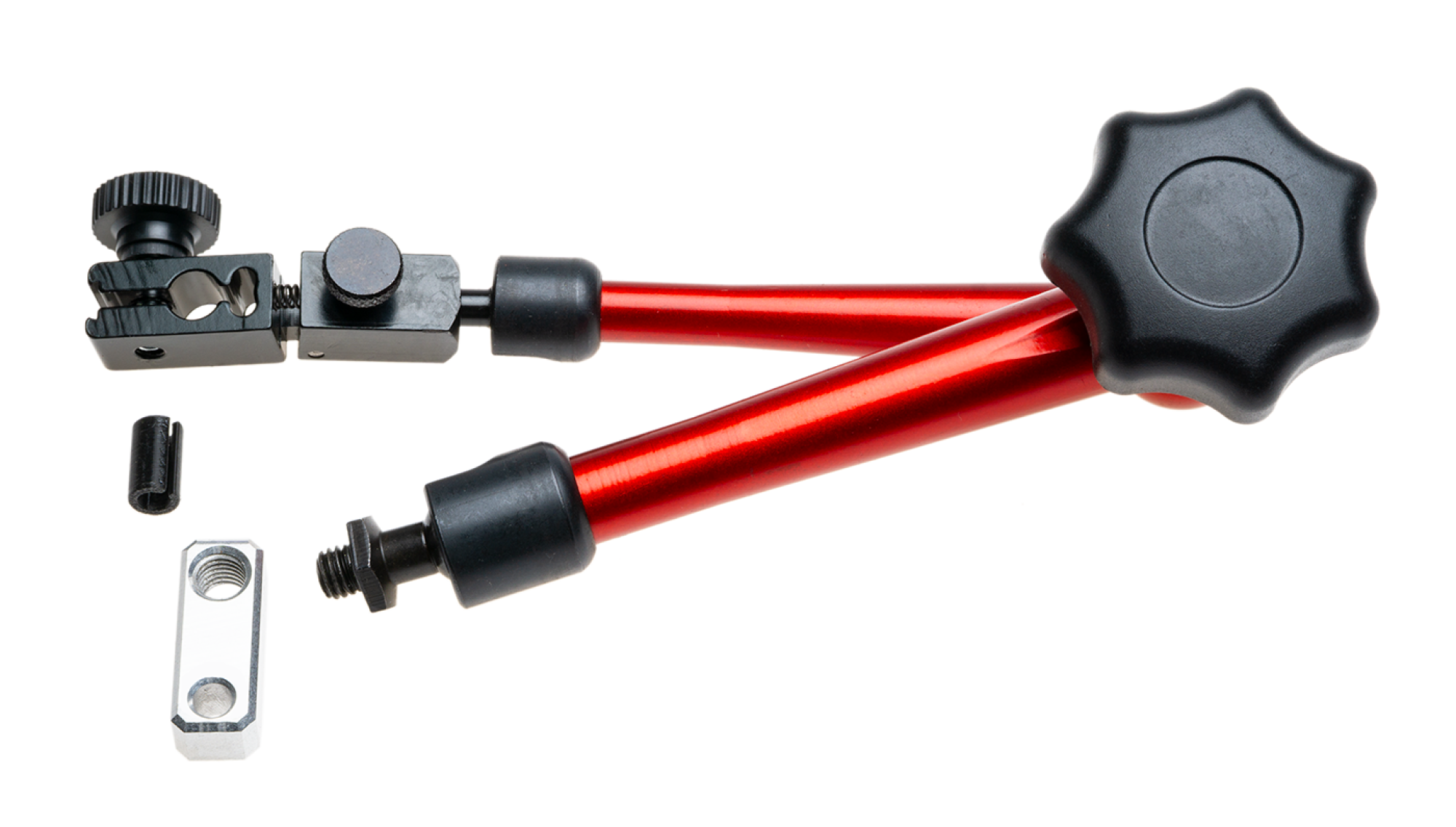

Scope of delivery:
Articulated arm
Clamping sleeve for the spray head tube
Mounting adapter

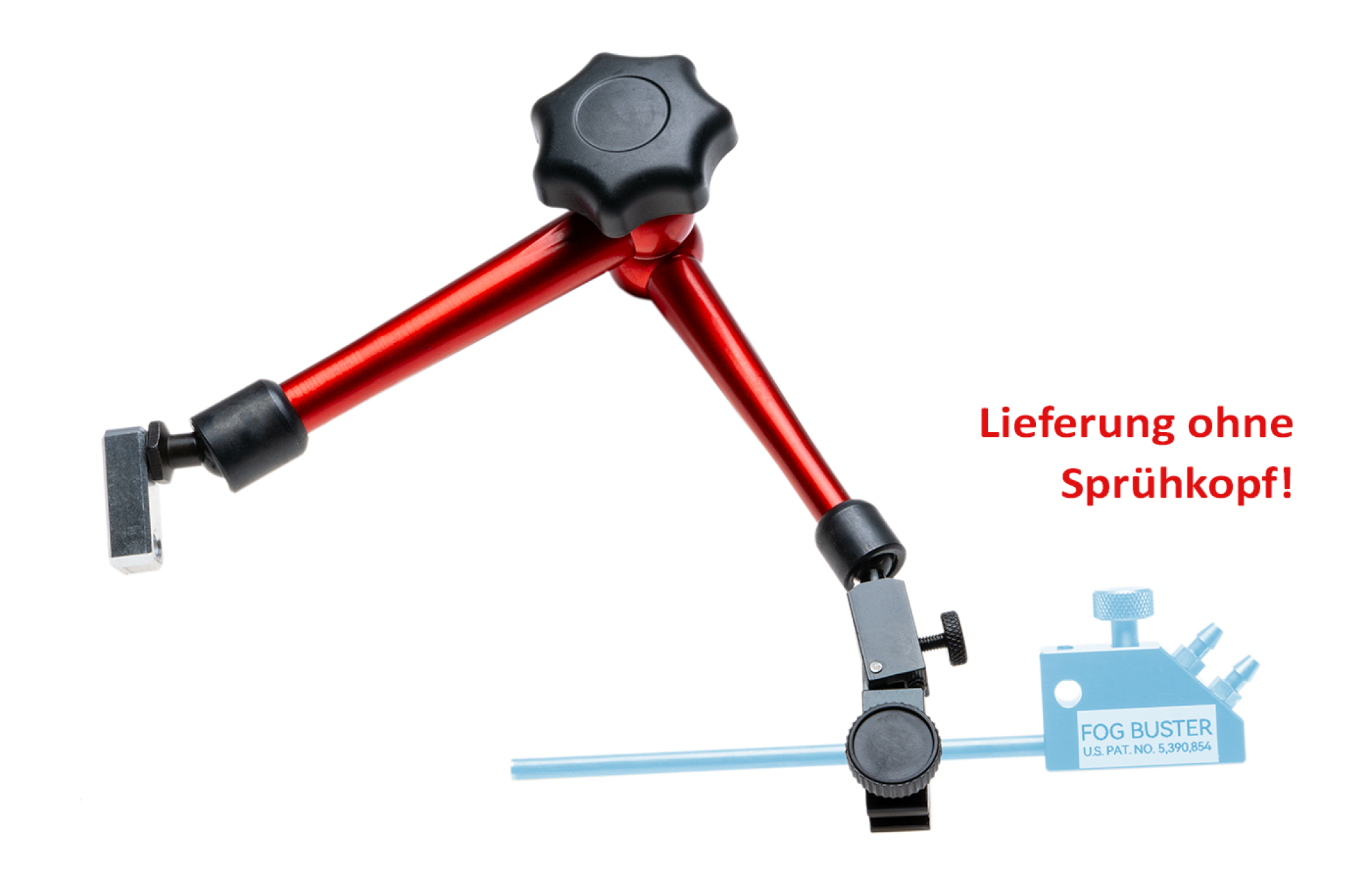

Note: The spray head shown in the image is not included.
Always read and observe the safety instructions and warnings in the available documents.
2.
The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully.
3.
The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision.
4.
The use of kits / components usually requires additional measures and additions.
