Pull-down vice BG80

Product No.:
ZB.0017.M
immediately available, 2-3 Days immediately available, 2-3 Days  (abroad may vary)
Shipping weight:
5.4 kg per piece
98,90 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Description

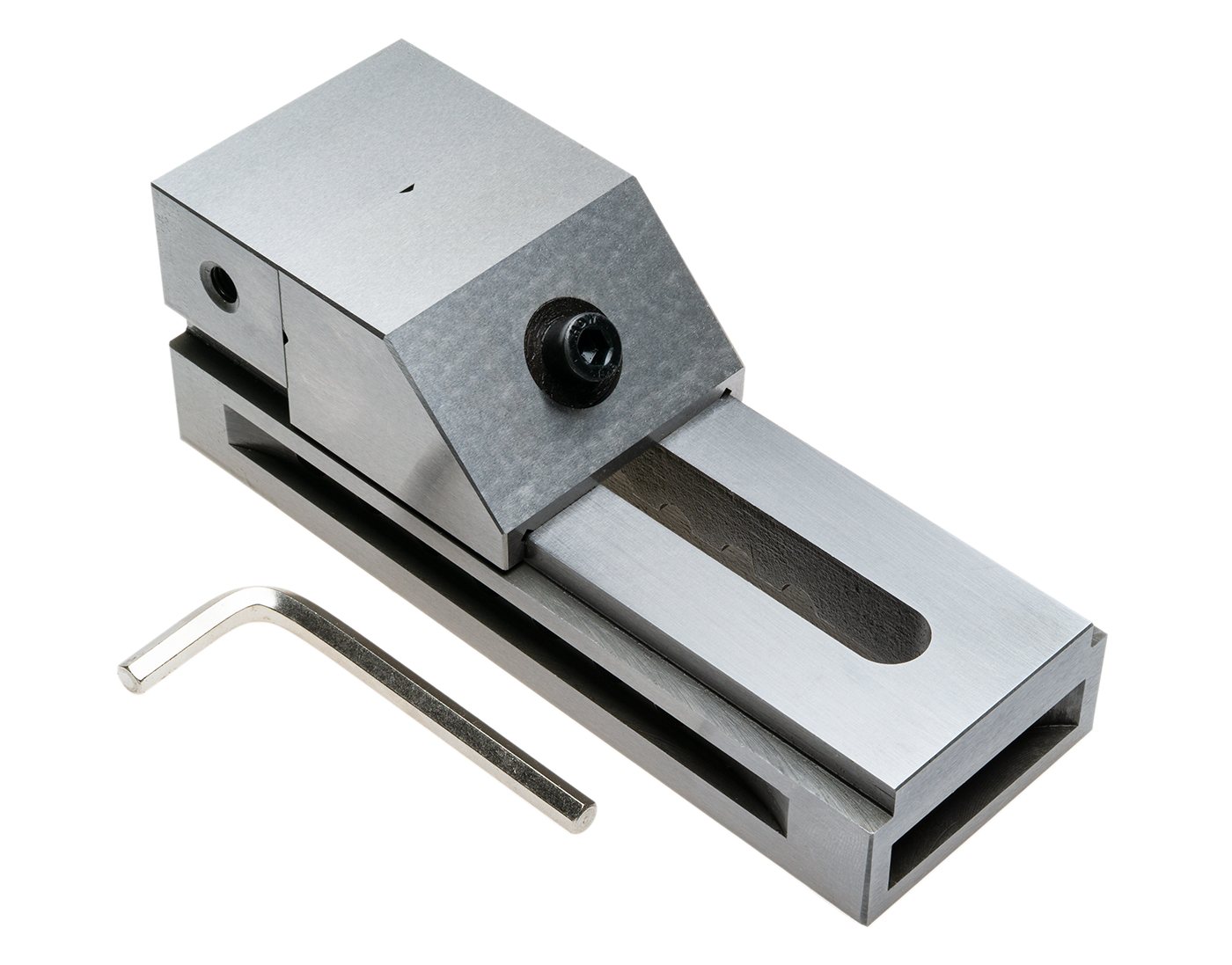

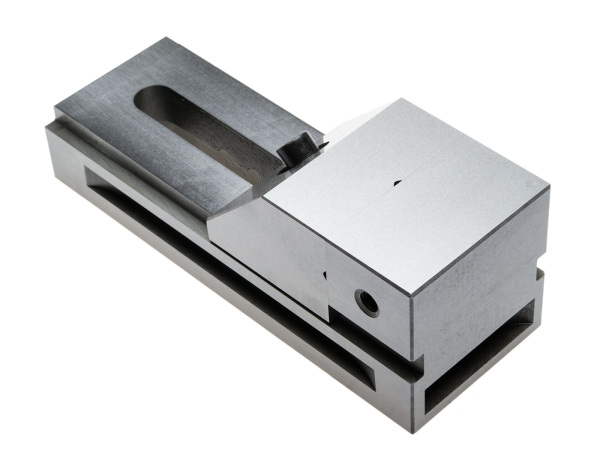

Pull-down vice BG80

This precision pull-down vice has jaw adjustment without a spindle.

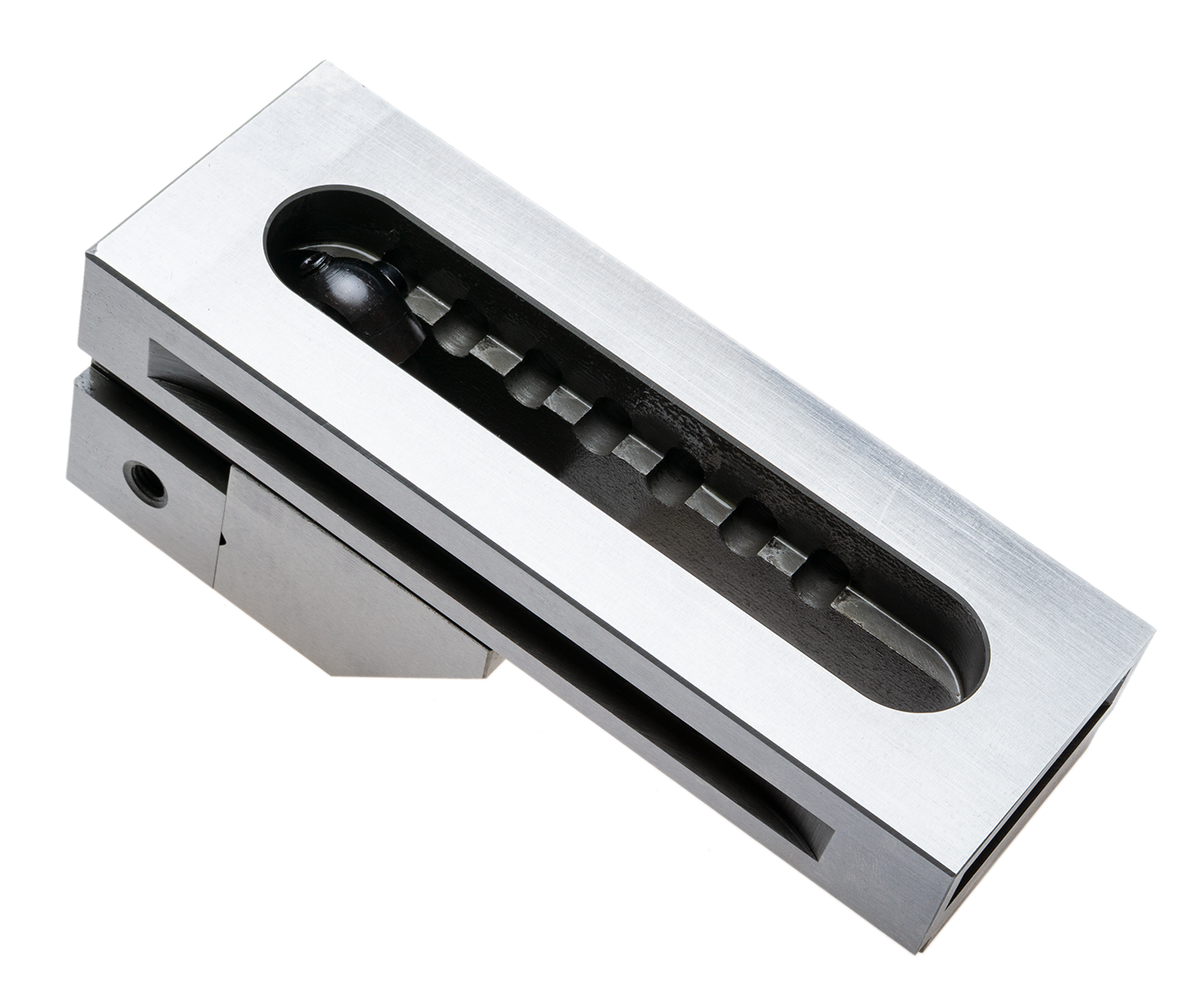

The loose jaw is roughly adjusted to the workpiece using a bolt rod and then simultaneously pulled against the workpiece and downwards using a hexagon socket screw. This creates the pull-down effect and results in a strong clamping force and high precision at the same time.


Technical characteristics:

  • Industryquality
  • Hardened to HRC58-62
  • Grinded
  • Parallelism 0.005 mm / 100 mm
  • Squareness 0.005 mm

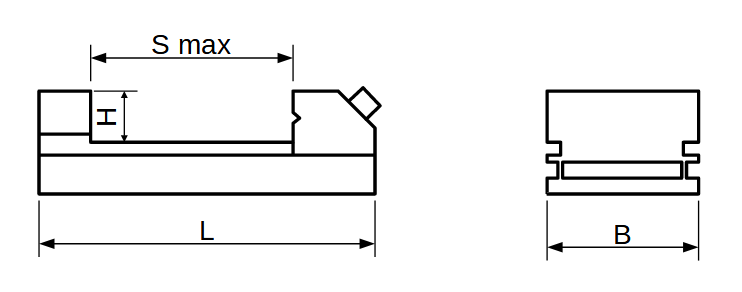

Measurements:
  • Jaw width B: 80 mm
  • Jaw height H: 40 mm
  • Jaw span Smax: 100 mm
  • overall height: 80 mm
  • Lengh L: 200 mm
  • Weight: 5.5 kg
