Pull-down vice BG63
-20%
Pull-down vice BG63

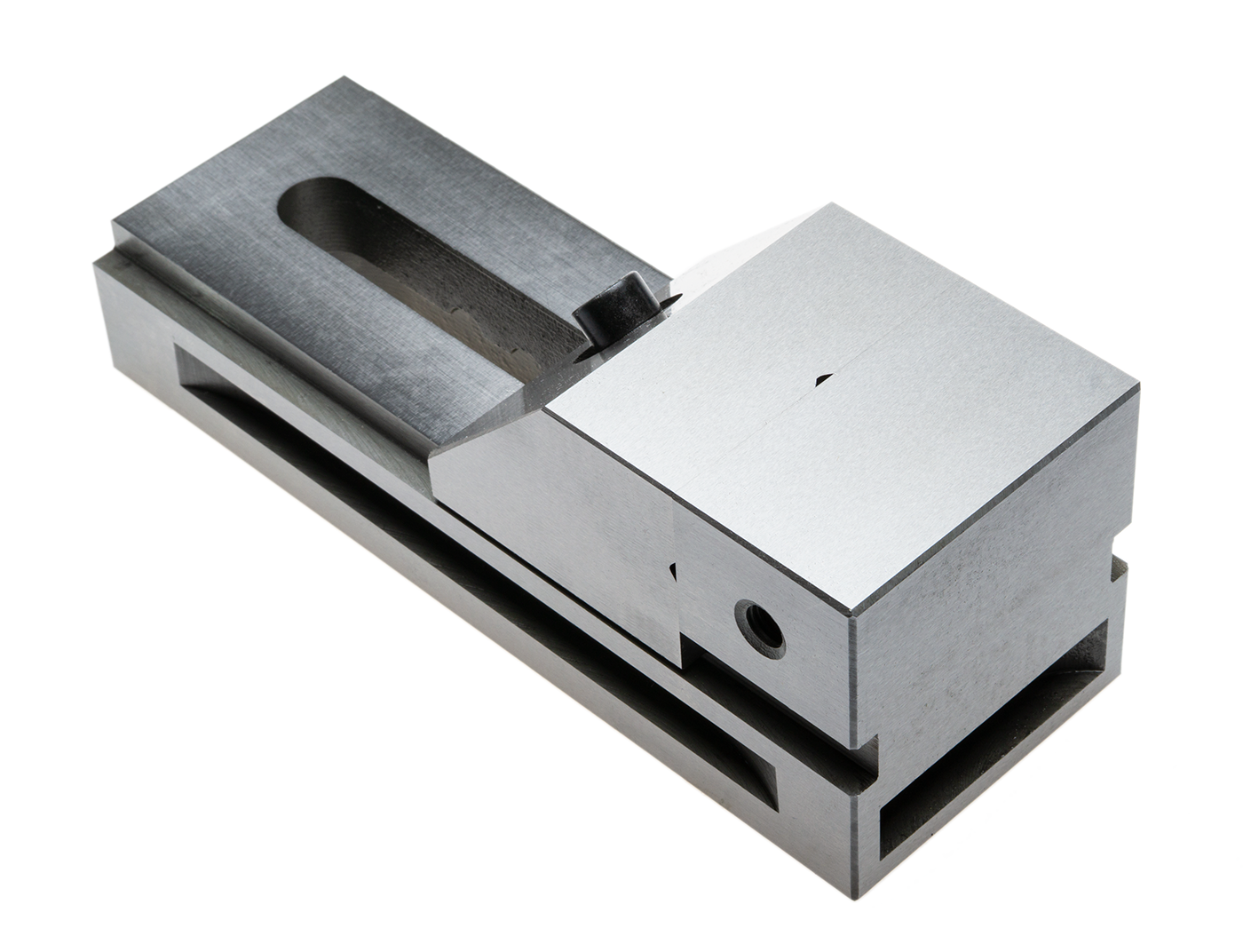

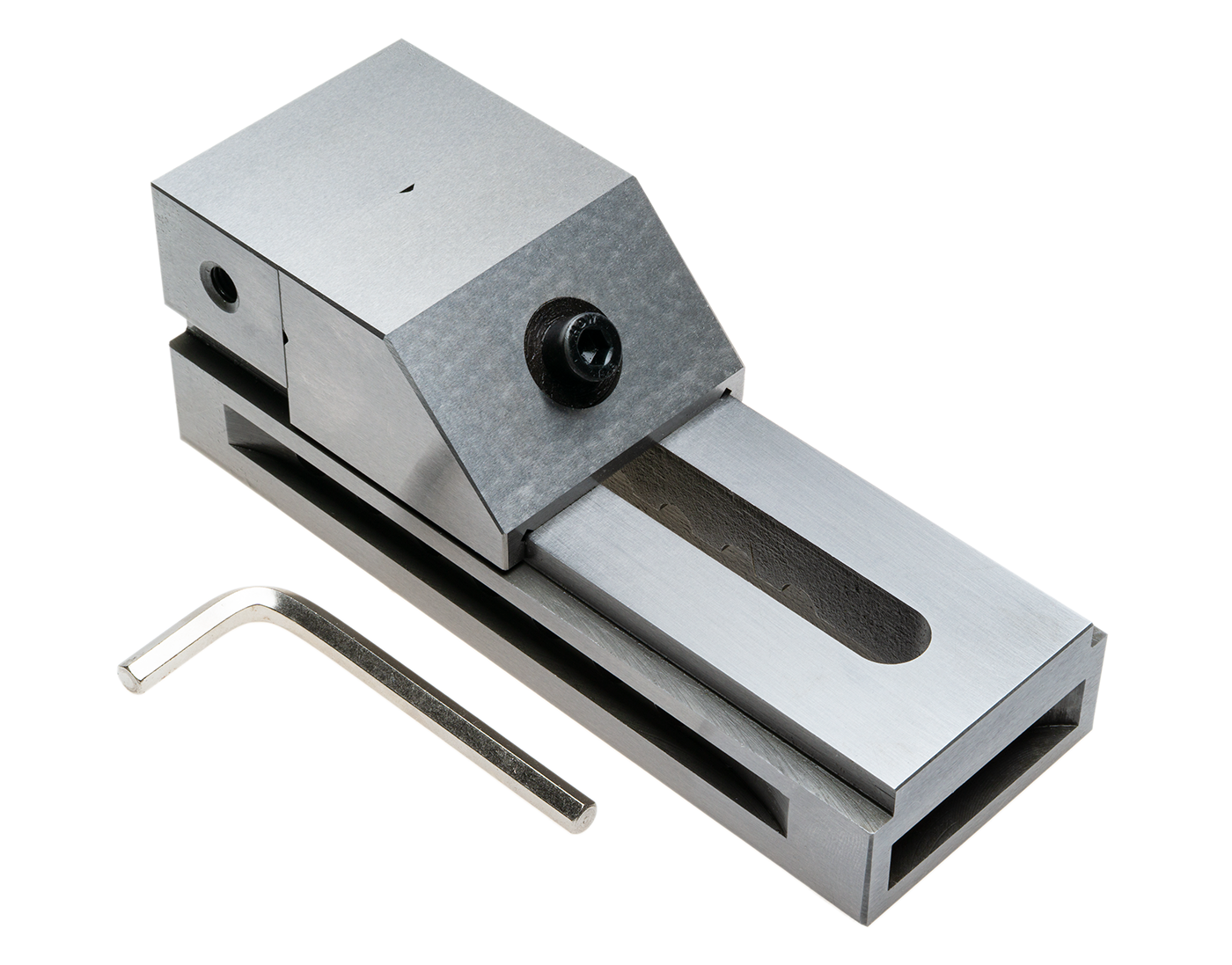

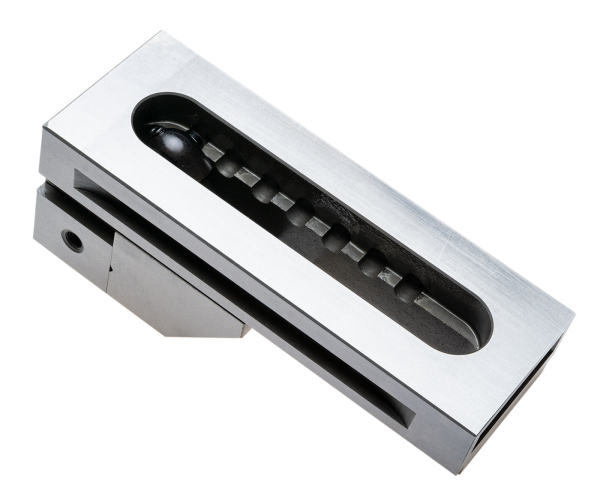

This precision pull-down vice has jaw adjustment without a spindle.The loose jaw is roughly adjusted to the workpiece using a bolt rod and then simultaneously pulled against the workpiece and downwards using a hexagon socket screw. This creates the pull-down effect and results in a strong clamping force and high precision at the same time.
Technical characteristics:
- Industryquality
- Hardened to HRC58-62
- Grinded
- Parallelism 0.05 mm / 100 mm
- Squareness 0.05 mm

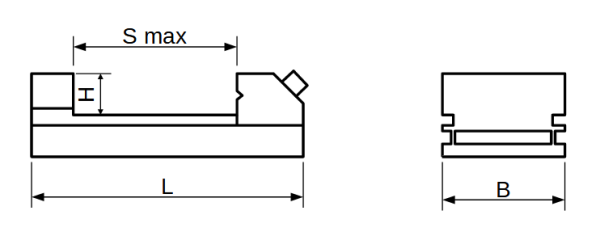

- Jaw width B: 63 mm
- Jaw height H: 32 mm
- Jaw span Smax: 85 mm
- Length L: 175 mm
- total height: 60 mm
- Weight: 3 kg
Data sheet (german)Manufacturer: | Responsible person: |
