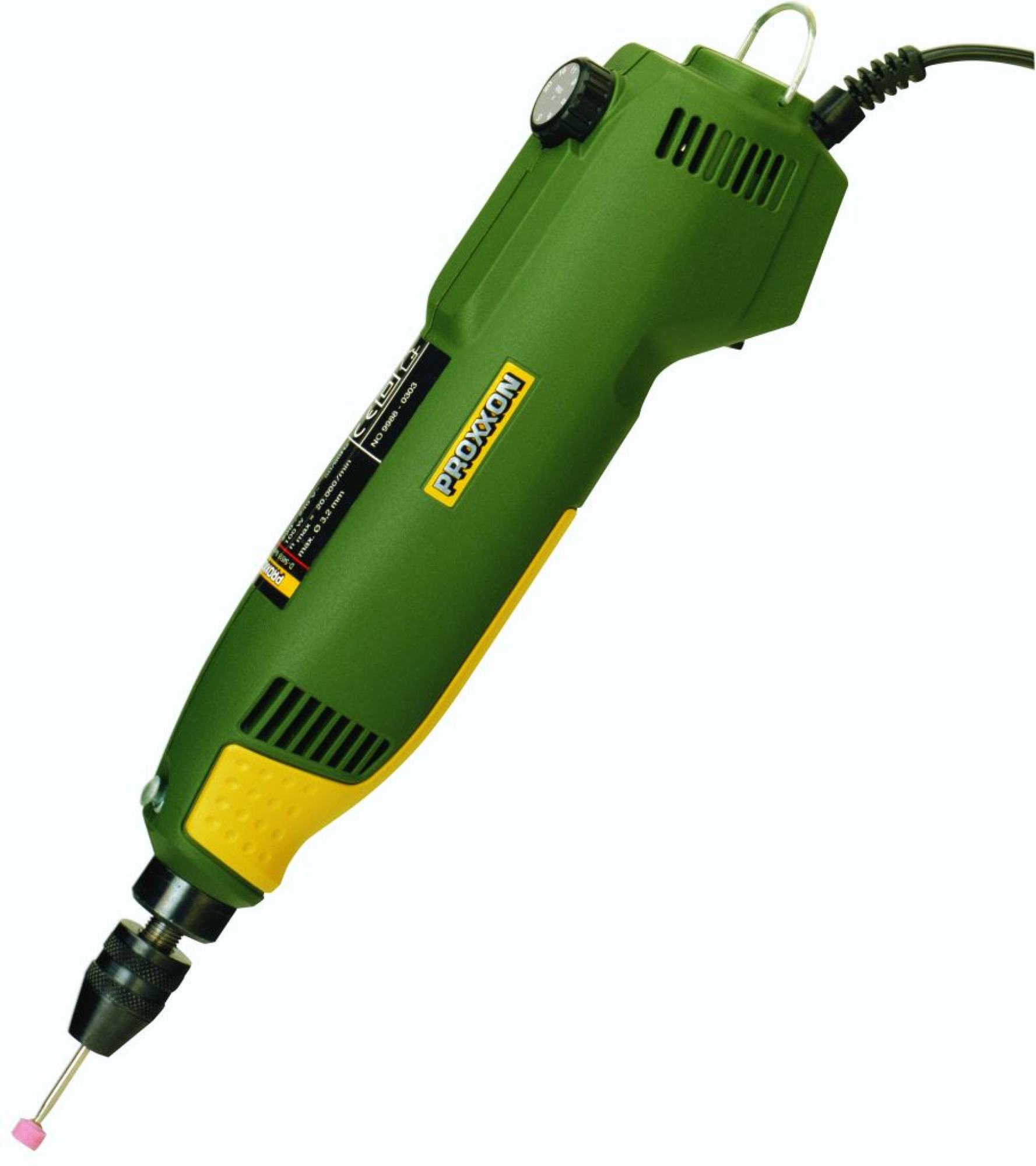

Precision drill/grinder FBS 240/E
Precision drill/grinder FBS 240/E
For drilling, milling, grinding, polishing, cleaning, carving and engraving.The maximum speed of 20,000rpm is continuously variable down to 5,000rpm. The full wave electronic speed control results in virtually constant torque, even at lower speeds, in turn facilitating micro drilling, cleaning and polishing. The spindle runs in a precision ball bearing and is lifted with a lock button. The 20mm collar fits MICROMOT drill stands and vices. The machine is fitted with a special, balanced, low noise DC motor with high life expectancy. Stable housing of glass-fibre reinforced POLYAMIDE with soft components in the finger grip area. Complete with 43 quality inserts in a sturdy plastic case.
Technical data:
5,000 - 20,000rpm. Maximum power consumption 100W, 220 - 240V. Length 200mm. Weight 450g. Insulated according to class 2 requirements. Keyless chuck with 0.3 - 3.2mm capacity.

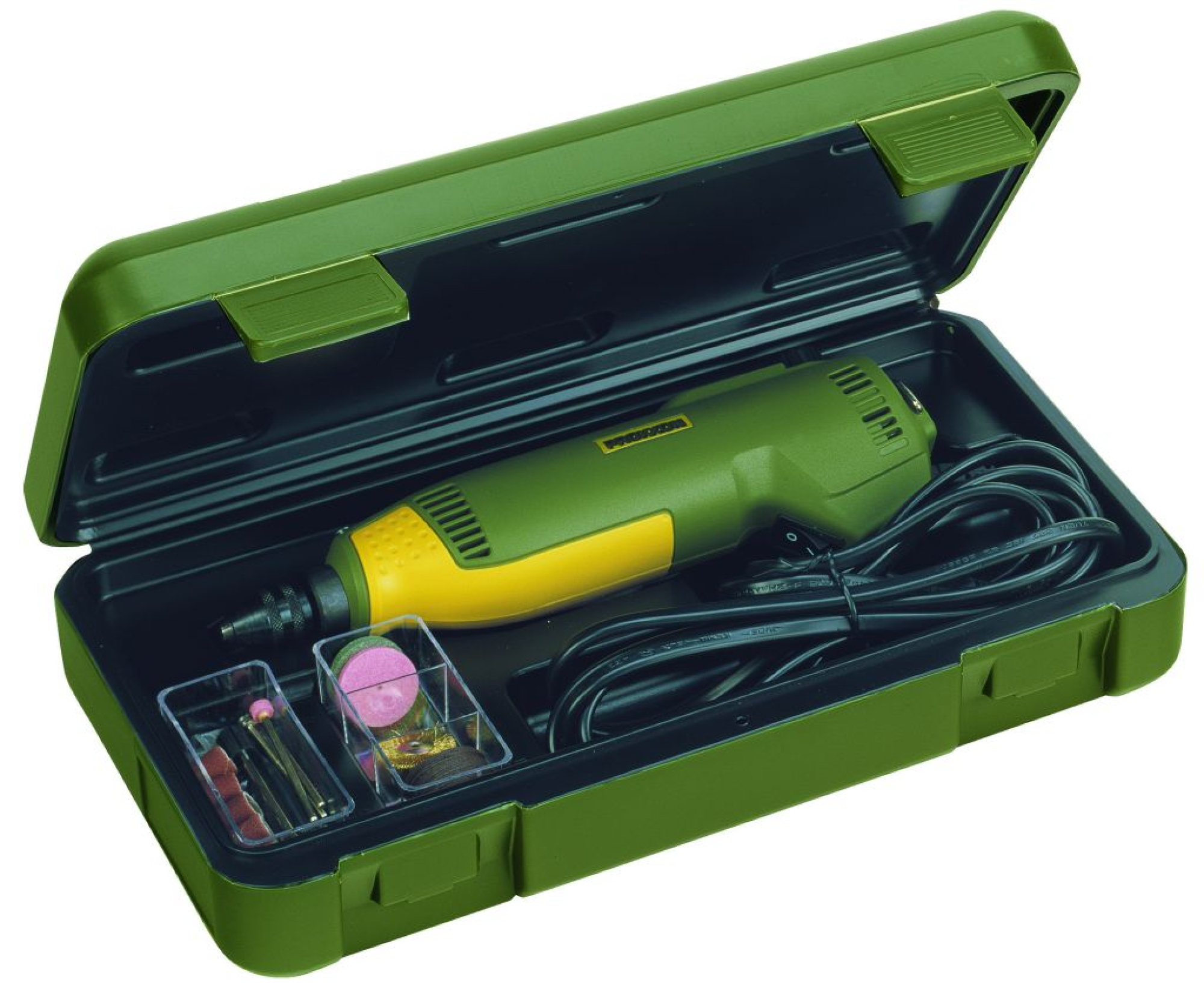

Complete with 43 high-quality bits and cutters
in a durable polypropylene case.
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
