Power supply kit to 80 V 20 A (without transformer)

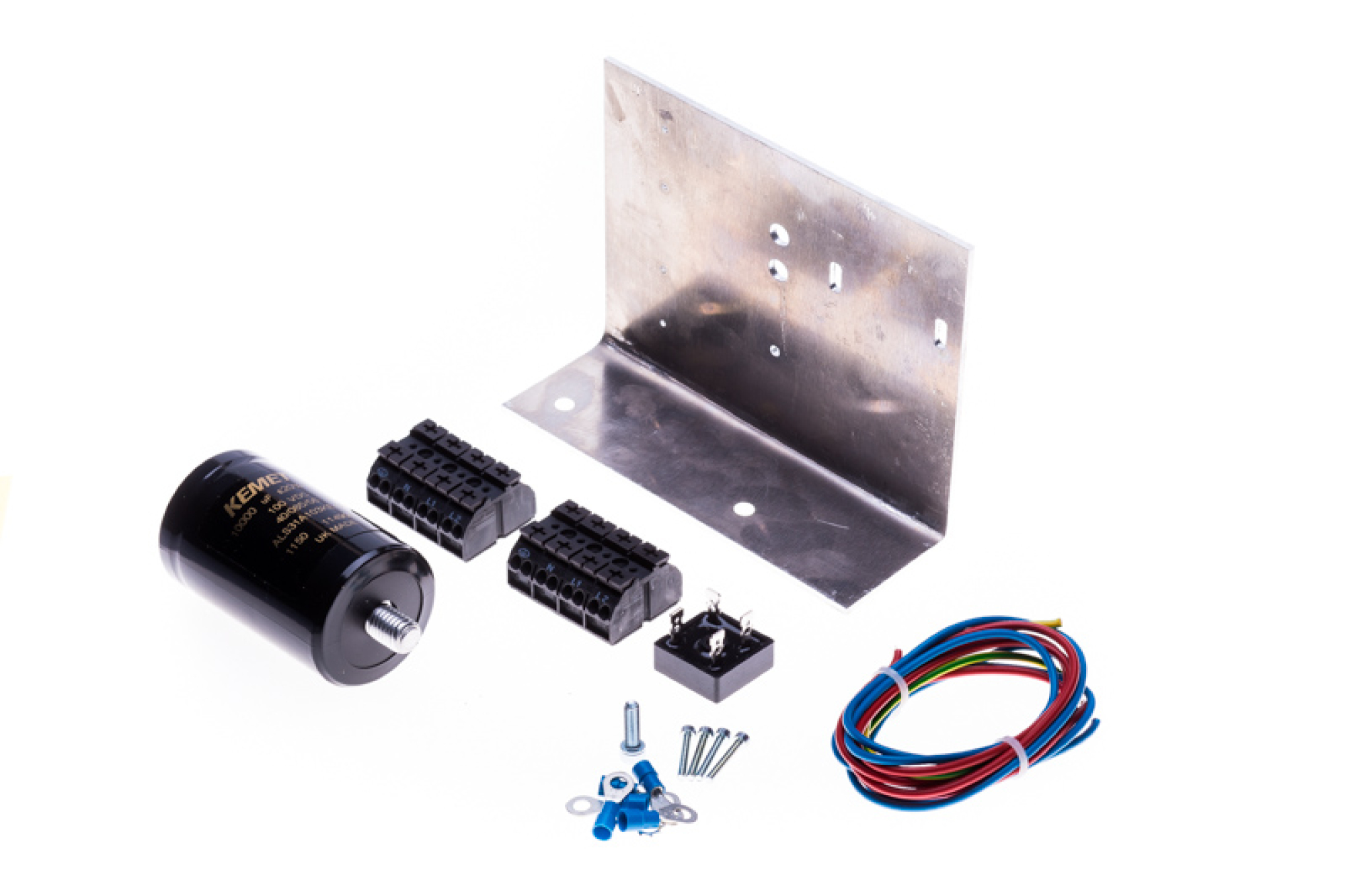

This power supply kit contains the following parts:
1 x corner for power supply kit L-shape H 170 mm x W 55mm
1 x capacitor 10000 μF 100 VDC 85 °
1 x bridge rectifier 400 V 35 A
1 x Thermistor NTC 265 VAC 10 ohms
2 x connection clip 4-pole
4 x socket head screw M 3x20
1 x socket head screw M 5x16
1 x tooth washer M5
3 x PVC-cable 1.5 mm² (red / light blue / green-yellow)
5 x ring plug 1.5 ... 2.5 mm² M5
1 cable fixer
1 diagramme toroidal transformer, instructions for power supply kit
The kit is delivered, not the ready made power supply.
A ring core transformer is required. This is not included in the kit.
This power supply kit is optimally suited for the Leadshine microstepping drivers M880 or AM882.
Always read and observe the safety instructions and warnings in the available documents.
2.
The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully.
3.
The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision.
4.
The use of kits / components usually requires additional measures and additions.
