Parts set ALU-Line 1107

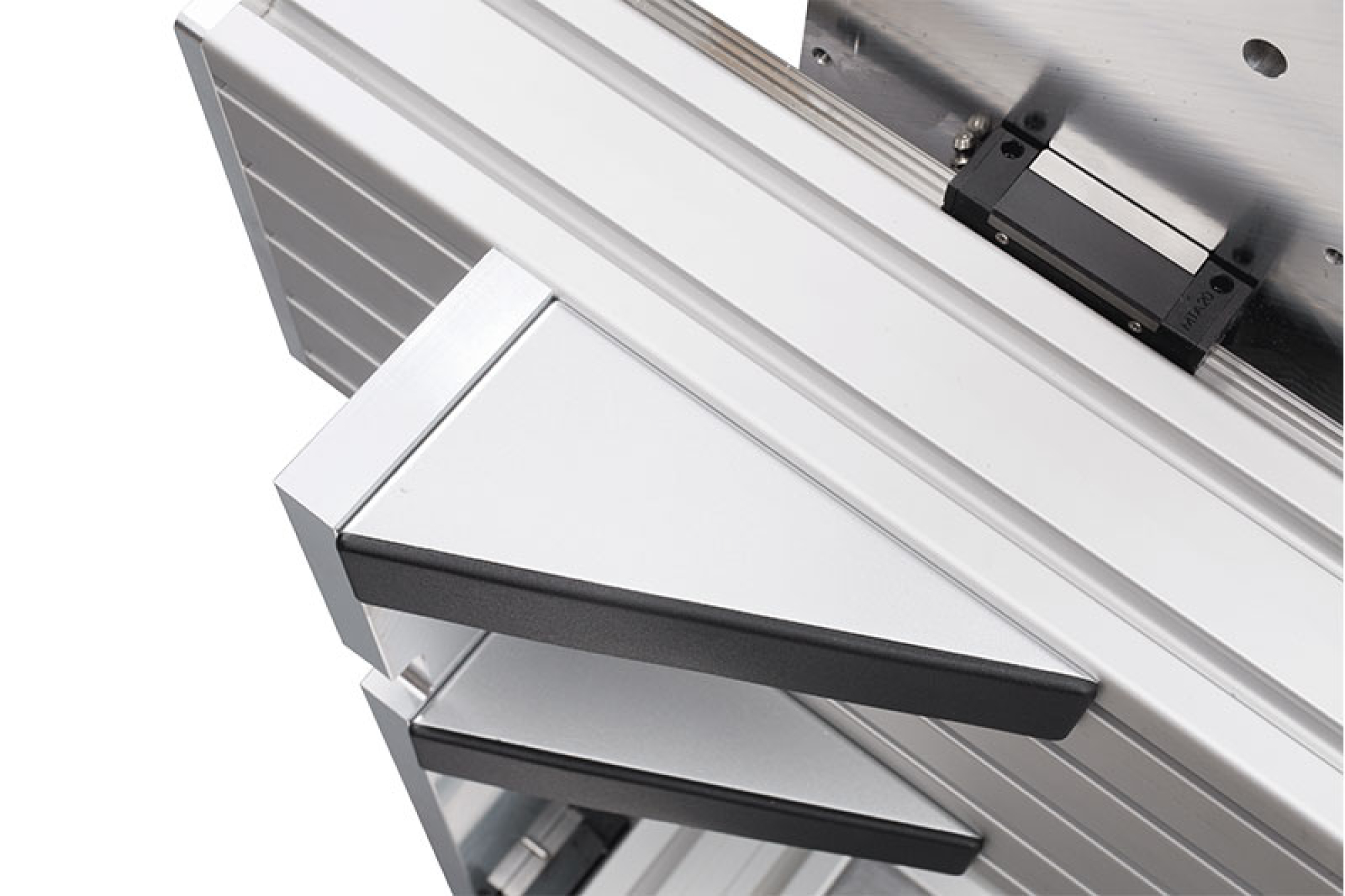

Length and width alone do not make a large machine: Only the carefully thought-out statics that go with it ensure the perfect usability of long travels. The ALU-Line impresses with table profiles with large cross-sections and reinforcements on almost every connection.
With this kit you get all the necessary parts for the mechanical construction of the portal milling machine. The drag chains and stepper motors are not included.
Technical Data |
Travel |
X: 1150 mm
Y: 750 mm
Z: 220 mm
|
Clearance under Portal |
270 mm
(without table) |
Clamping area |
X: 1500 mm
Y: 750 mm |
Outer dimensions |
L: 1550 mm
W: 1160 mm
H: 1080 mm
|
Guides |
Linear Guides
Size 20 on all Axis |
Ball screw spindles
|
X: 16 x 10 mm
Y: 16 x 10 mm
Z: 16 x 5 mm |
Weight |
approx. 130 kg |
Delivery content:

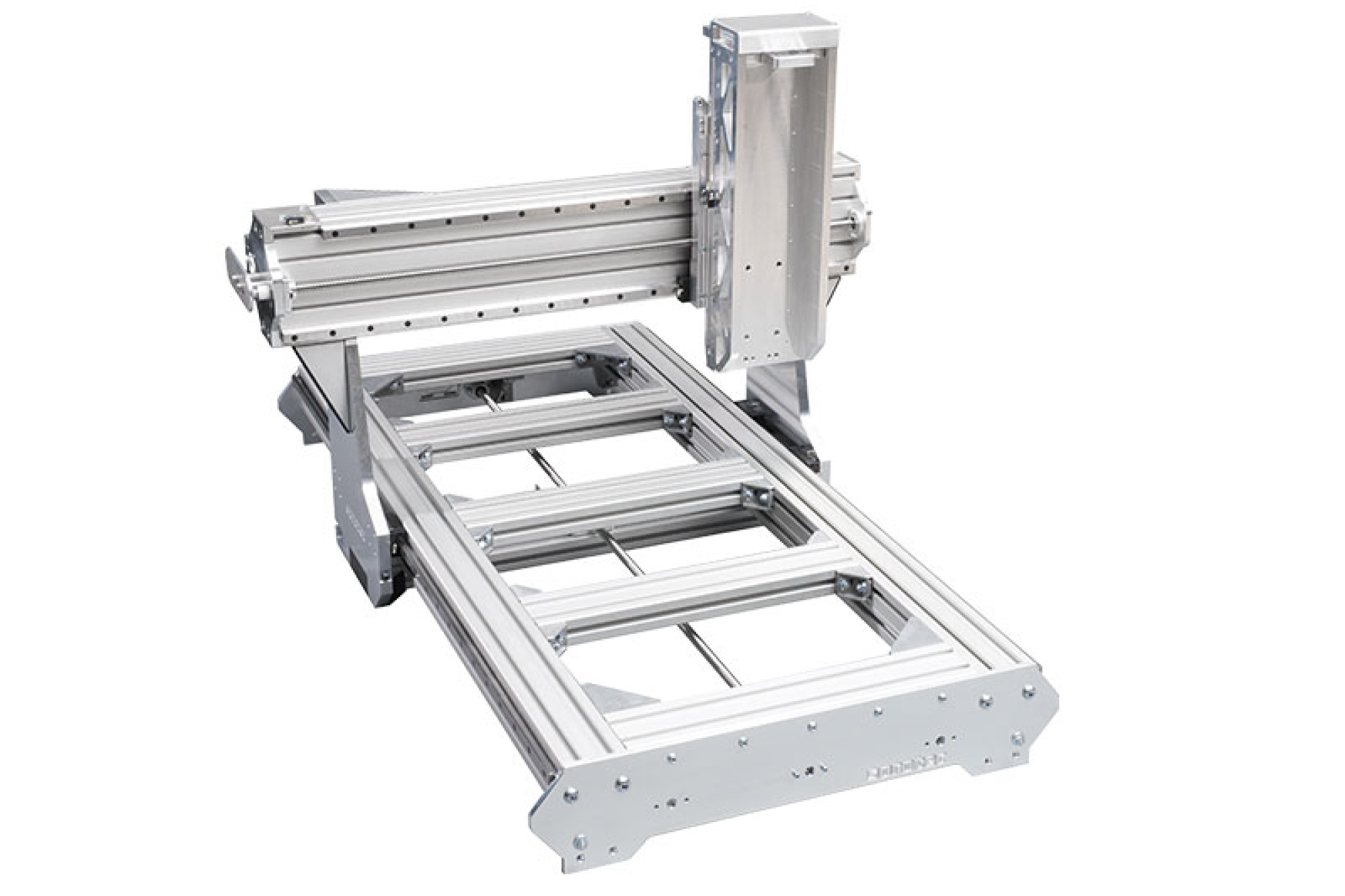

The mechanism is delivered in individual parts for self-assembly. The pictures show the fully assembled state.
After completion, the parts set presented here represents what is known as an "incomplete machine" in the EC Machinery Directive. This must be supplemented by adding further components to form a finished machine. The housing and the functional safety module (operator protection) offered by Sorotec can be used for this. Also read this
Information sheet. |

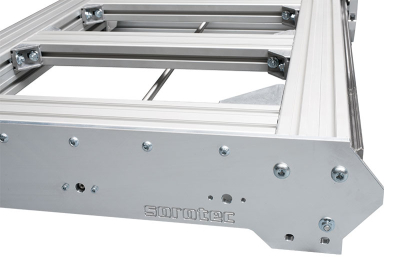

- Aluminium profiles and machined parts

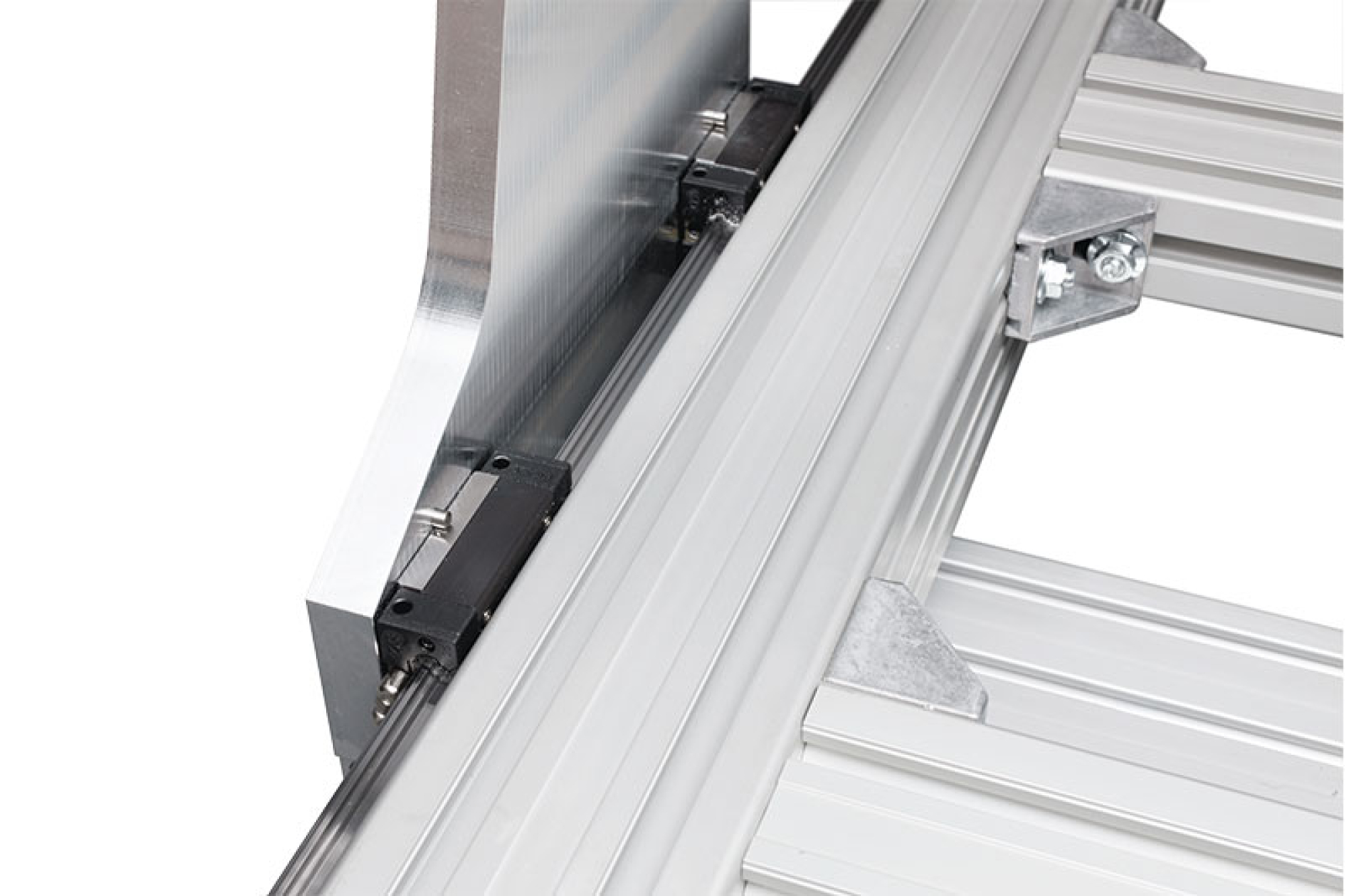

- linear guides and carriages size 20
- Ball screw spindles
- HTD belts and pulleyes (for 8 mm shaft)
- Mechanical reference switches for all axes
- Complete set of screws
- Assembly instructions
Available accessories:
- Second spindle für X-Axis
- Mounting Kit for Electric
- Machine feet
- Stepper motors
- Controllers
- Drag chains
- Control software
- CAD/CAM Systems
- Spindles (with and without tool changer)
- Frame
- T-Slot tables
- Cooling systems
- Housing
- further accessories
Delivery time on request
The shop can not calculate shipping costs, please contact us in case of order by email or phone.
