Pitbull Tension Clamp knife

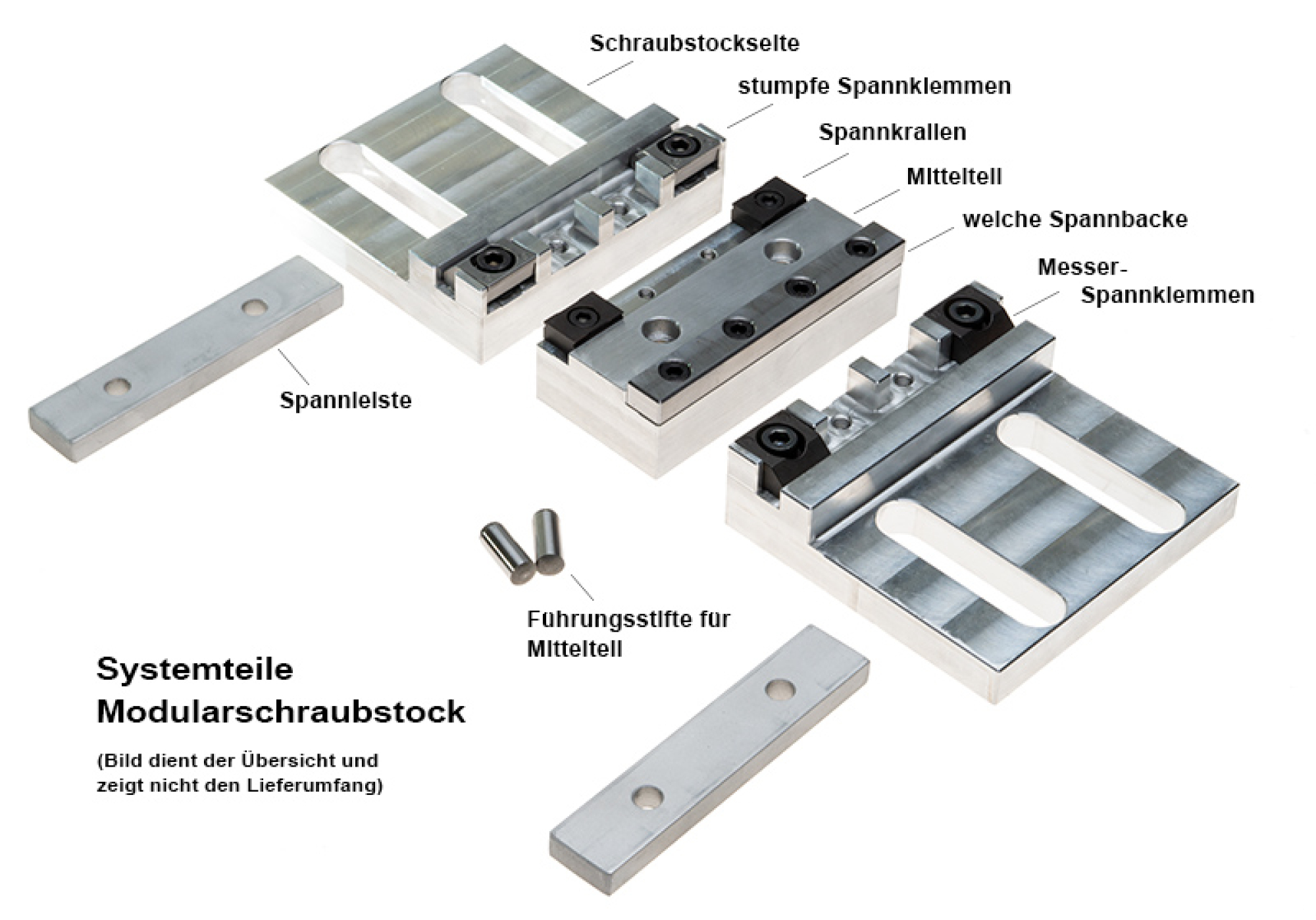

On threaded plates, but especially in built specifically for a particular case devices the Pitbull prove as versatile and powerful gripping clamping elements. In contrast to the surface pressure of the blunt version, the blade edge version described here generates a line pressure, which makes it more suitable for gripping raw materials with high forces. The overview picture shows the application in the modular vise.
The tension clamp creates a slight pull-down, the low clamping height can be material-saving.
Dimensions:
Bore: M6
Clamp width: 19.1 mm
Clamping distance: 0.6 mm
Max. Tightening torque: 22.5 Nm
Clamping force: 16 kN

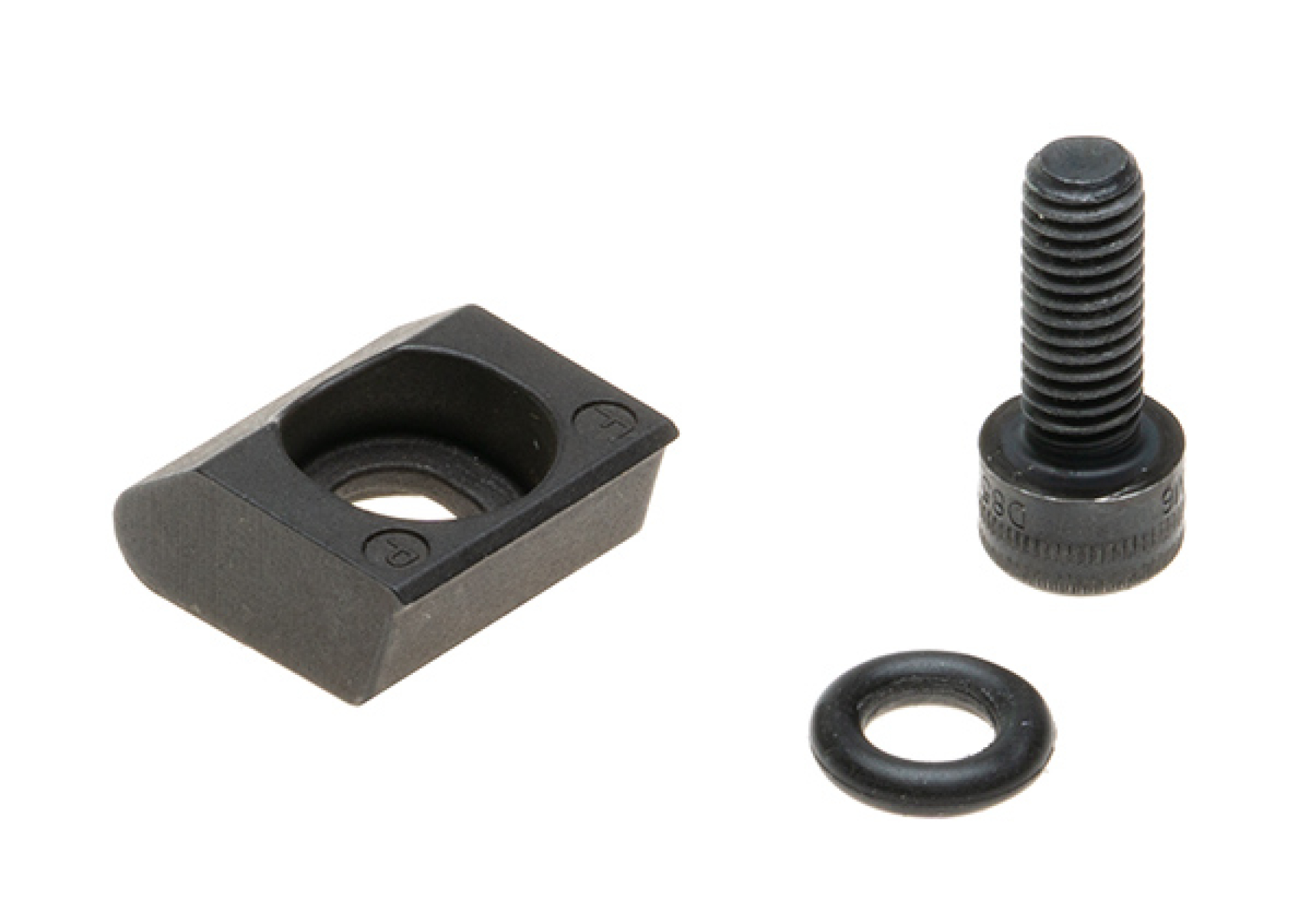

Delivery with matching screw.
