PVC spiral hose inner Ø 32 mm (1 1/4")

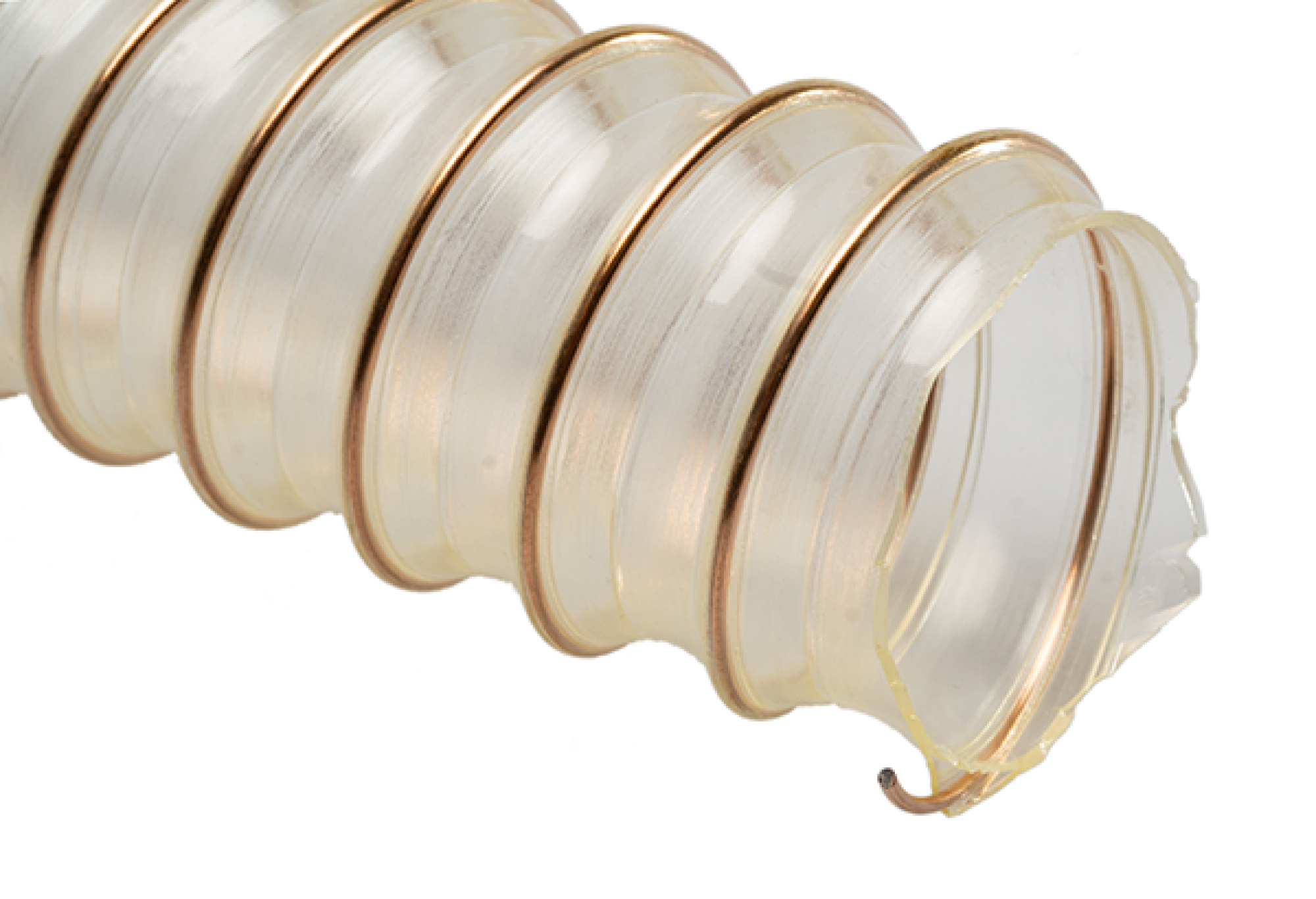

PVC spiral hose
Highly elastic, with copper-plated steel wire insert for stiffening. Ideal for suction, for example in combination with the popular suction shoes. The flow of the material to be conveyed can be clearly observed through the transparent wall, and blockages are detected early on. The smooth inner wall counteracts clogging with dust.Material: polyurethane, copper-plated steel wire
Temperature: -40 ... +90 ° C
Inner-Ø: 32 mm (1 1/4 ")
Min. Bending radius: 21 mm
Operating pressure: -0.3 ... 0.6 bar
One unit corresponds to a length of 1 m.
Hose cuts are excluded from exchange and return.
