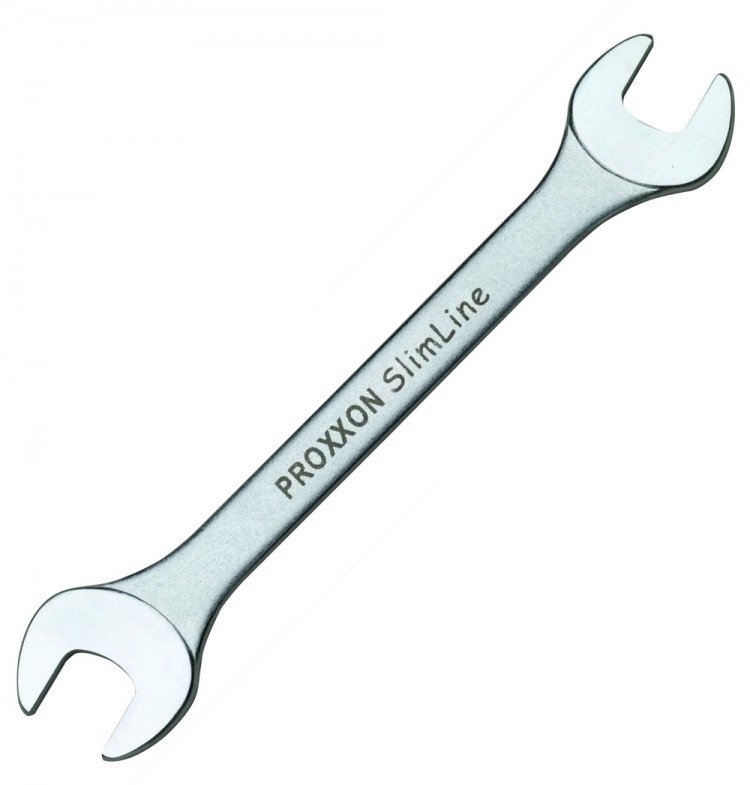

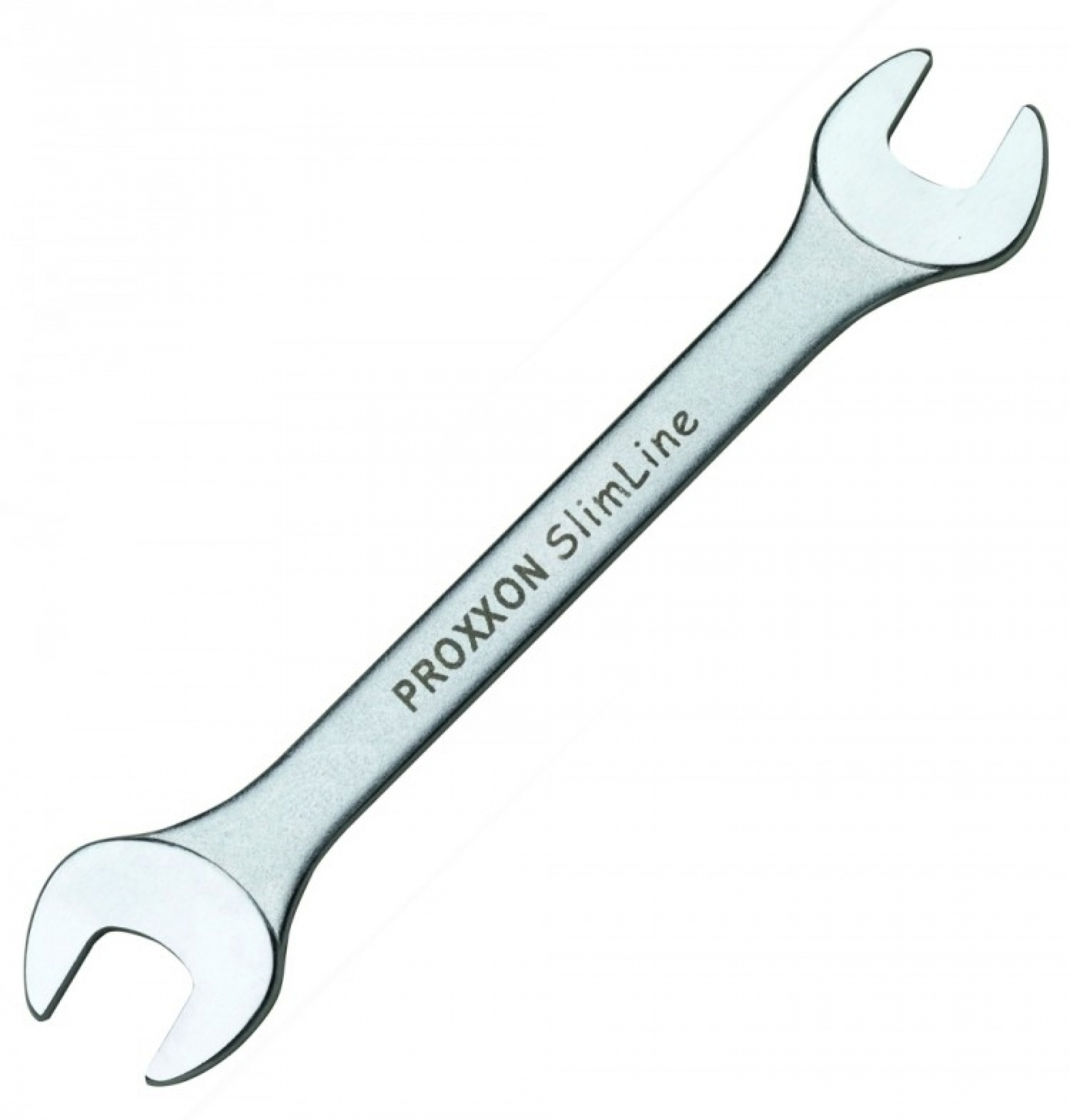

Doppelmauschlüssel 20 x 22 mm
from the series: SlimLine
According to DIN 3110 and ISO 3318
Clear size labeling facilitates finding the desired key length
Handy, good electric handheld shaft with skin friendly surface (statin finish); no sharp corners and edges
Polished chrome heads; slim and thin-walled, thus less problems in hard to reach nuts
Although extremely thin and lightweight, the torques are much higher than required by DIN / ISO, because for the production an optimal steel is used: chrome vanadium alloyed, drop forged, carefully hardened and tempered
also the dimensional tolerances are better than those required by DIN / ISO; Piece by piece is calibrated and final inspection
Optimal surface protection against rust: 2x nickel, chrome 1 x
Dimensions:
- S1 x S2: 20mm x 22mm
- B1: 43mm
- B2: 46mm
- L: 235mm
- H: 6,5mm
