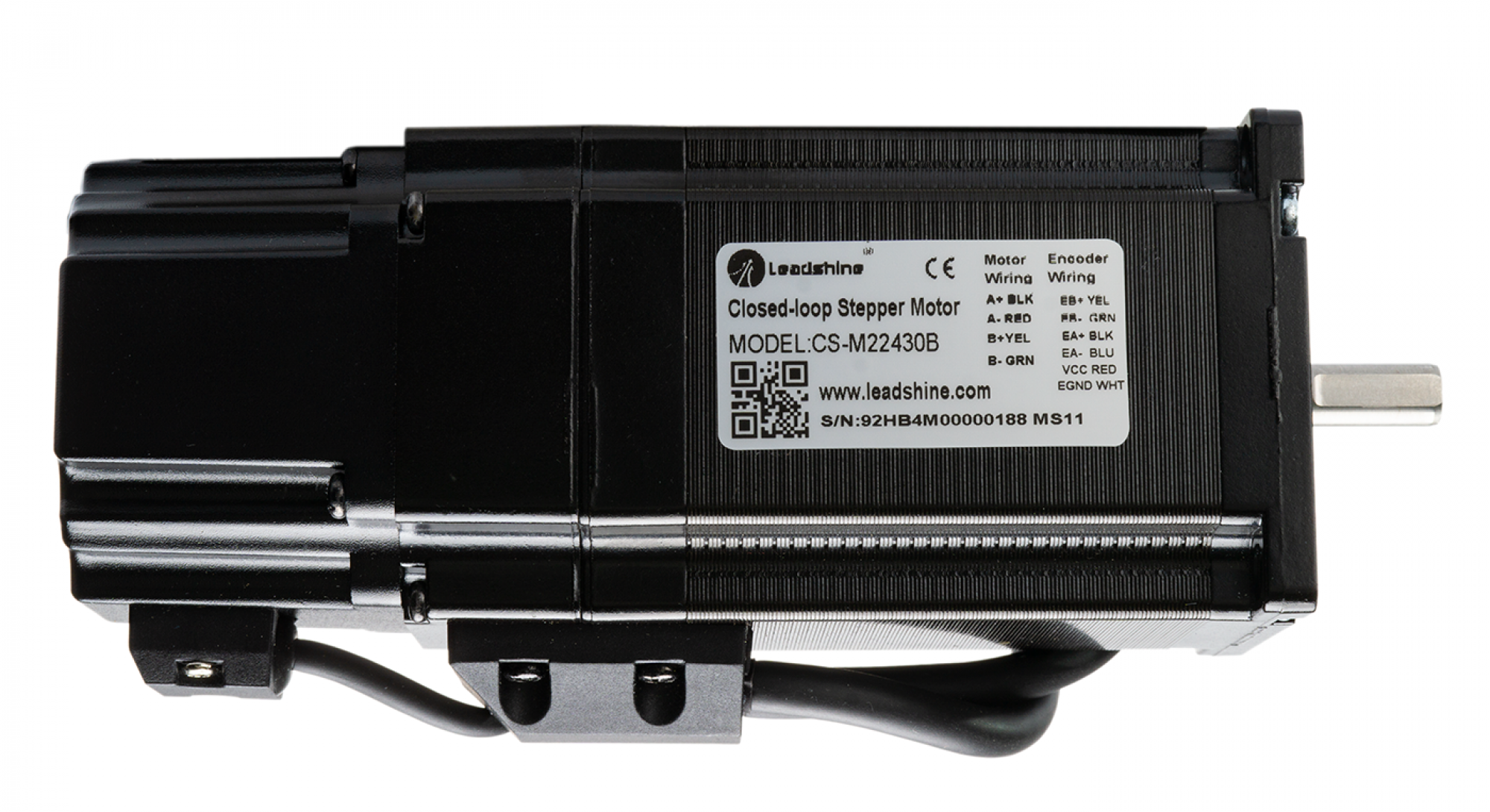

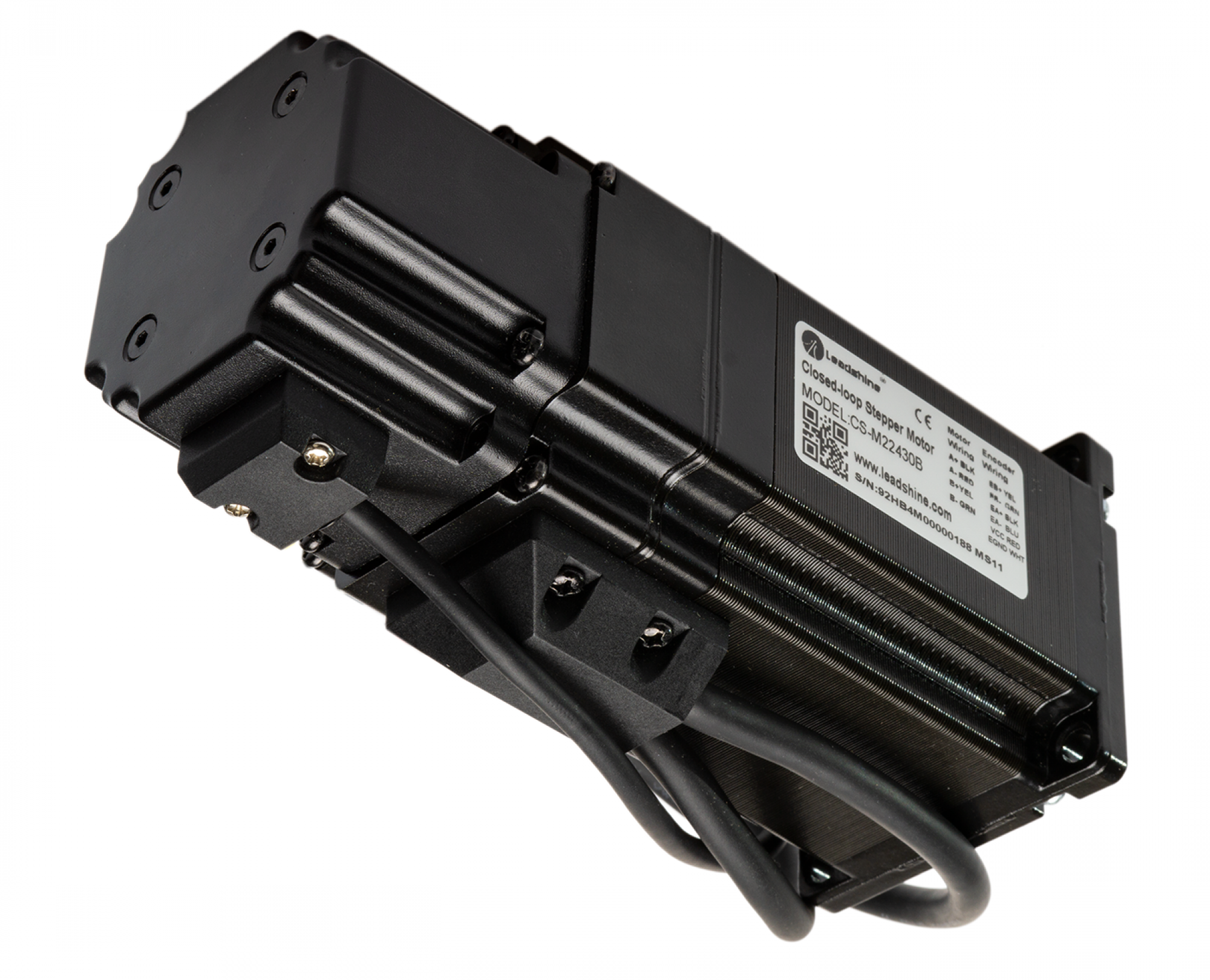

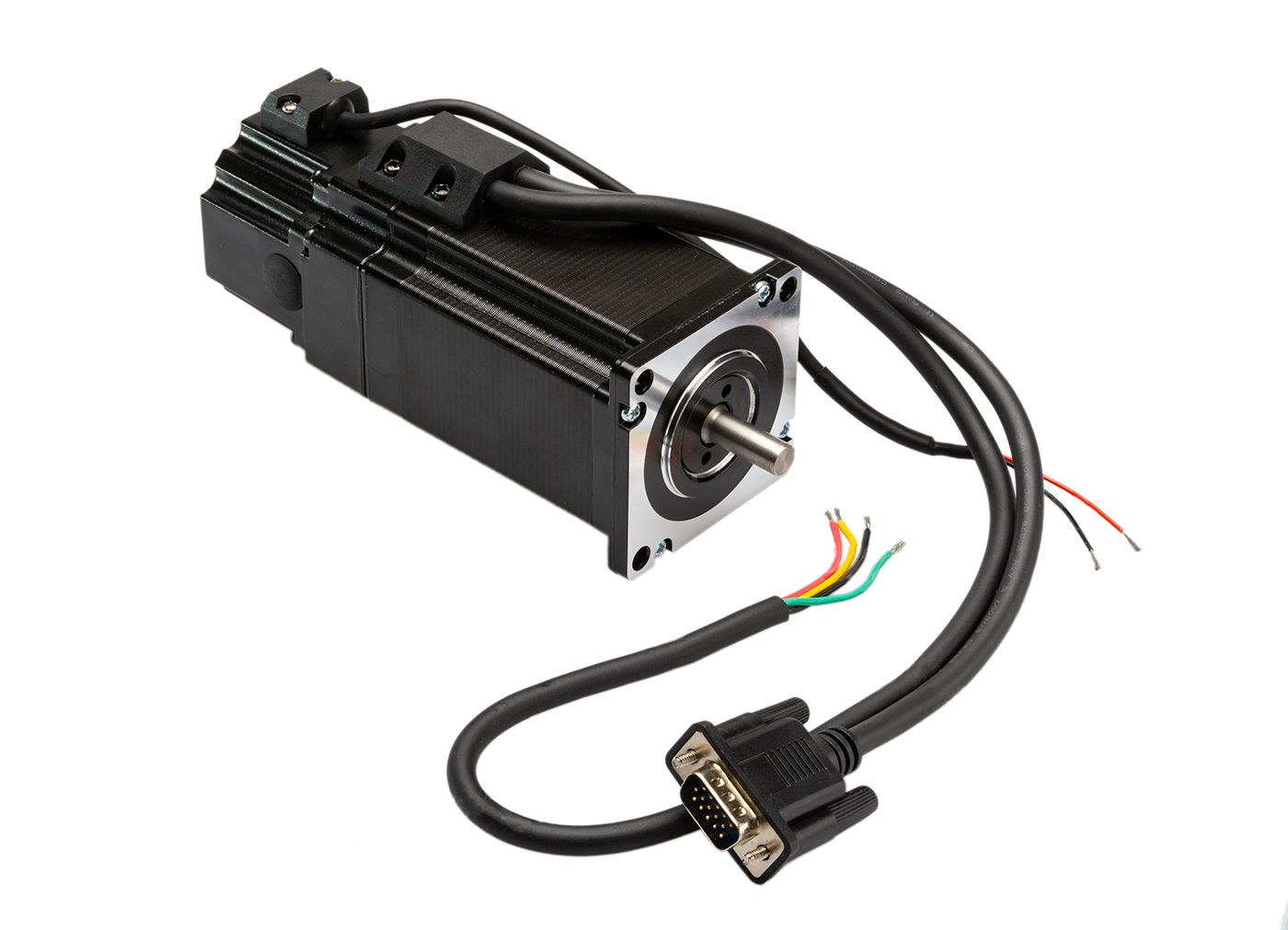

Leadshine Hybrid Stepper Motor 3 Nm with brake
Hybrid Stepper Motor 3 Nm with brake
2-phase / CS-M23445BIn combination with the suitable driver this motor makes up a hybrid servo closed loop system without loss of steps.
Technical Specifications:
- 2-phase hybrid stepper motor
- Angle 1.8, 200 steps
- 1000-lines / Rev. encoder
- Standard Nema 24 dimensions
- High torque design
- Size: 60 mm width & height, 107 mm length.

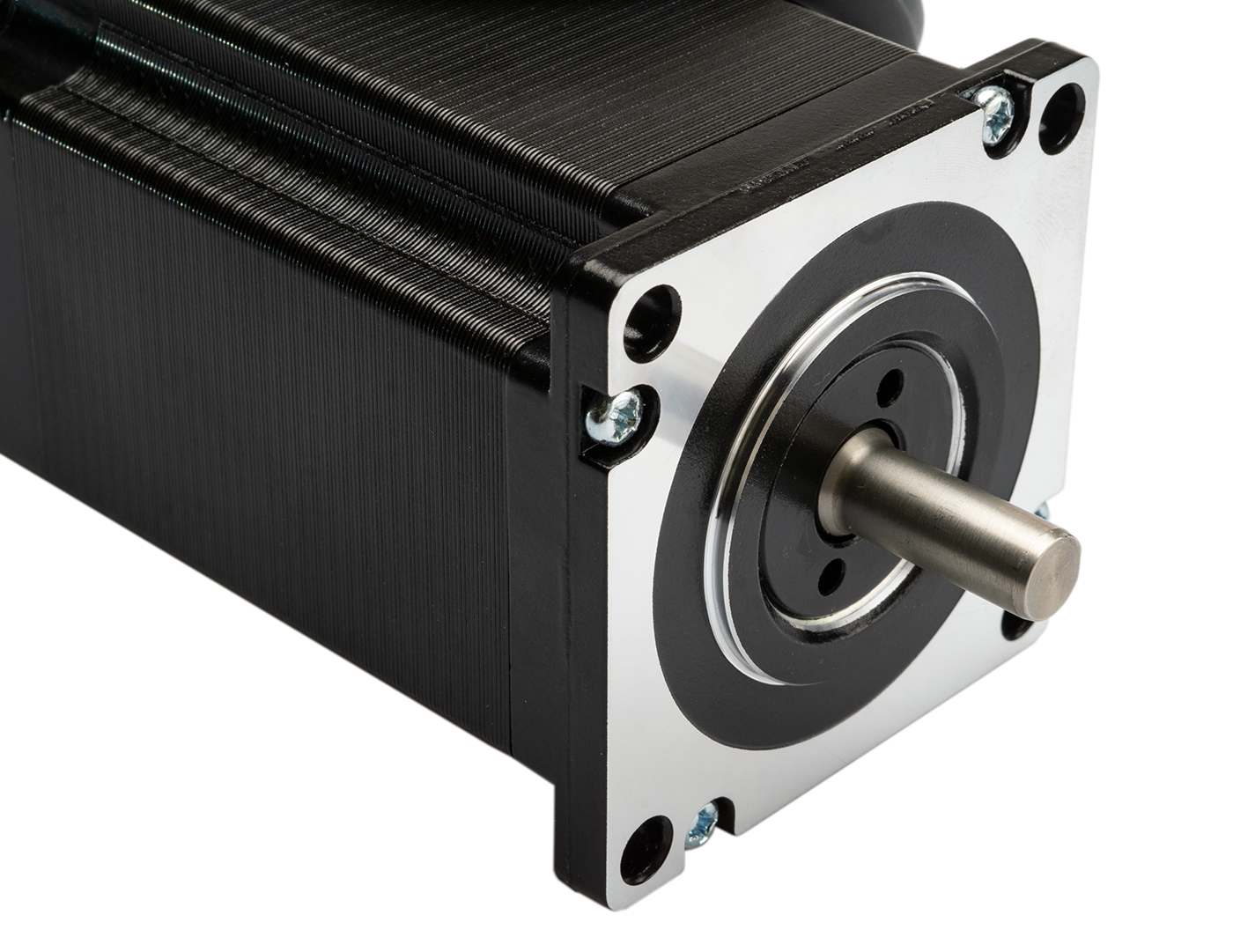

- Shaft: Ø 8 mm with key
- Cable length 27 cm
- Weight: approx 1.5 kg
Data sheet CSM22430B (german)
