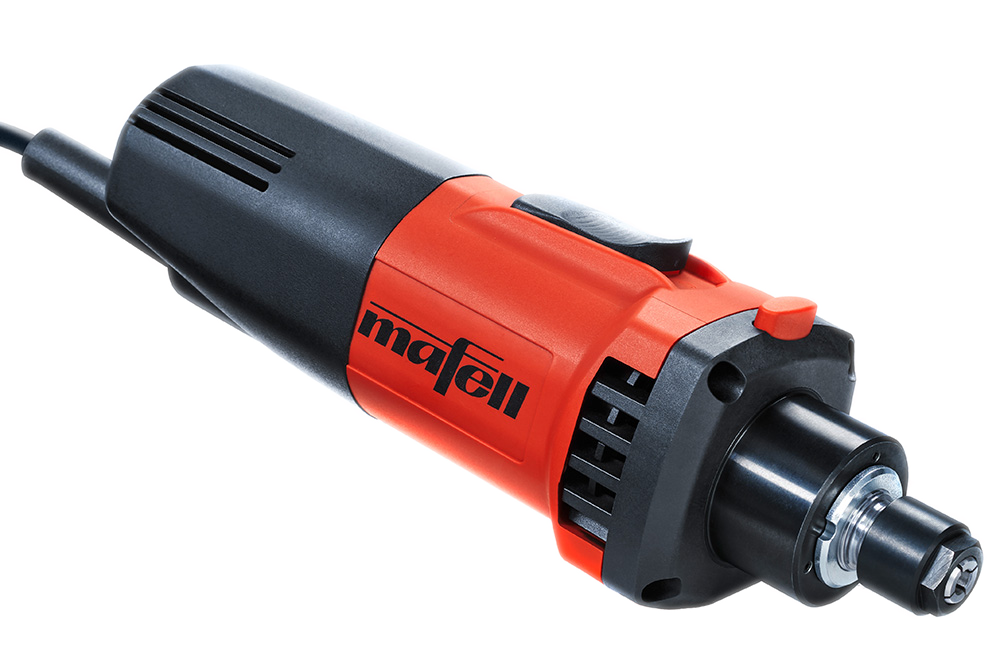

Milling motor Mafell FM 1000
Only 71 dB by new air duct!
The FM 1000 is manufactured under strict quality control in Oberndorf am Neckar. Prior to delivery, each cutter is "run" under laboratory conditions.
This increases the service life and lifetime.
The speed can be adjusted to any application. In addition, the digital electronics are equipped with soft start, idle speed reduction, constant speed under load and overload protection.

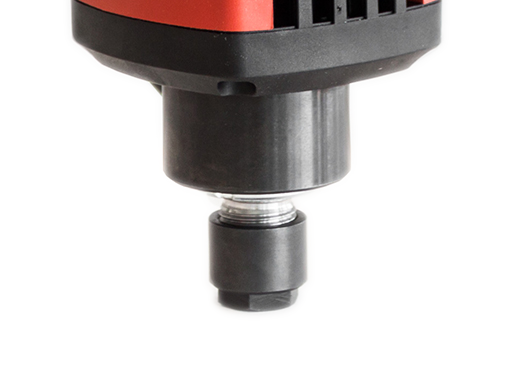

The FM 1000 impresses with a high concentricity of < 0.05 mm at a distance of 25 mm (in the cone <0.01 mm). Responsible for this extraordinary precision is the fine-tuning of all components and the fact that the anchor and spindle are manufactured from one piece and balanced.

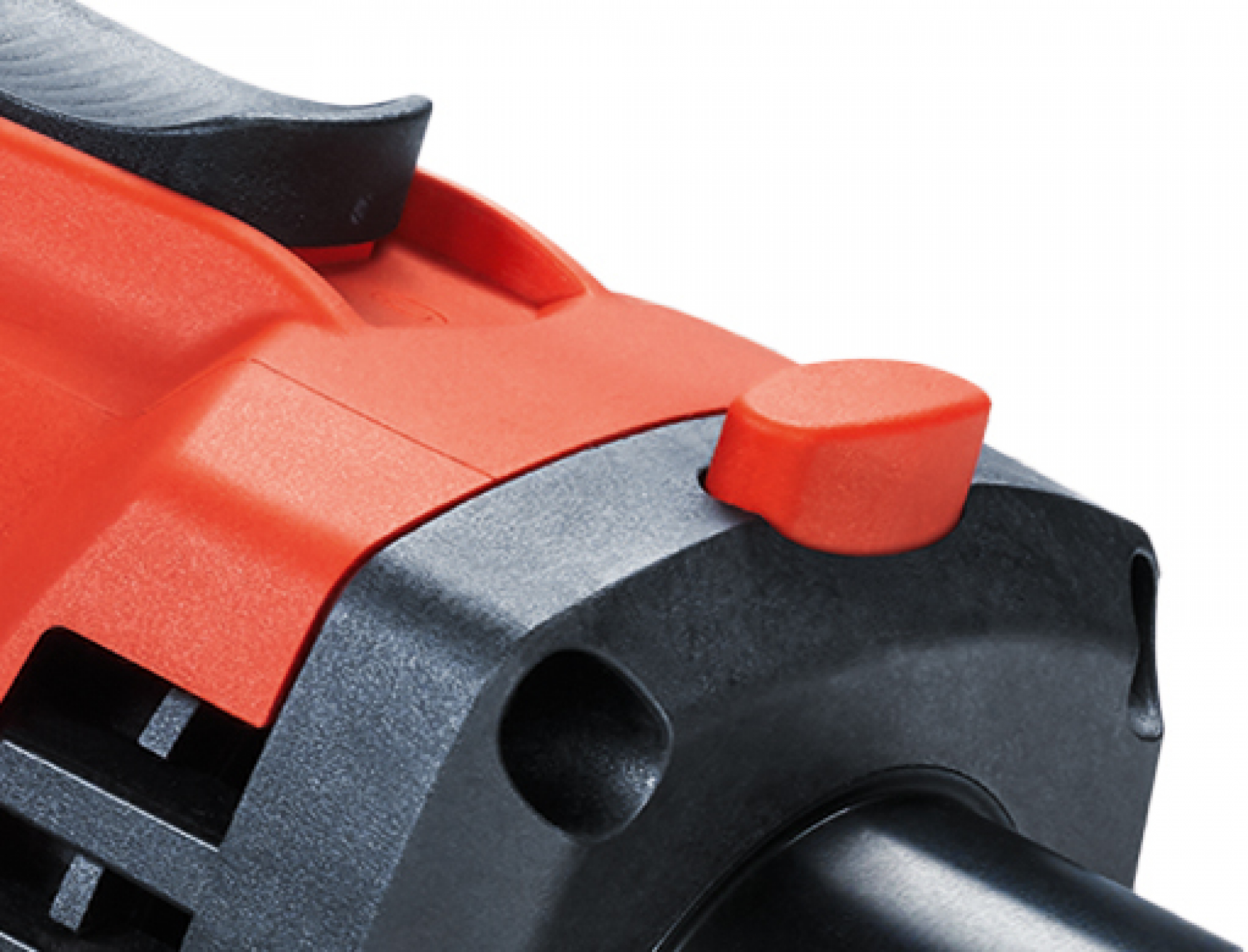

The spindle can be locked at the push of a button for easy and convenient tool changing.

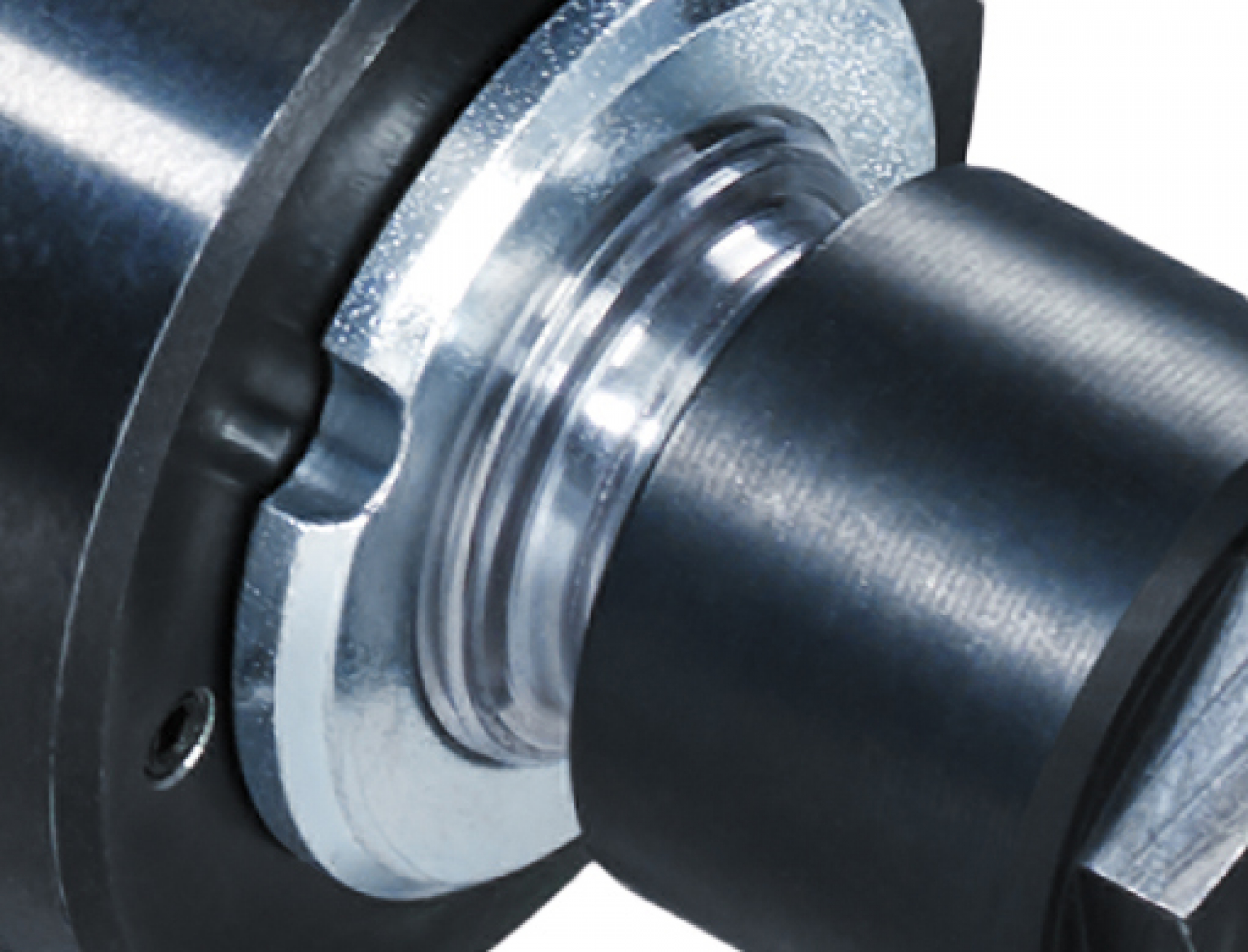

DOUBLE MOLDED SPINDLE
A closed double ball bearing is used to better absorb axial forces.
| Technical specifications: | |
| Rated current consumption: | 1000 Watt |
| Nominal idle speed: | 4.000 - 25.000 rpm |
| Tension clamp: | 43 mm |

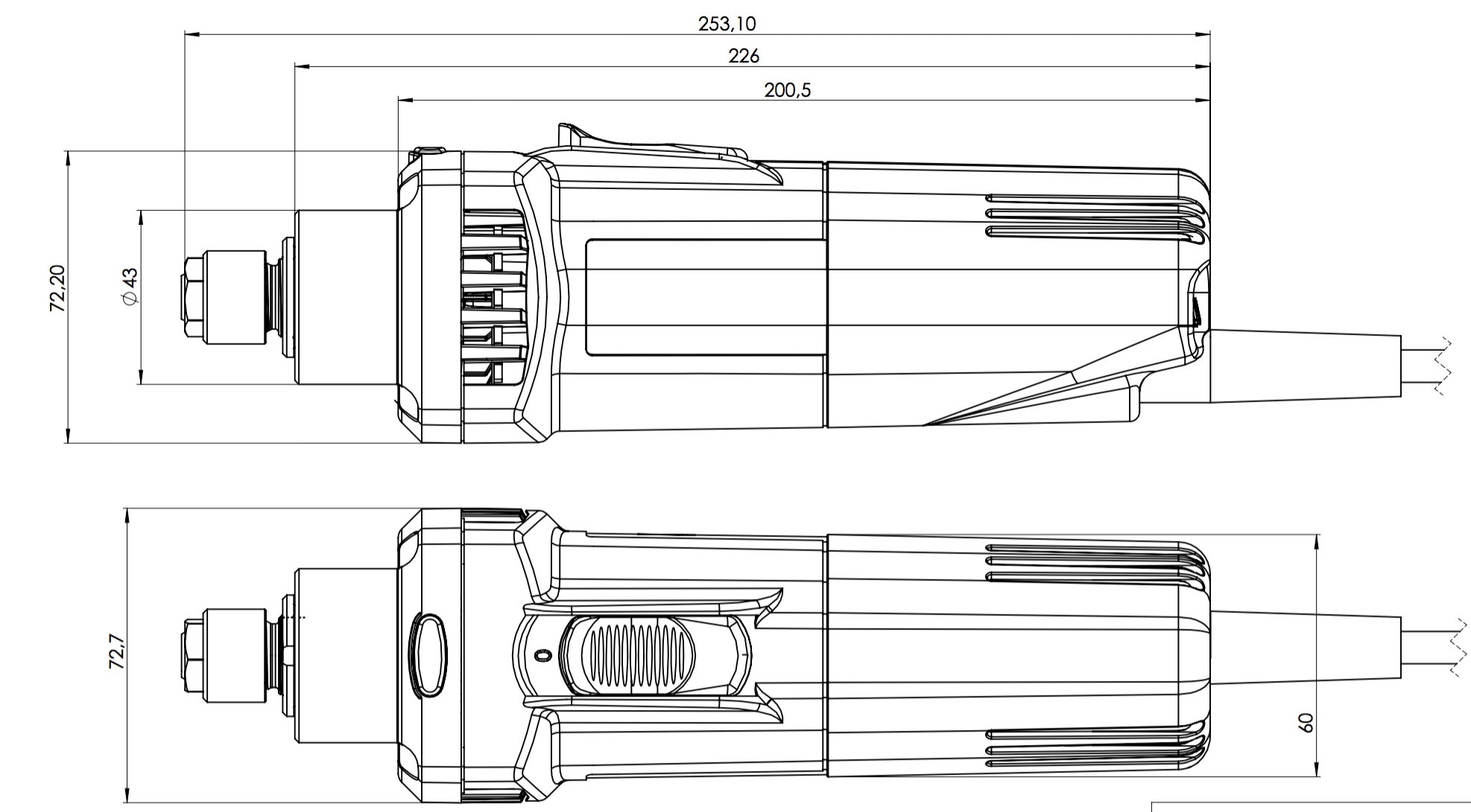

| Dimensions L x H x W: | 254 x 79 x 73 mm |
| Sound pressure level db (A): | < 71 |
| Weight: | 1.65 kg |
Delivery:
- milling motor 9M0001
- collet OZ 8 diameter 8 mm
- collet nut OZ 8
- wrench
- power cord 4 m
Hint :The OZ 8 size collets and collet nuts are available in various sizes matching your cutting tools shanks.
Please be aware that the AMB/Kress collets could be use with the appropriate AMB collet nut. However a mix of the two systems should be avoided.
Datasheet (german)
CAD file
