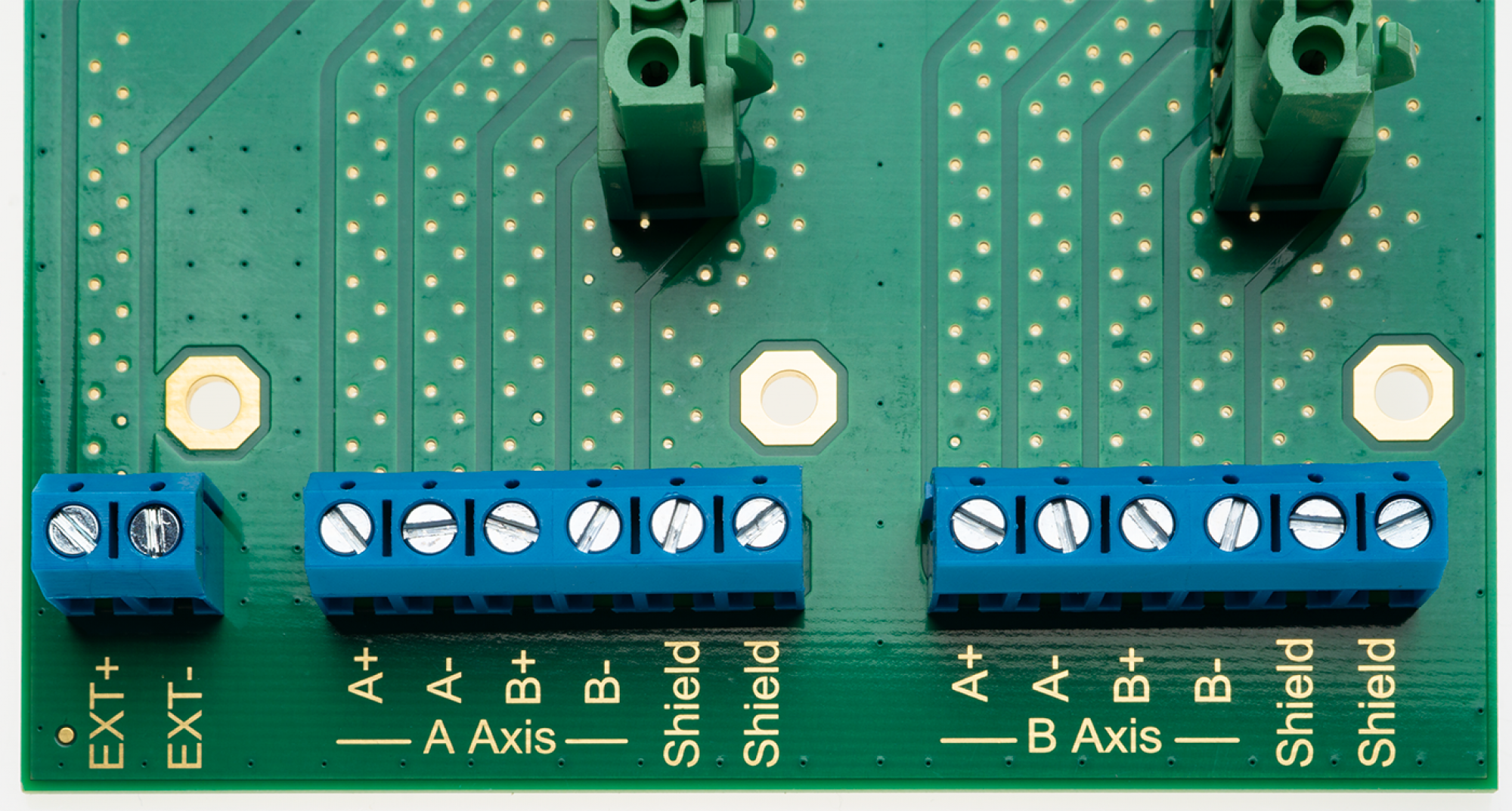

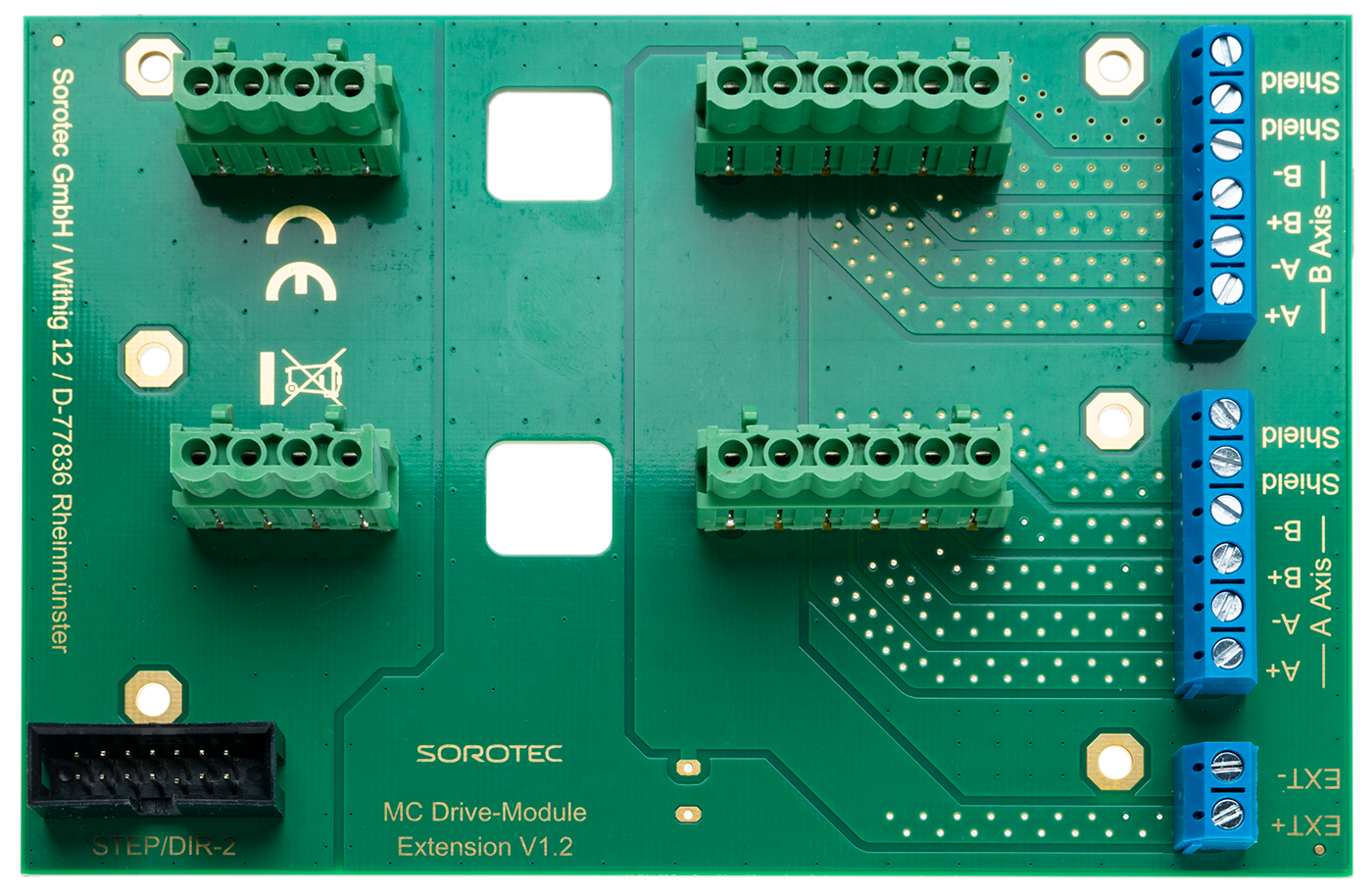

Control unit series C3 Drive Module Extension 542 V1
MINI Control Drive Module Extension 542 V1
With the Drive Module Extension, the MINI Control can be expanded by two additional axes in no time at all, for example to be able to control a turntable or operate up to two stepper motors in parallel. The slot for the supplementary circuit board is already prepared. Installation is uncomplicated, the connection follows the pattern of the existing three axes in an almost self-explanatory manner. Configure and plug in the stepper drivers (to be ordered separately) - done.Scope of delivery:
- Extension board Drive Module Extension 542 V1
- Connection cable
- Mounting screws
Installation instructions (german)Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
