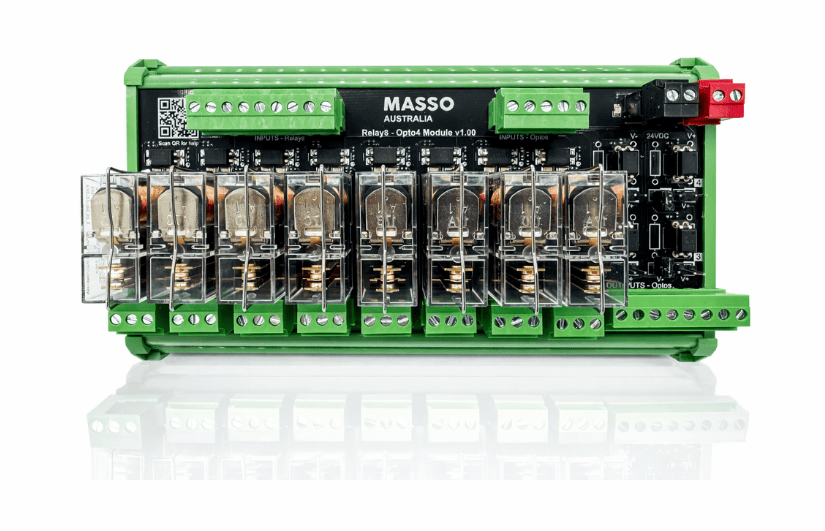

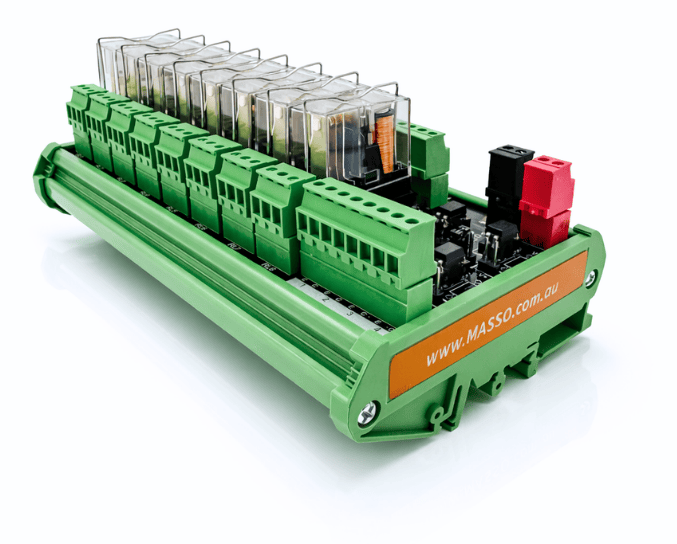

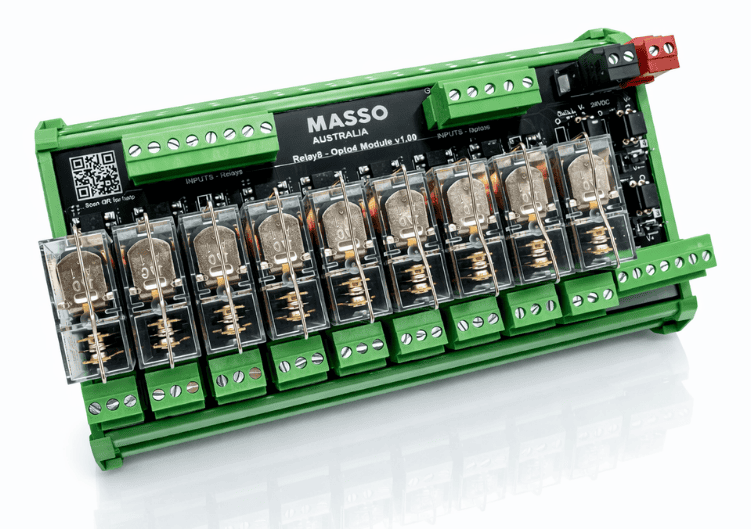

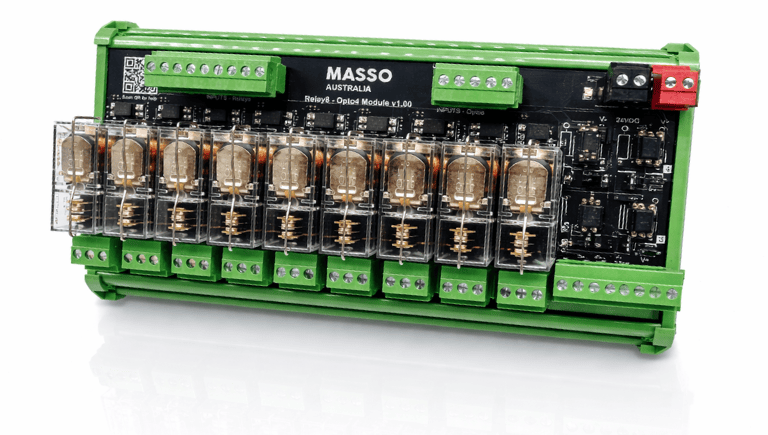

MASSO Relay Module 8R/O4/24V
NEW
MASSO Relay Module 8R/O4/24V
The MASSO relay module provides optical isolation to high voltage/current signals from MASSO controller.Multi color LED’s for each relay helps easily troubleshoot issues.Green color LED indicates that a signal is received to switch on the relay and the relay has been switched on. Red color LED indicates that a signal to switch on the relay has been received but the relay has failed and not working.
- 8 x independent relay channels
- 4 x opto-isolated outputs for sensitive equipment
- Electrical isolation for improved system protection
- Works with a single 24VDC power supply.
- Each relay supports up to 5A at 28VDC or 5A at 240VAC
- Operates from a single 24VDC power supply
- DIN rail mountable
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
