MASSO G3 Touch integrated CNC Controller with Touchscreen - Professional edition
NEW
MASSO G3 Touch integrated CNC Controller with Touchscreen - Professional edition

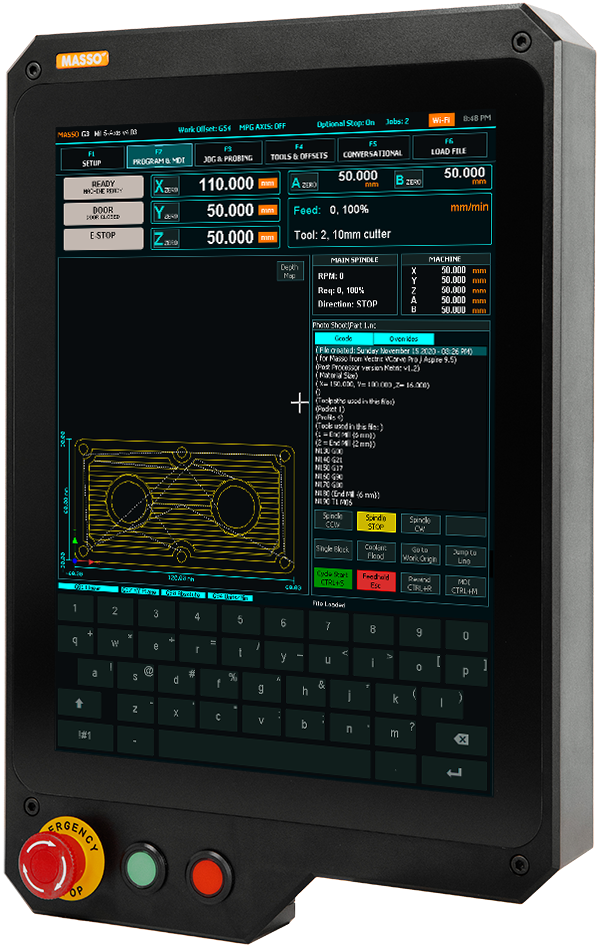

Fully integrated touch screen CNC controller powered by MASSO G3. With a 15-inch industrial capacitive touch LED screen, MASSO G3 Touch is a standalone CNC controller with fully integrated hardware and software. Enjoy all the features and perks of the PC-less MASSO G3 at the touch of your fingertips.Range of functions - Professional edition:
- 5-axis motion control with slaving
- Extended Tool & Work Offsets
- Automatic tool changer support
- Dry run mode for safe testing
- Advanced inputs and output control using G-Codes
- Multi-head support for complex machining operations with multiple cutting heads
- Integrated support for plasma, waterjet, oxy-gas, scribe, pen & camera
- Cutter compensation
- Jump to Line – Resume jobs after machine or power failures
- QR scanner support for easy job loading
- Alarms
- Automatic machine lubrication control
- Create macros with Lua
With MASSO G3 Touch you get:

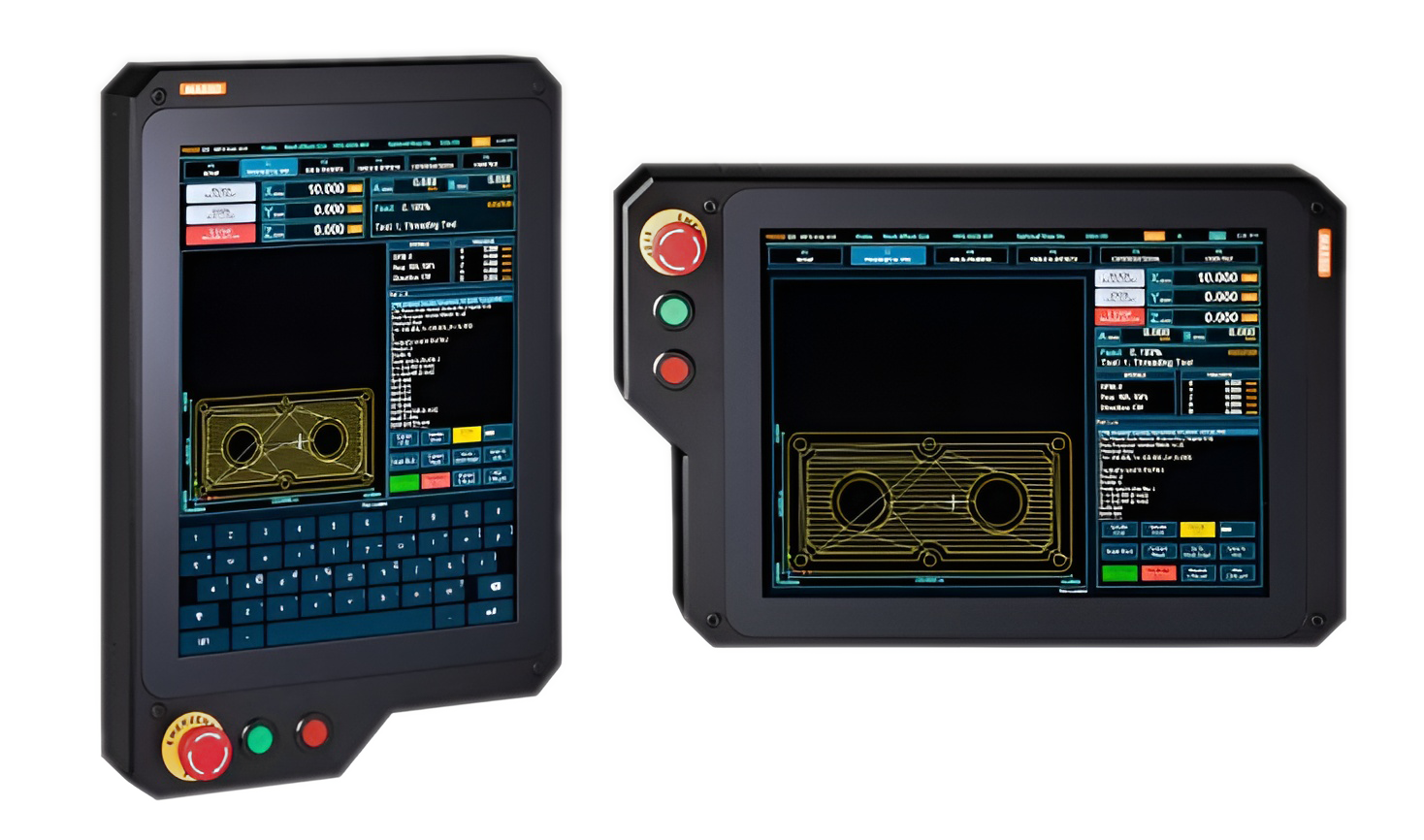

- Switch between vertical or horizontal interface with a single click.
- Vertical interface features a full touch keyboard.
- Easily wire, install accessories and service the unit while mounted on the machine.
- Aluminium rear plate for easy mounting can be used as a heat sink.

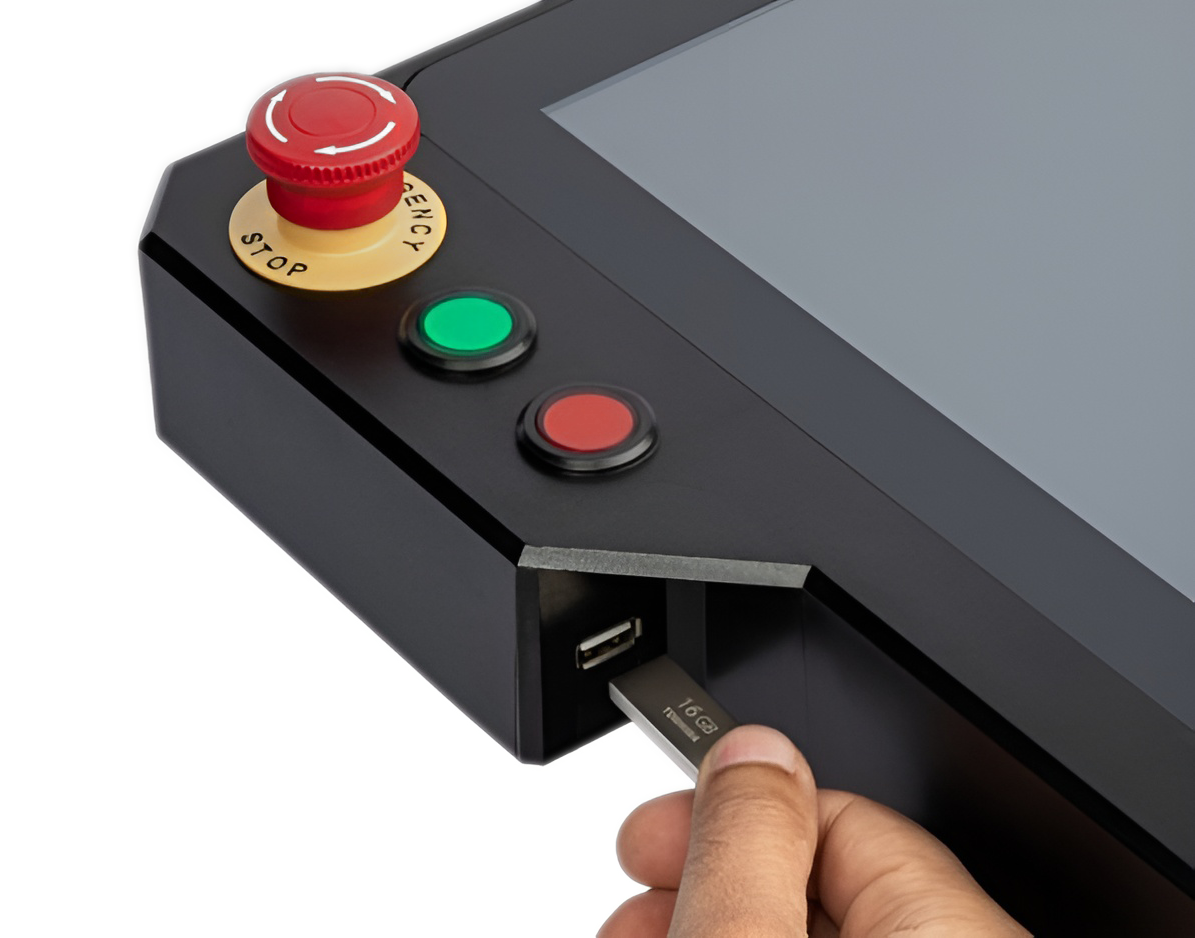

- E-Stop, cycle start, and cycle stop buttons for easy machine control.
- Easy USB flash drive access to load and run G-code files.
- Runs on a single 24VDC power supply.
- No cooling fans or dust filters required.
- 1 x Battery C2032
An internal backup battery is required for the controller to work properly.
