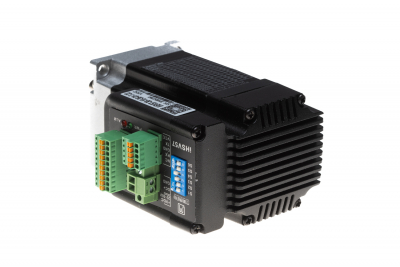

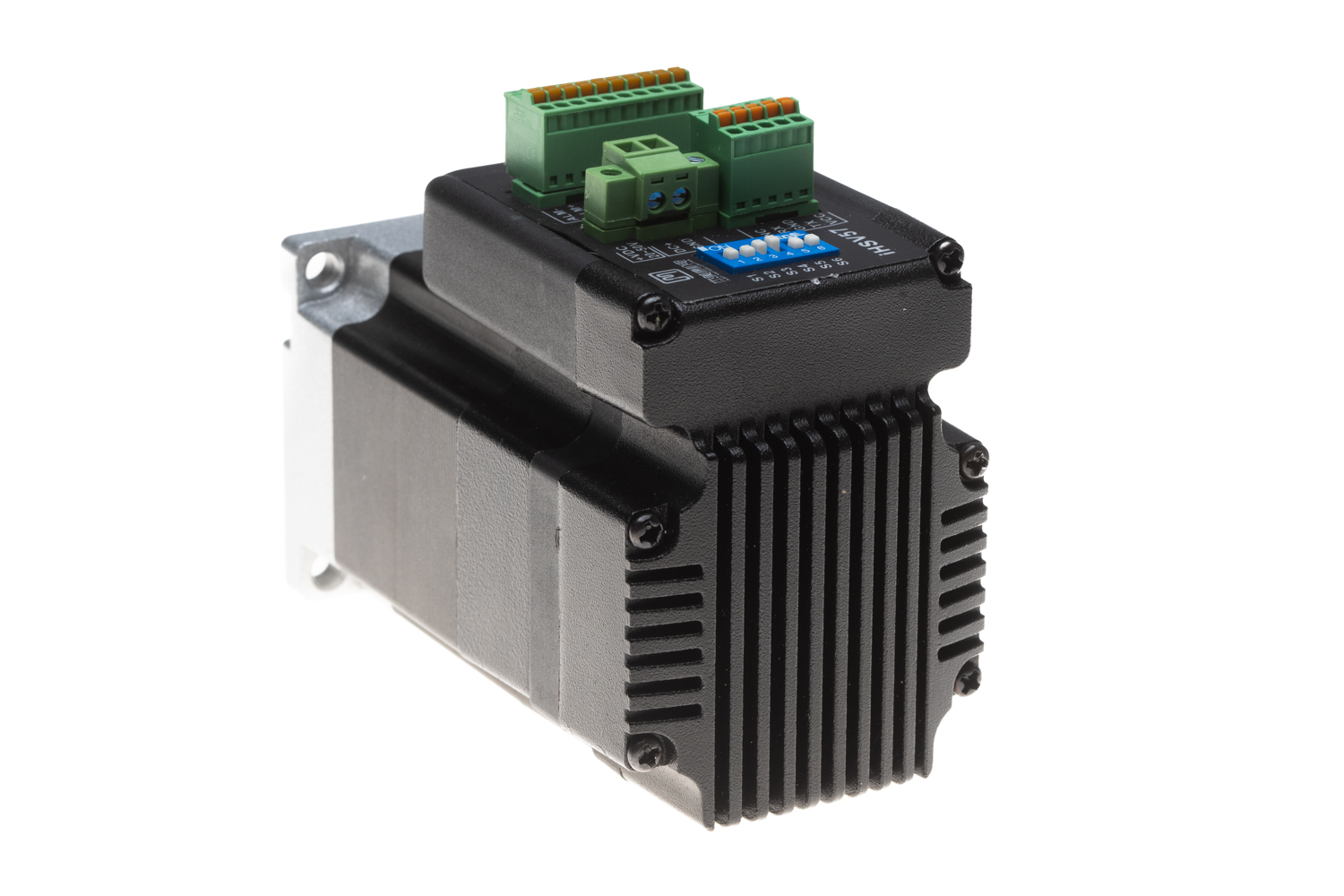

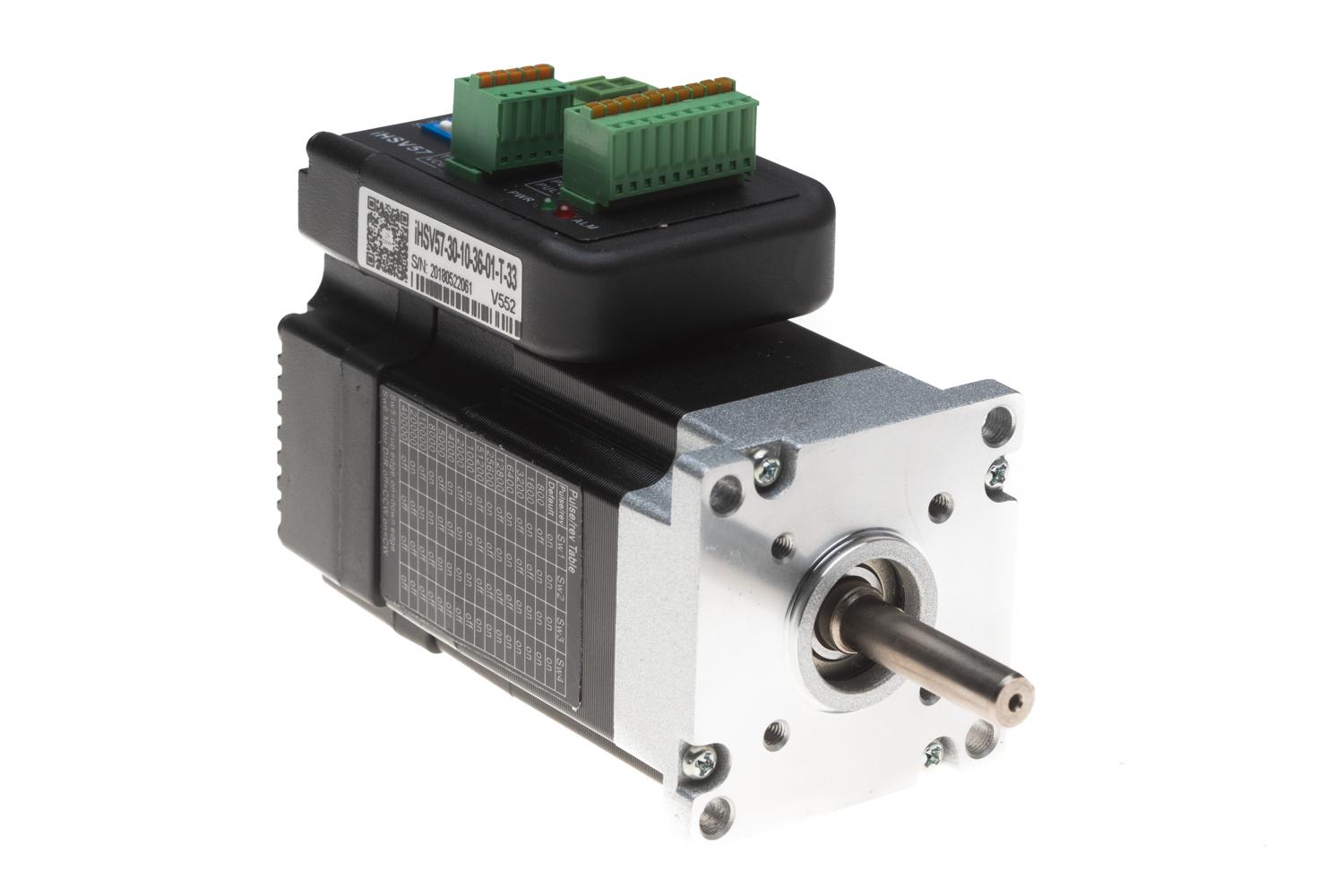

JMC servo motor with integrated power stage
IHSVC57-30-10-36-21-38-POCA | 100 Watt | NEMA 23

Length of shaft: 21 ± 1 mm Shaft diameter: 8 mm Center diameter: 38.1 mm Hole spacing NEMA 23: 47,14  mm

Compact, precise, smooth running

The integration of the power amplifier directly into the motor brings a whole host of advantages to JMC servo motors: Instead of the compromised power electronics required for many very different servos, the power amplifier here is perfectly matched to the motor by a DSP-optimized vector control for maximum torque under all load and speed conditions.

Almost incidentally, this also results in exemplary quiet and smooth motor operation. Added to this is the significantly reduced effort required to build the controller and simplified wiring. Compared to other solutions, JMC servos also stand out with their affordable price.

Technical specifications:
Rated power: 100 W
Rated torque: 0.29 Nm
Rated speed: 3000 rpm
Operating voltage: 36 V
Current consumption: 3.5 A

Input signal: Pulse / Direction (PUL/DIR)
Parameterization via DIP switches and RS 232 / software
