Inlay cutter Z2 Ø 1 mm Wood
Inlay cutter

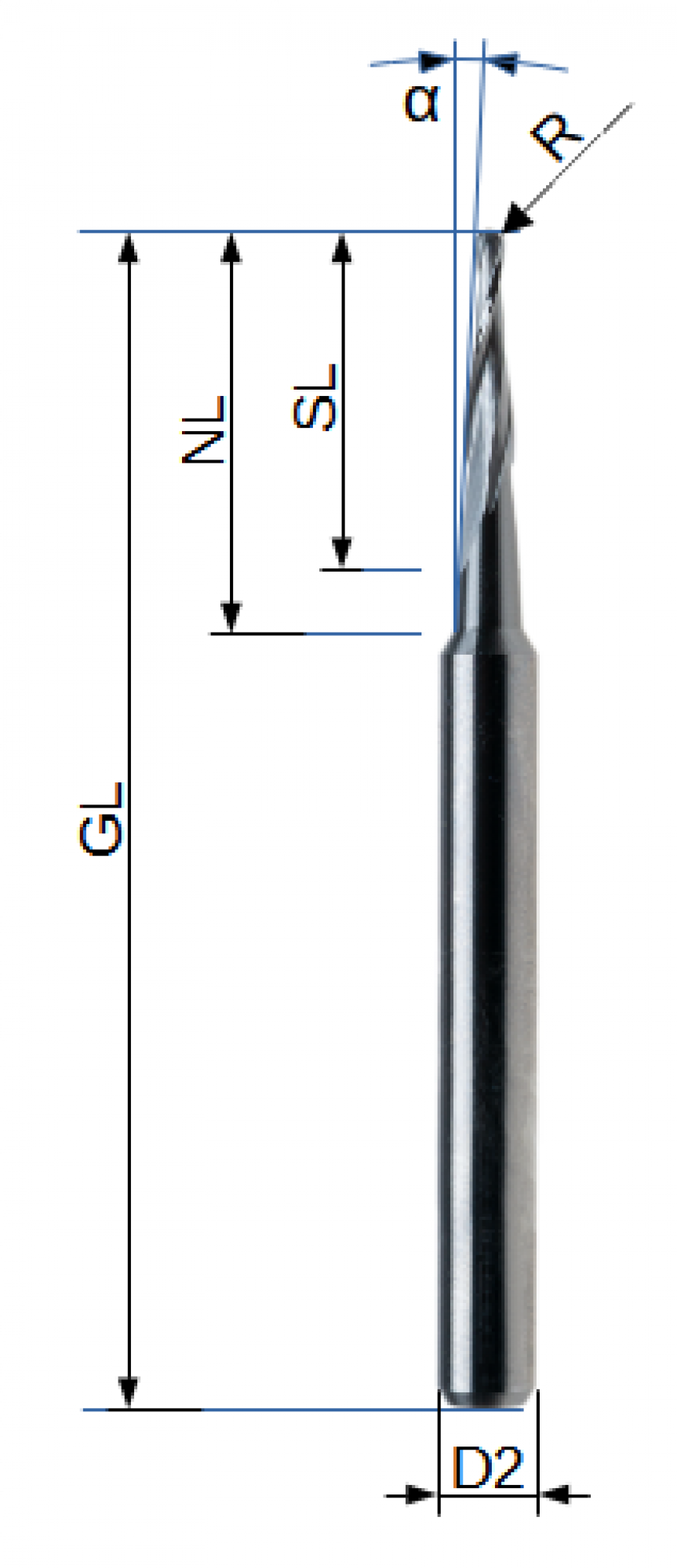

For inlay work in wood. Both the indentations and the outer contours of the inlays can be manufactured with a precisely fitting chamfer using the inlay cutter.Technical Specifications:
- D1 (2 x R): 2 mm
- D2: 6 mm
- SL: 13.5 mm
- GL: 70 mm
- Cone angle: 2.8°
Applications:
- Wood
