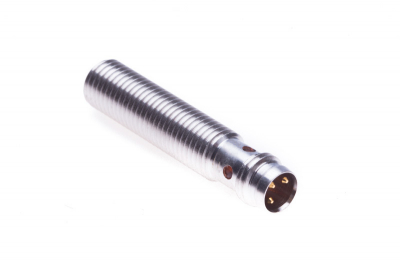

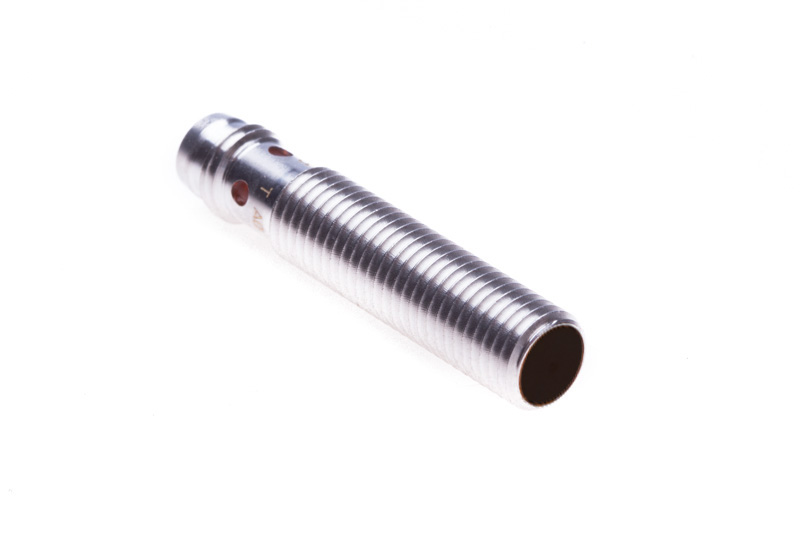

Inductive switch M8 24 V 4 mm PNP NO
Inductive Switch
Data:- Omron E2B-S08KN04-MC-B1 OMI
- Type: PNP NO
- 12 ... 24 VDC
- Power consumption max. 10 mA
- Switching output load current max. 200 mA
- Housing: stainless steel
- Protection class: IP67
- Operating distance: 4 mm
- Reverse polarity protection
- Fixing: M8 x 1
- Length: 44 mm
- Status LED visible from all directions
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
