Handwheel HR-20

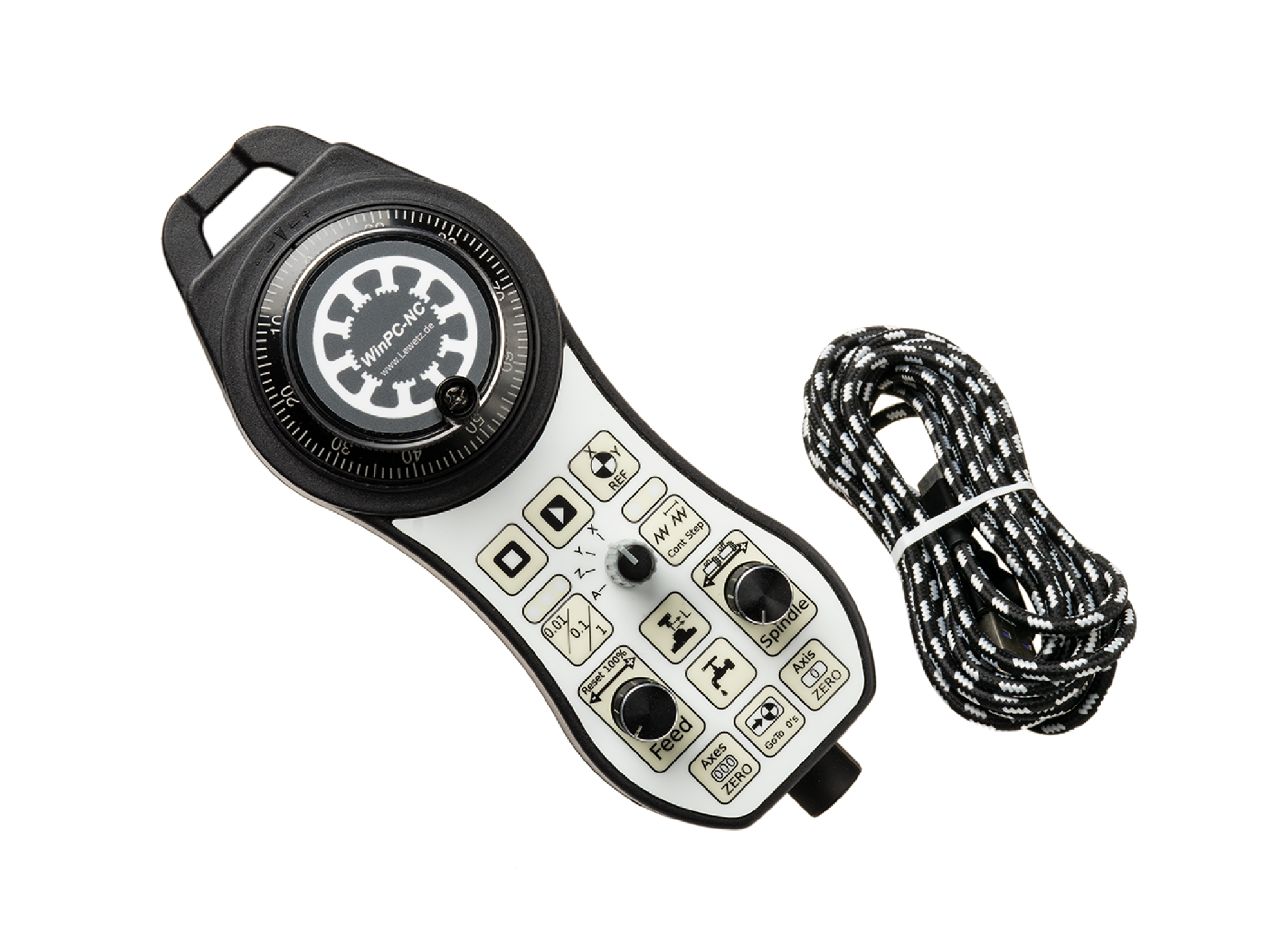

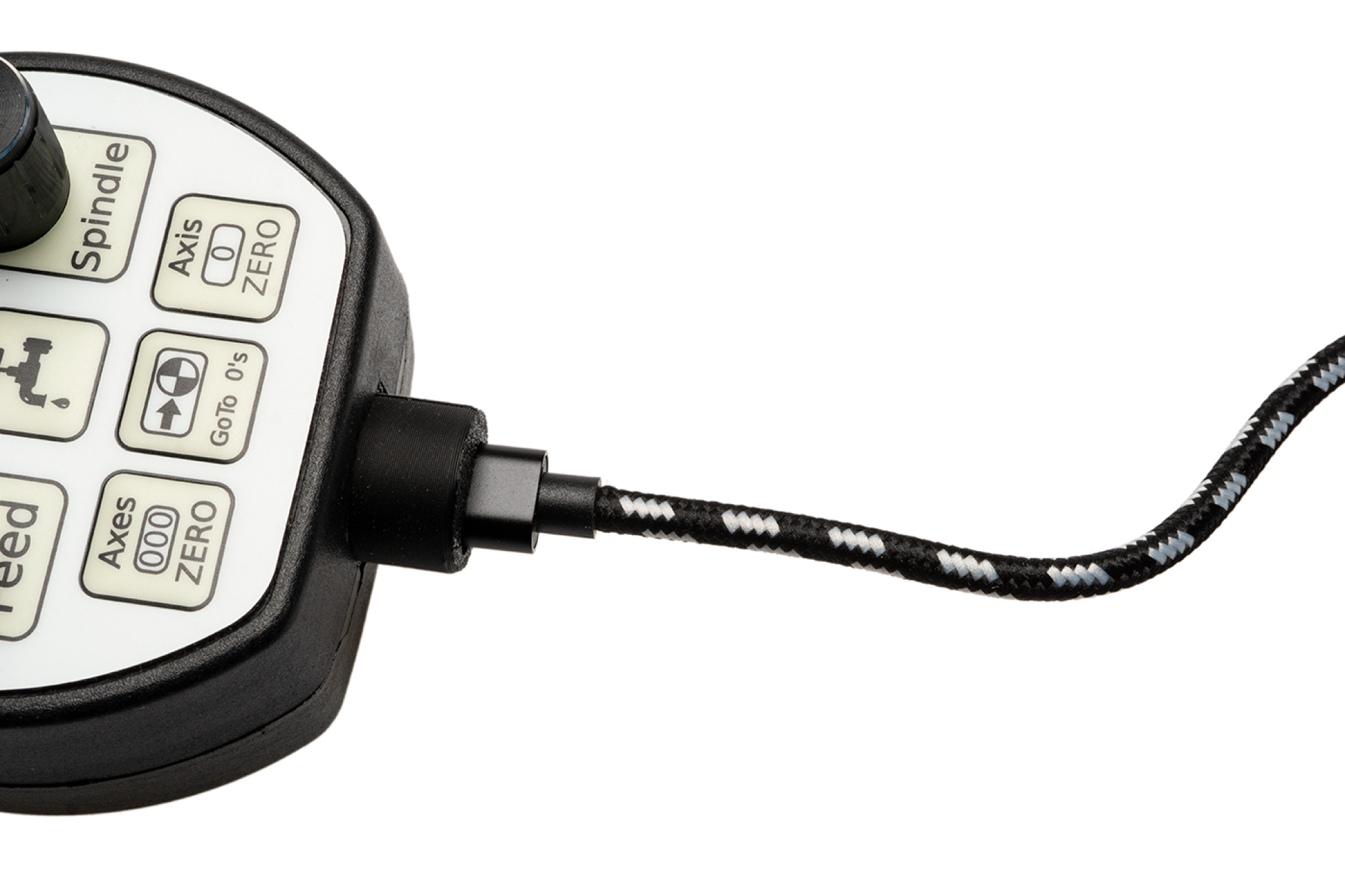

The HR-20 handwheel is equipped with a replaceable 3 m cable and USB plug. With the new, more ergonomic housing, the HR-20 fits even better in the hand and can be perfectly stowed away on the CNC machine with the retaining bracket. The axes are conveniently controlled on the HR-20 via a rotary switch. The handwheel is automatically integrated by Windows and only needs to be activated in the WinPC-NC parameters under Basic Settings-interface. Start today and experience a new dimension of machine operation with WinPC-NC and the HR-20 handwheel.

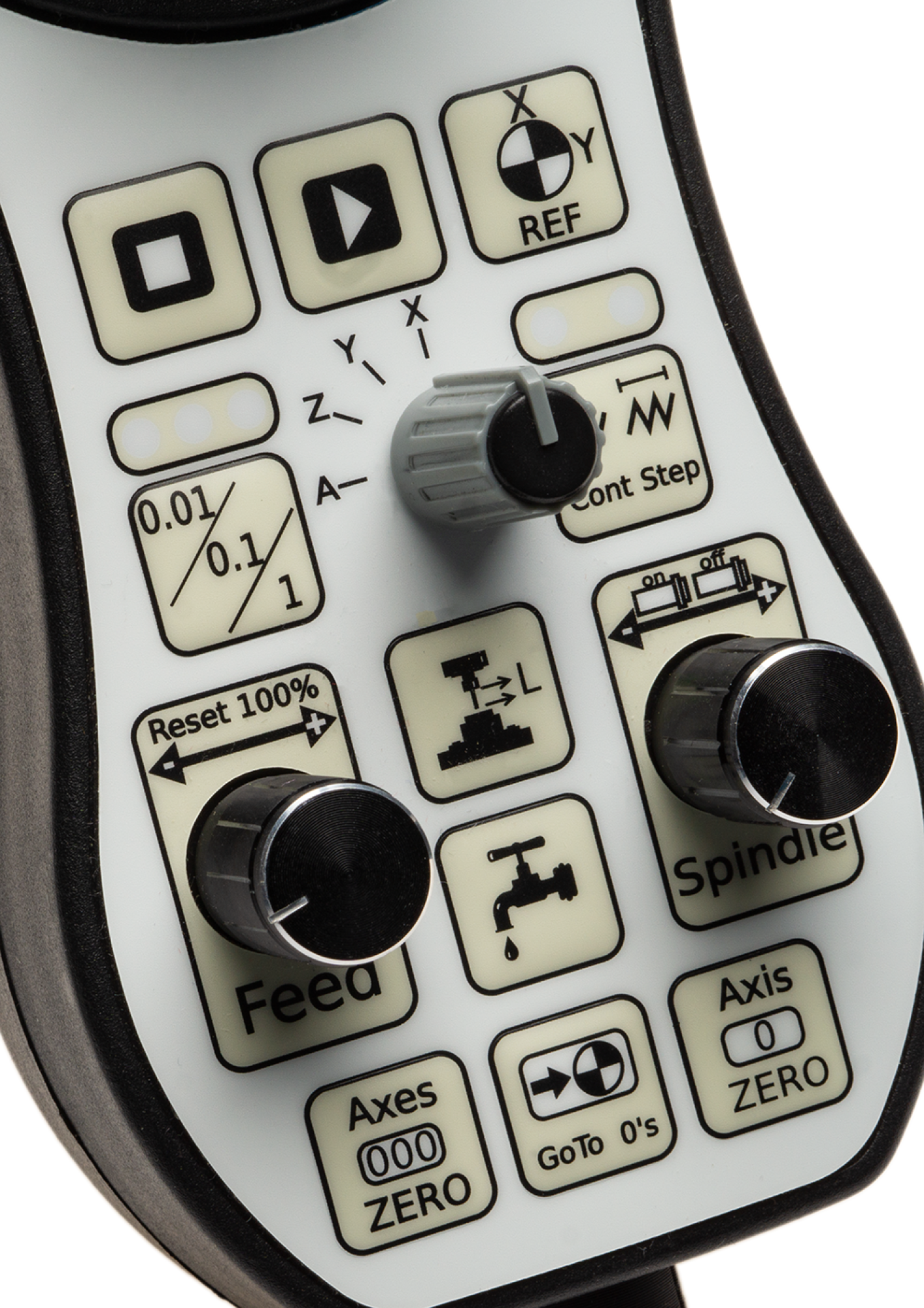

The HR-20 handwheel supports the following functions:
- Selection of all 4 axes

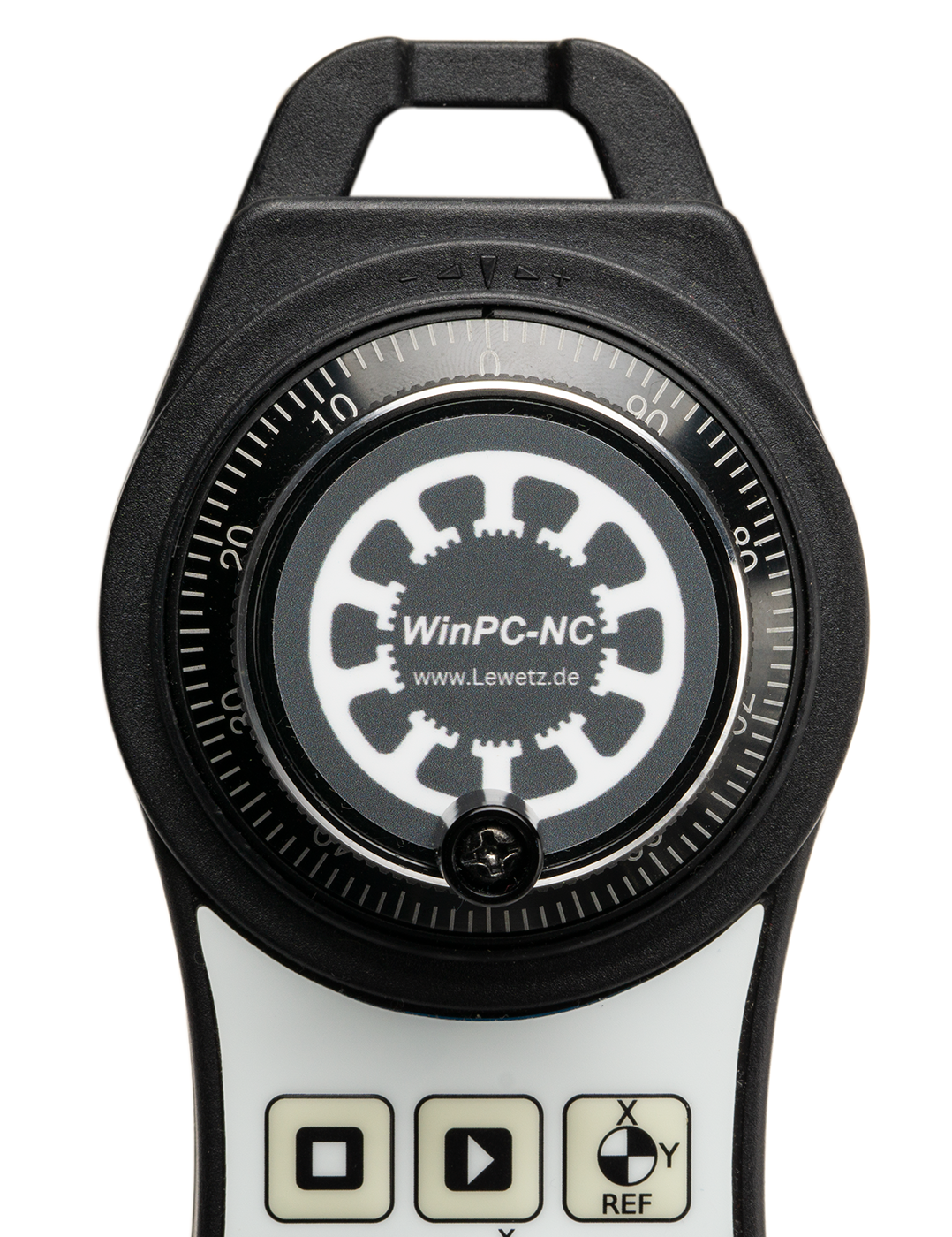

- Very precise positioning thanks to high-resolution rotary encoder
- Step-by-step movement with adjustable width
- Continuous movement as long as it is turned
- Special speed mode with variable speed
- Start/stop of loaded jobs
- Save and approach zero points
- Switch spindle and cooling on/off
- Speed and spindle override during job
Handrad_HR-20_Infoblatt.pdfManufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
