Scope of application:
• for drilling in steel, steel, cast iron, wood and plastic
• incl. Keeper for
Technical specifications:
• according to DIN 338

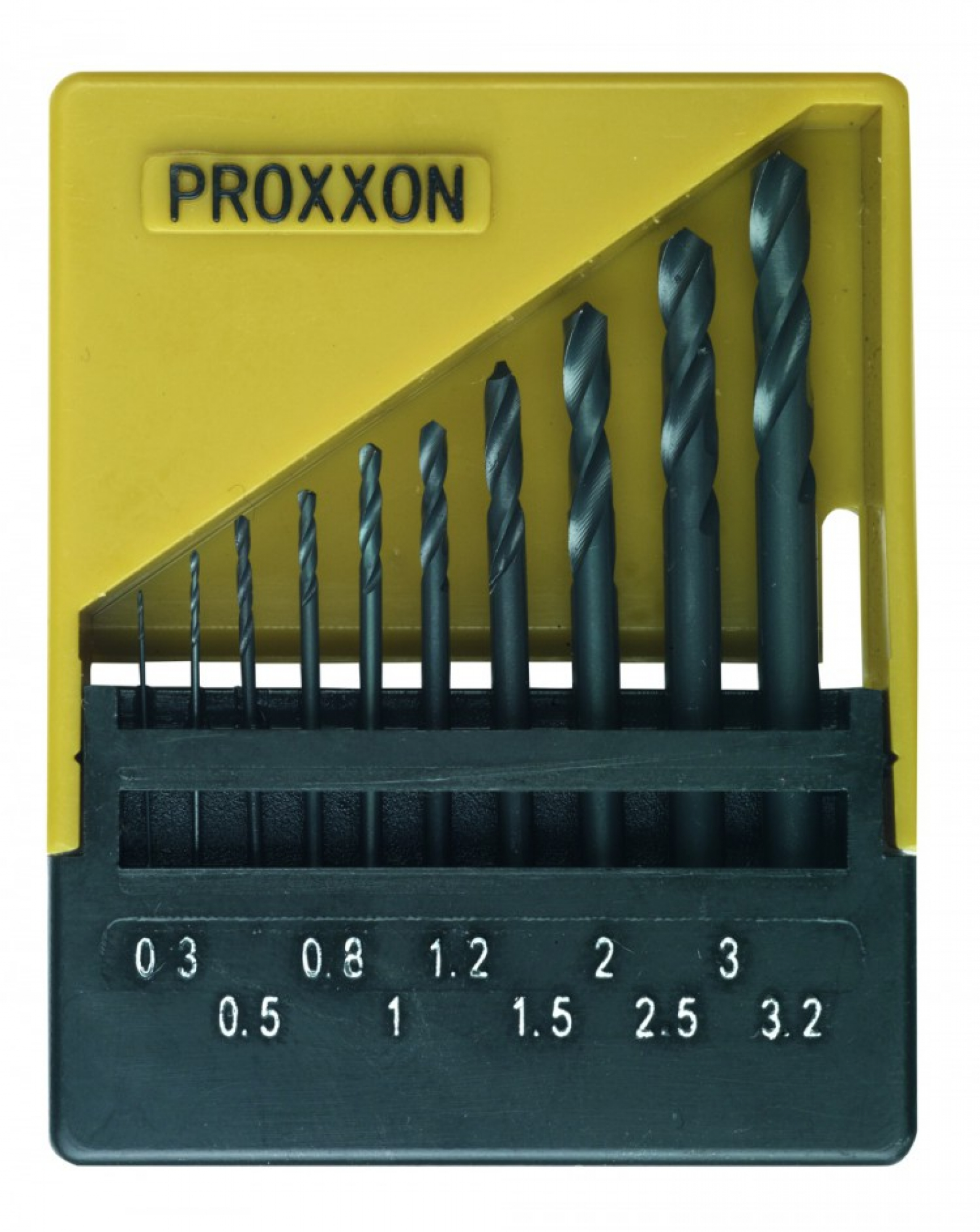

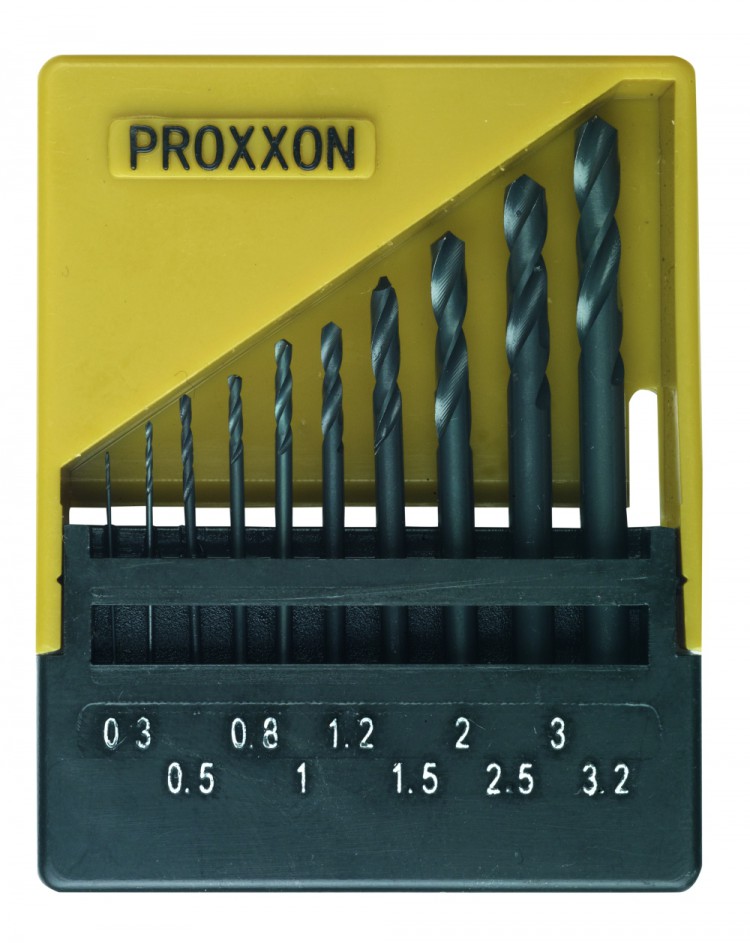

Sizes included (specify diameter)
• 0,3 - 0,5 - 0,8 - 1.0 - 1.2 - 1.5 - 2.0 - 2.5 - 3.0 - 3.2 mm
optimal working speeds:
• Diameter 0.3 to 1.2 mm steel 6000-8000 U / min
• Diameter 0.3 to 1.2 mm wood about 10,000 U / min
• Diameter 1.5 to 3.2 mm steel 2000-5000 U / min
• Diameter 1.5 to 3.2 mm wood 4000-7000 U / min
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
