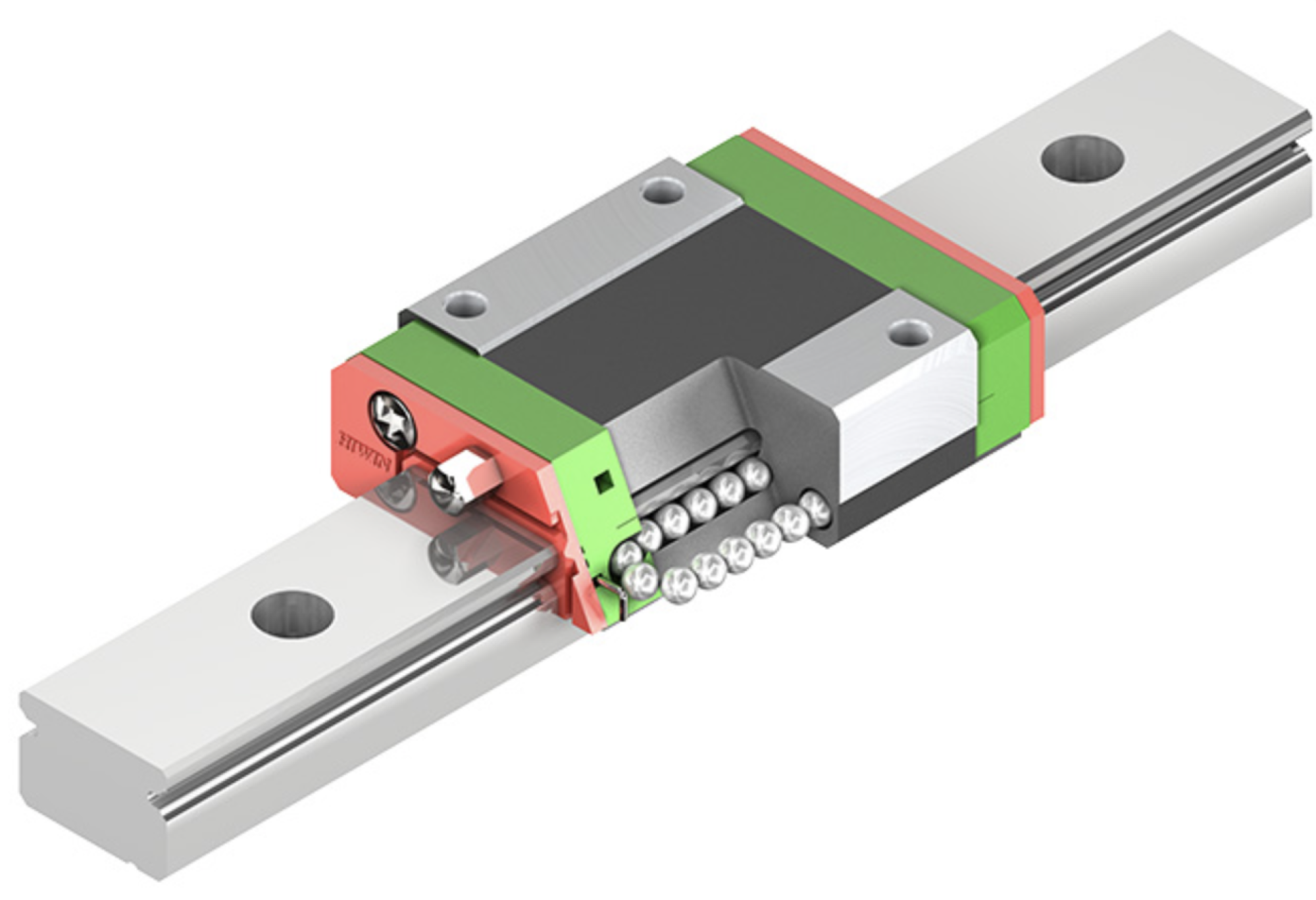

HIWIN mini guide MGN09CZ0HM
HIWIN miniatur guide MGN09-C-Z0-H-M
Series: MGNPreload: light (Z0)
Accuracy class: H (high)
Weight: 0.030 kg
- Gothic tread profile
- Balls are secured by retaining wire in the carriage
- 2-row recirculation ball bearing guide
- Compact and lightweight design
- Carriage & balls made of stainless steel
- final sealing

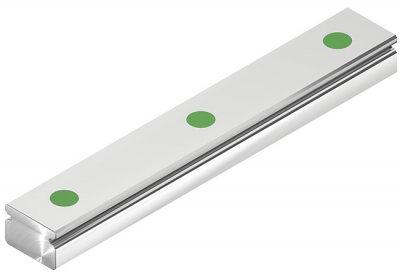

Linear guideway: MGN09-R
Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
