HIWIN Block HGH20CA-ZA-H
HIWIN Block HGH20CA-ZA-H
Series: HGHPreload: middle (ZA)
Accuracy class: H (high)
- Industry-quality
- backlash free
- 4-row recirculation ball bearing guide
- 45° contact angle of ball tracks
- High loading capacity in all loading directions
- High accuracy
- 6 Options for connecting grease nipple or lubrication adapter

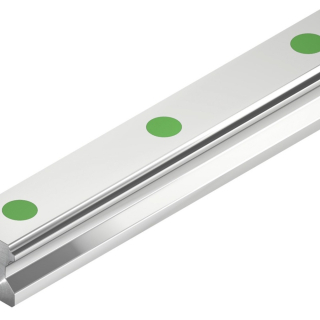

Linear guideway: HGR20R
Drawing and dimensions
Mounting Instructions (german)Manufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
