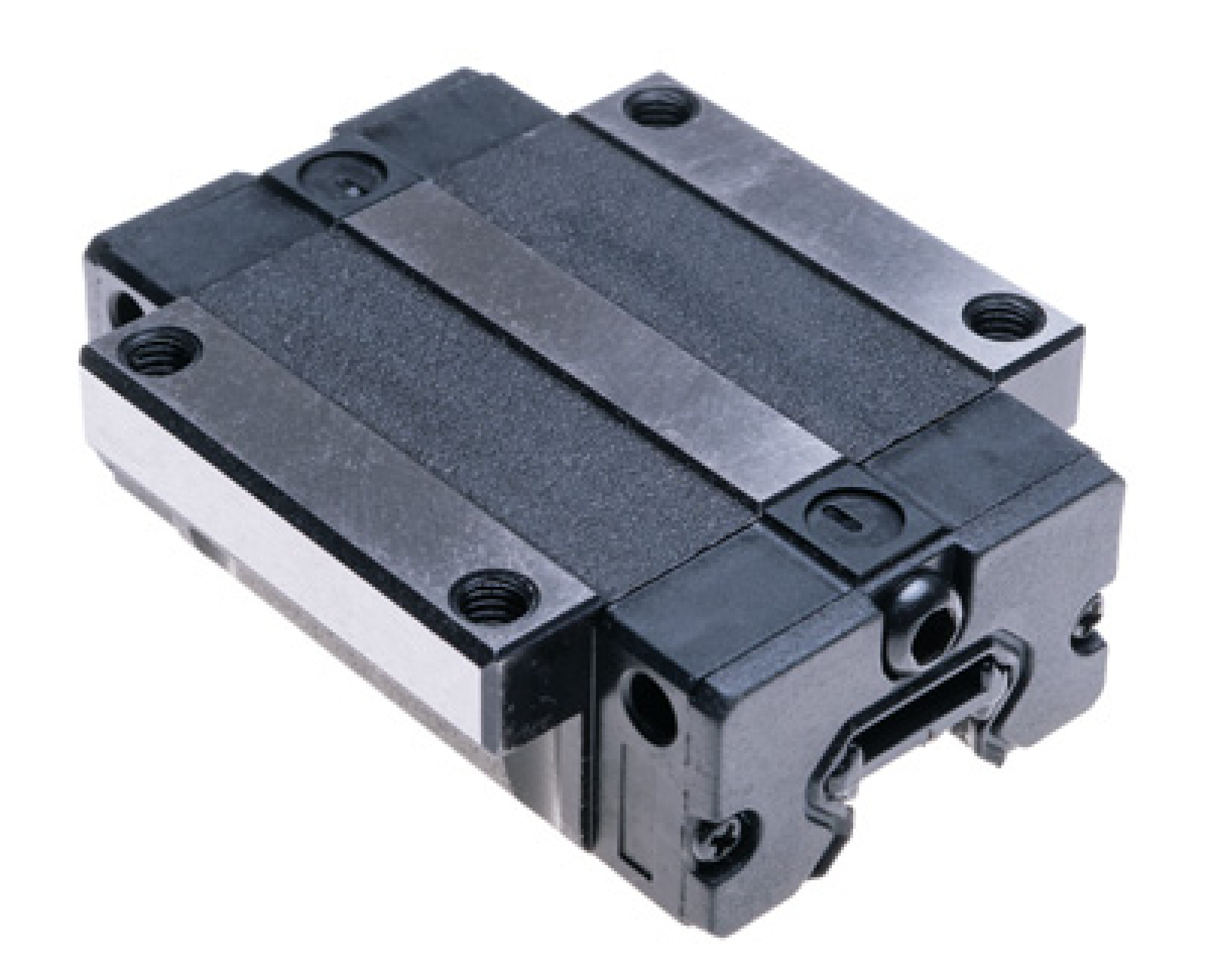

HGW30HC flange slide block, long
HGW30HC flange slide block, long
Recirculating ball rail guide with medium preload
- Linear guide blocks for HGR30-Linear guide rails
- Precisions class: P
- Material Linear guide blocks: 20CrMo
- Plastic wiper

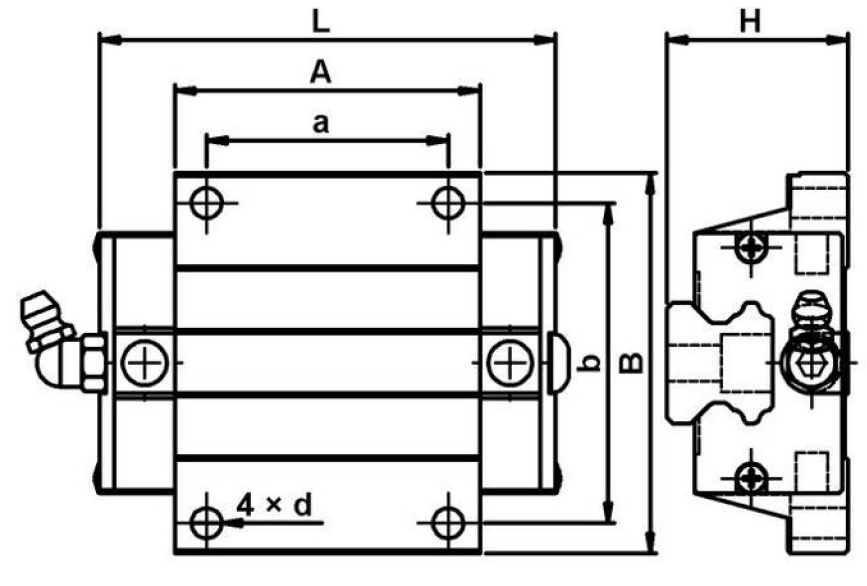

L = 121.4 mm
H = 42 mm
Grease nipple included
Datasheet (german)Manufacturer: | Responsible person: |
