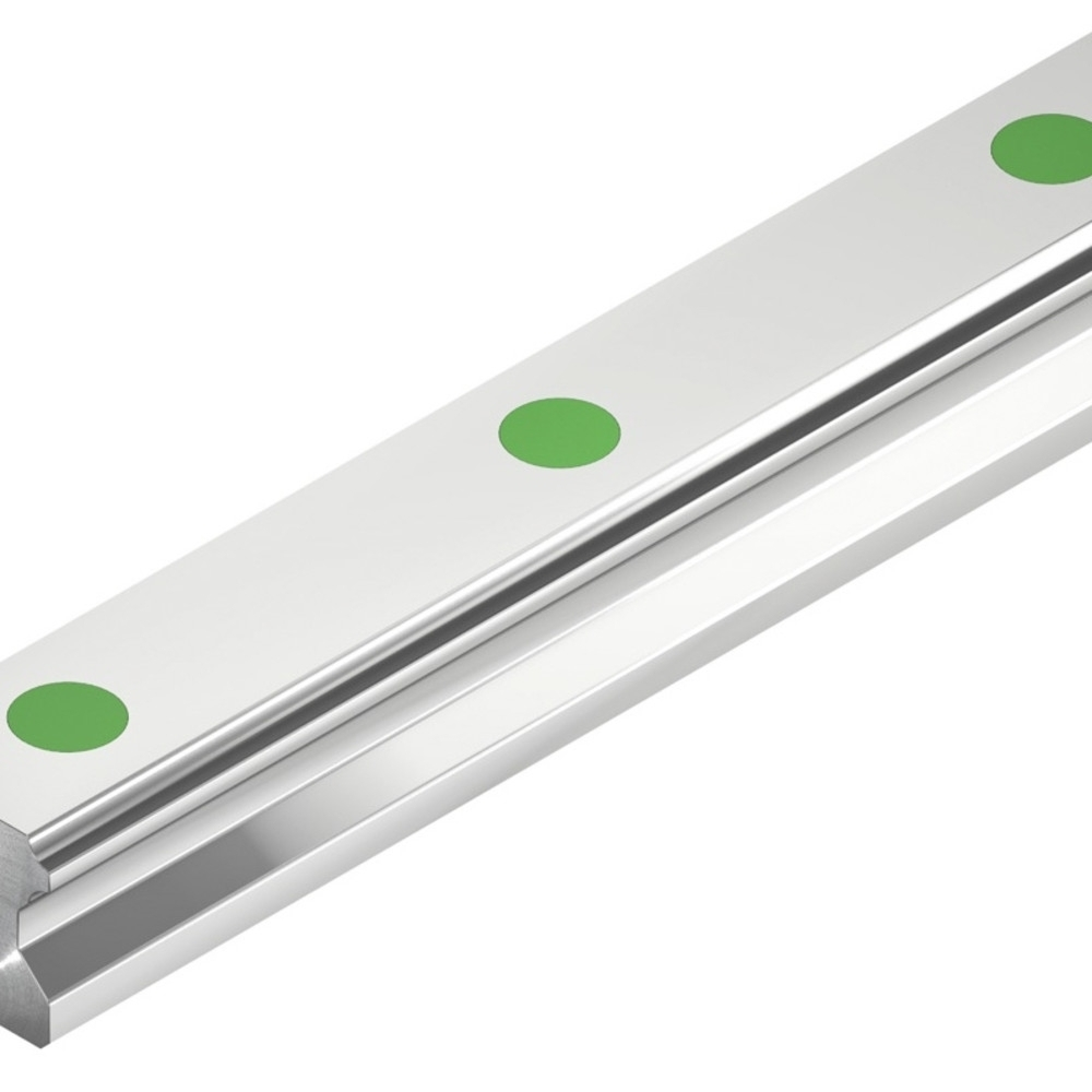

Rail HIWIN HGR fits to HIWIN HG & QH carriage.
The hole spacing of the mounting holes for M4 screws is 60 mm.
Attention: The dust protection caps are not included in the scope of delivery and must be ordered separately.
The hole pattern of HIWIN rails arranged symmetrically. The fastening of the profile rail takes place from above by means of through holes.
Length: 60cm
There are also available on request special lengths.
To do this, select the next larger length and enter the desired special length in the comments section.
Example:
Desired special length: 490 mm - Select> 500 mm and enter the required special length of 490 mm in the comments section.
To CAD Data
Cuts are excluded from exchange and return.
