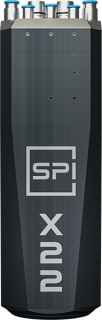

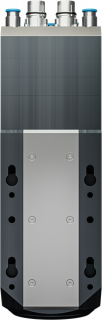

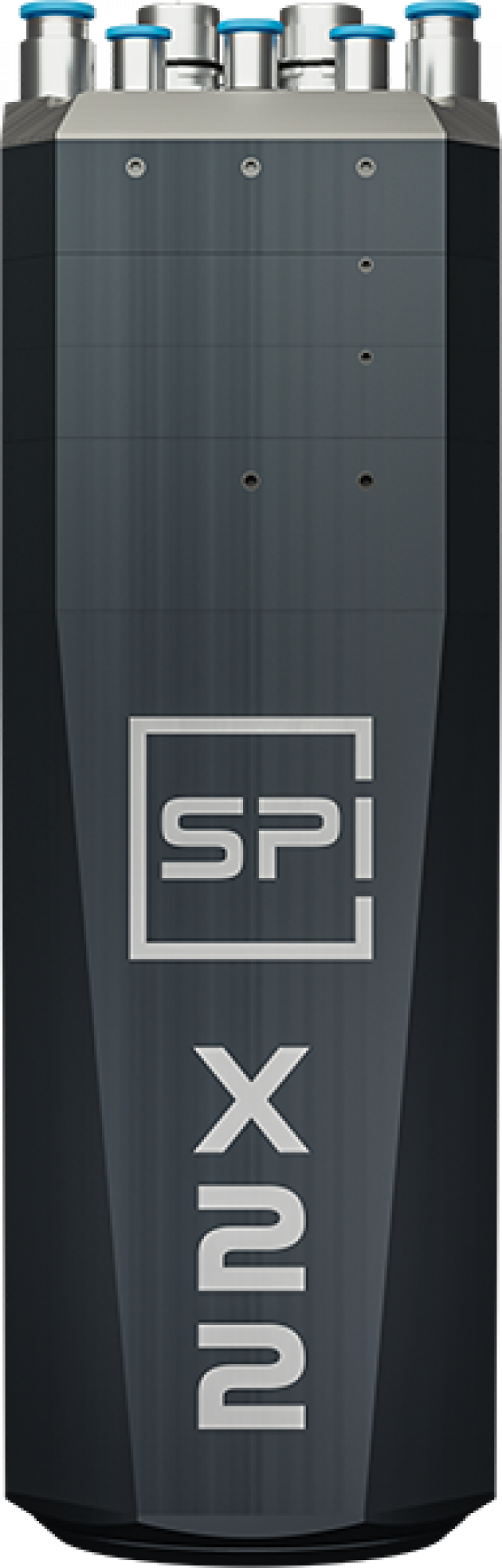

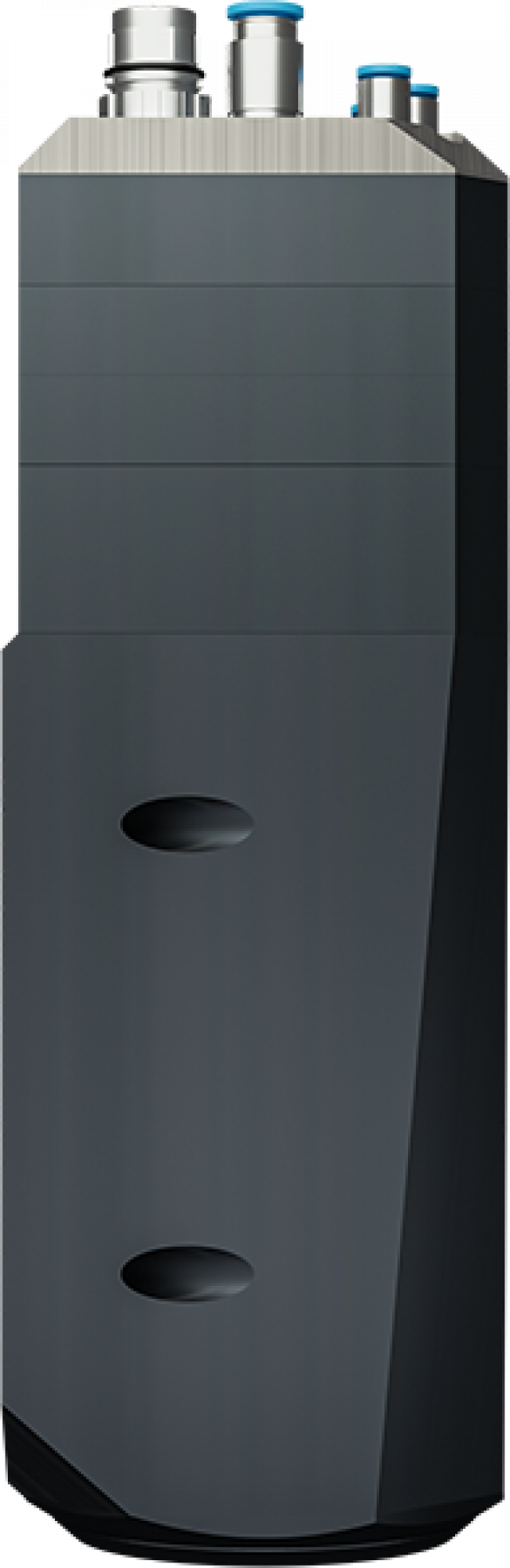

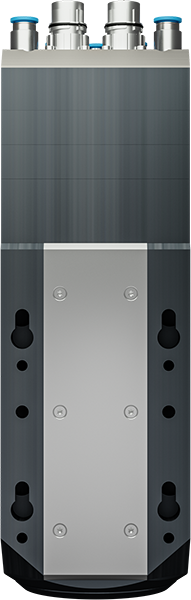

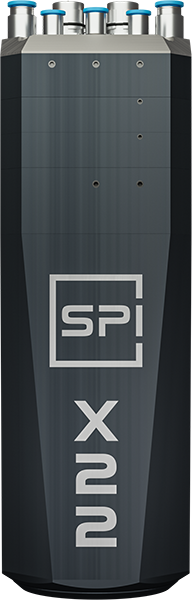

HF tool change spindle Spinogy 2.2 kW 2-pole | Liquid Cooling | SK20 | 30,000 rpm | 400 V
HF tool change spindle Spinogy 2.2 kW | SK20 | 30,000 rpm | 400 V
Description:- Compact and lightweight spindle solution
- Proven SK20 tool interface
- Spindle holder integrated in the housing
- Innovative 5-stage labyrinth seal
- Saving of sealing air
- Intelligent assembly system
- Made in Germany and the highest quality
Technical specifications:
- Motor: 2.2 kW, 400 V, 2-pole
- Maximum torque: 0.88 Nm
- Liquid cooling
- Tool interface SK20
- Speed: 30,000 rpm
- High precision spindle bearings
- High precision spindle bearing GMN

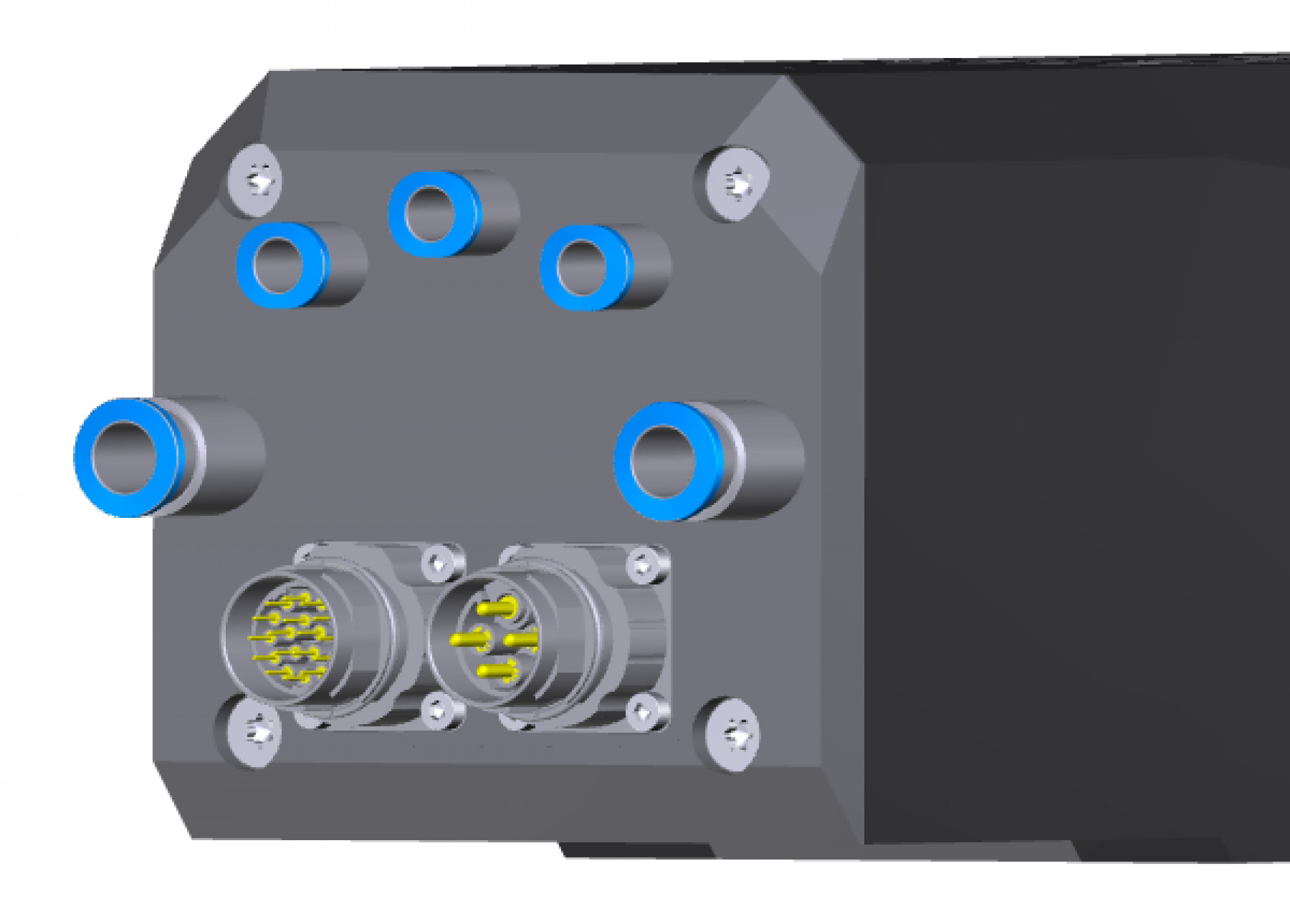

- Motor connector 9-pin straight
- Sensor connector 17-pin straight
- Temperature monitoring of winding head
- Inductive speed monitoring
- Precise clamping position monitoring
- Inductive piston position monitoring
- Weight: only 5.4 kg
- Protection class: IP54
- Gliding metal paste for clamping set
- Screw kit (fastening screws & dowel pins)
- Motor control line (see option selection at right)
- Sensor line (see option selection at right)
