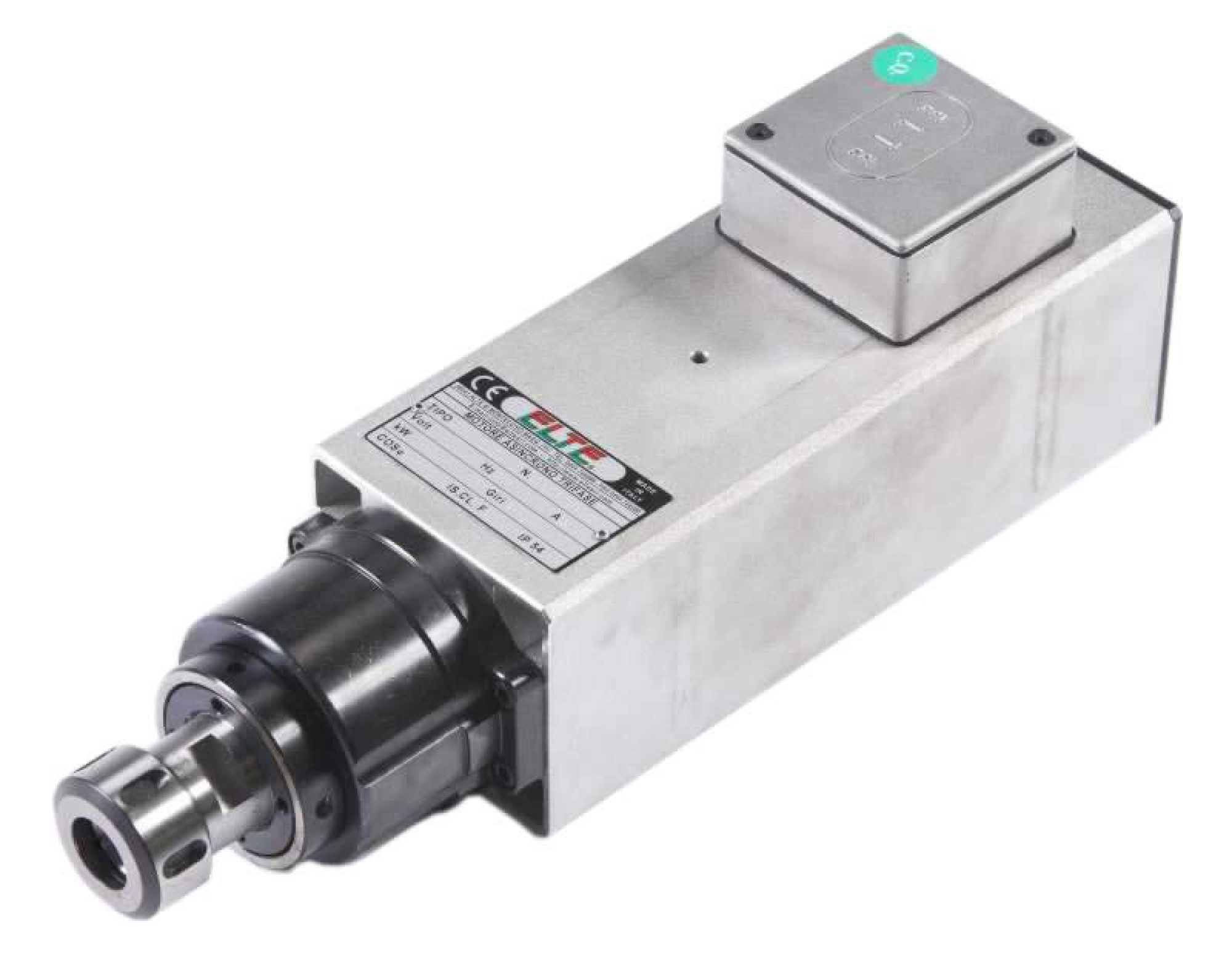

HF-Spindle Elte 1.1 kW | ER 25 | 24.000 rpm | 230 V | TMPE3 9/2 BIG
Big version with ER 25
This 3 Phases-asynchron-motor impresses by its robust technics, which is mainly applied in the wood and plastics processing. Fast and clean working with low noise development is another advantage of this precision device.
The 1.1 kW milling spindle is ideal for CNC milling machines, plotters or engraving machines.
Technical data:
Performance: 1.1 kW
rpm: 24.000 1/min
Voltage: 230 V
Weight: 5.7 kg
Collet: ER 25
Scope of supply:
1 x Spindle
1 x Clamp Nut
Required accessories (not included):
Technical DrawingManufacturer: | Responsible person: |
| Safety instructions: | ||
 | 1. | Always read and observe the safety instructions and warnings in the available documents. |
| 2. | The installation, commissioning and operation require special knowledge of machines and their proper operation, as well as basic knowledge of electrical engineering. The instructions - including those in the descriptions - must be followed carefully. | |
| 3. | The location where machines are operated must ensure that unauthorized persons - especially children - do not have access without adequate supervision. | |
| 4. | The use of kits / components usually requires additional measures and additions. | |
